CISCO Part #/MPN: WS-X4013-10GE
DiscTech Item #: CIS-WS-X4013-10GE-BN-FW
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:Factory Warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, SFP
Electrical Interface: Ethernet 10Gigabit - 10Gbps
Bays/Ports/Slots: 2
Color: Gray

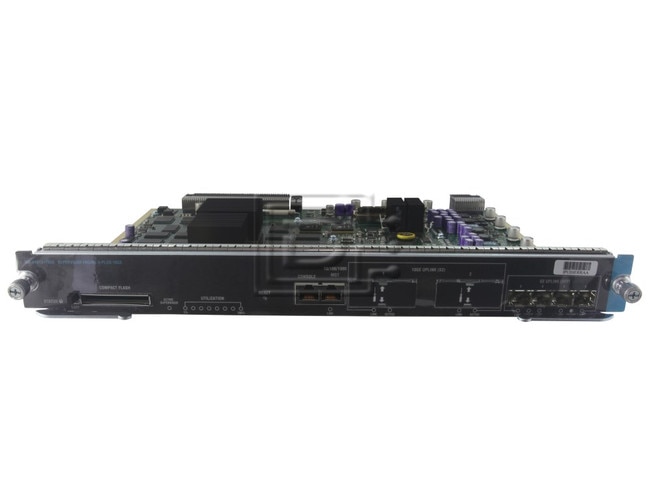

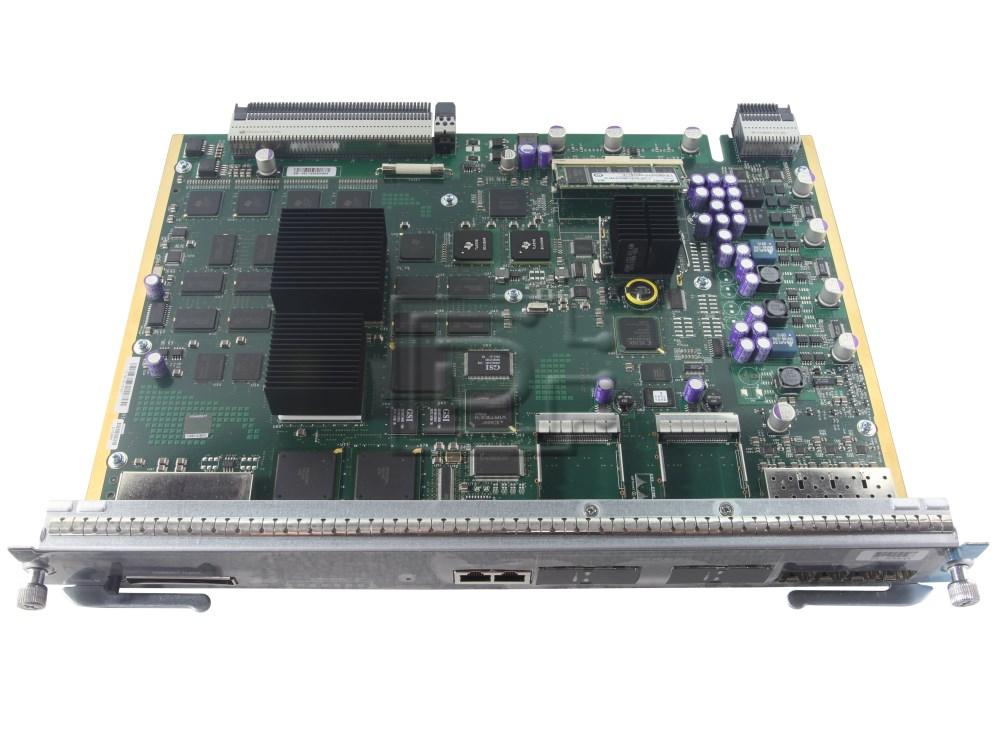

Cisco WS-X4013+10GE Catalyst 4500 Series Supervisor Engine II-Plus-10GE Enterprise LAN Access Ethernet Switch - Brand New
Cisco WS-X4013+10GE Catalyst 4500 Series Supervisor Engine II-Plus-10GE Enterprise LAN Access Ethernet Switch - Brand New
The Cisco Catalyst 4500 Series Supervisor Engine II-Plus meets the needs of value-conscious customers seeking a flexible and scalable LAN solution. Optimized for end-user connectivity for medium-sized enterprises, small enterprises, or branch offices, this supervisor engine provides the resiliency and control for converged data, voice, and video networks.
The Cisco Catalyst 4500 Series Supervisor Engine II-Plus delivers nonblocking Layer 2, 3, and 4 intelligent services to power-resilient, multilayer-switching solutions for converged data, voice, and video networks. It allows customers to deploy networkwide intelligent services, such as advanced quality of service (QoS), comprehensive security, and management with optimal control and resiliency.
Compatible with the Cisco Catalyst 4503, Cisco Catalyst 4506, Cisco Catalyst 4507R, Cisco Catalyst 4503-E, Cisco Catalyst 4506-E, and Cisco Catalyst 4507R-E/4507R+E chassis, and with Cisco Catalyst 4500 Series classic line cards, the Cisco Catalyst 4500 Series Supervisor Engine II-Plus helps to ensure an extended window of deployment of the modular Cisco Catalyst 4500 Series.
Alt MPN: WS-X4013+10GE
Compatibility:
| Cisco Catalyst 4503 | Cisco Catalyst 4506 | Cisco Catalyst 4507R |
| Cisco Catalyst 4503-E | Cisco Catalyst 4506-E | Cisco Catalyst 4507R-E |
| Cisco Catalyst 4507R+E |
| SPECIFICATIONS | |
|---|---|
| Model Number | WS-X4516+10GE |
| Layer 2-4 Performance | 81 mpps and 108 Gbps |
| Multilayer switching | Basic Layer 2-4 service |
| EIGRP, OSPF, IS-IS, and BGP | No |
| EIGRP Stub | Yes |
| Redundant capable | Yes |
| CPU (MHz) | 667 MHz |
| NetFlow Support | No |
| IP Forwarding Information Base (FIB) entries | 32,000 |
| Chassis Support | Cisco Catalyst 4503, 4506, 4507R, 4503-E, 4506-E, 4507R-E/4507R+E chassis |
| Qos sharing | All ports |
| Broadcase suppression | Hardware |
| Multicast suppression | Hardware |
| 802.1Q-in-801.1Q (QinQ) | In hardware |
| Active redundant supervisor engine uplinks | Two 10-GE uplinks and four 1-GE uplinks |
| Synchronous Dynamic RAM (SDRAM) | 256 MB (512 MB optional upgrade) |
| Onboard Flash memory | 64 MB |
| Active VLANs | 2000 |
| Multicast entries | 8000 |
| Spanning Tree Protocol instances | 1500 |
| Switched Virtual Interfaces (SVIs) | 1000 |
| IGMB snooping | Yes (16,000) |
| Security/QOS hardware entries | 32,000 |
| Policers | 512 egress 512 ingress |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: WS-X4013+10GE
Weight: 2 lb
