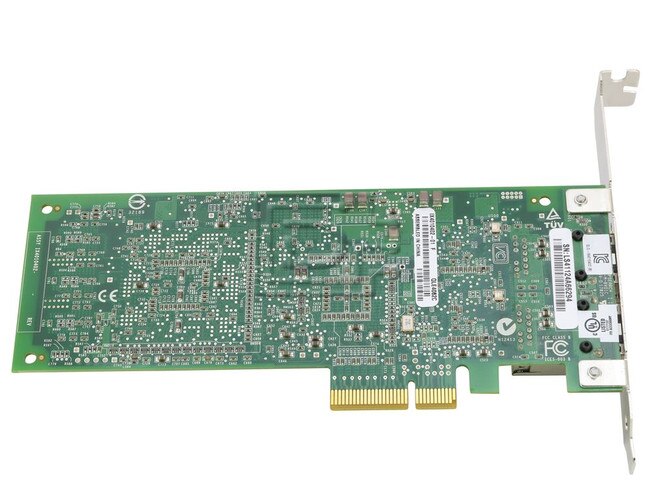

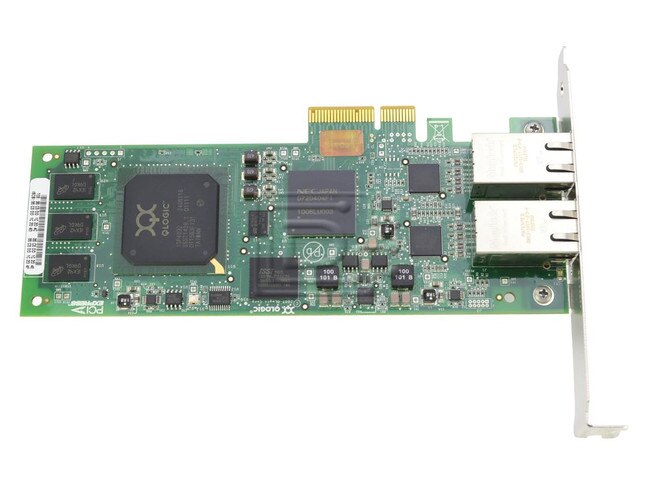

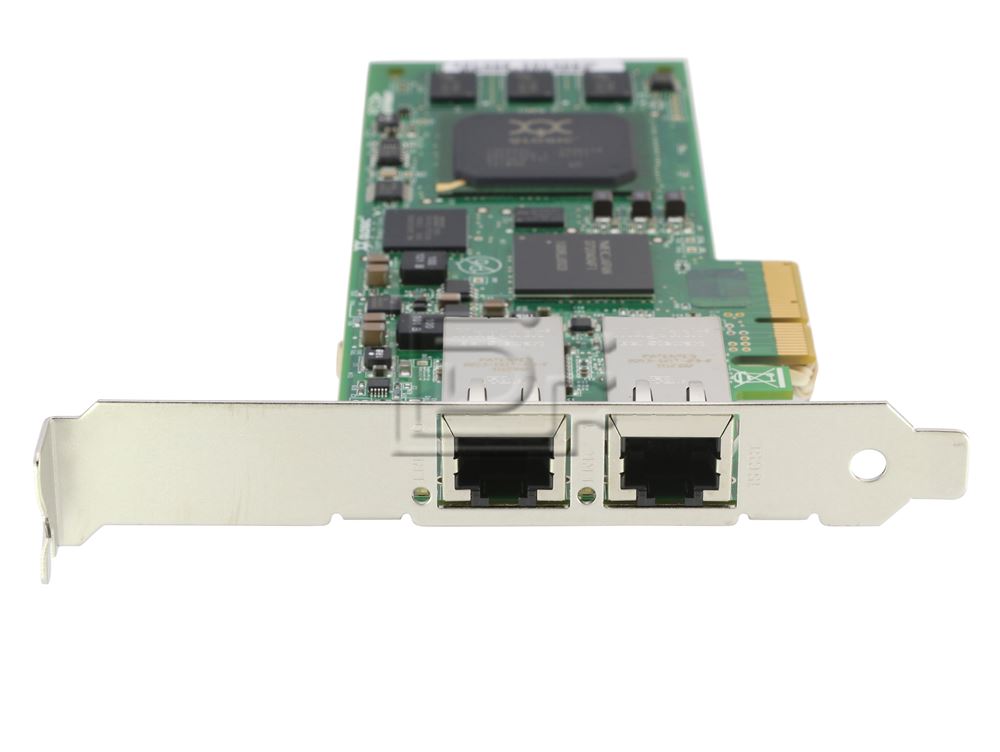

Dell 1KRWN / Qlogic QLE4062C Gigabit Dual Port 1Gbps ISCSI RJ-45 Ethernet PCIe Host Bus Adapter

QLOGIC Part #/MPN: QLE4062C

DiscTech Item #: QLG-QLE4062C-BN-OE-DEL


$99.00
$99.00

Interface Types: Ethernet RJ45, PCIe

Form Factor: Half-Height/Half-Length

Electrical Interface: Ethernet Gigabit - 1Gbps

Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

Dell 1KRWN / Qlogic QLE4062C Gigabit Dual Port 1Gbps ISCSI RJ-45 Ethernet PCI Express Host Bus Adapter - Brand New

The QLE2462 is the industry’s first, true enterprise class, 4-Gbps to PCI Express x4 HBA. The QLE2462 not only delivers unprecedented levels of performance and availability, but also intelligent networking features specific to enterprise class data centers.

Enterprise Class Features.
The QLE2462 HBA is the highest performing and most reliable HBA in the industry. It delivers unmatched performance by leveraging a single ASIC design, combining a unique hardware architecture to deliver over 300,000 IOPS, nearly 1.6 GBps throughput, and support for PCI Express x4 bus speeds. More importantly, the QLE2462 HBA provides new intelligent storage networking features that redefine the enterprise class HBA, providing increased data protection, advanced frame routing, and enterprise wide management capabilities.

Simplified Setup.
Point-and-click installation and configuration wizards simplify the HBA setup process. Storage administrators can quickly deploy HBAs across a SAN using standard HBA management tools and device utilities. The QLE2462 is fully compatible with SNIA HBA API and SMI-S, thereby allowing administrators to manage QLogic HBAs using third-party software applications.

Comprehensive Operating System (OS) Support.
QLogic offers the broadest range of support for all major operating systems to ensure OS and hardware server compatibility. Drivers are fully tested and available for all major operating systems and hardware server platforms. A single driver strategy per OS allows storage administrators to easily deploy and manage HBAs in heterogeneous SAN configurations.

Guaranteed Interoperability.
Storage partner certifications, combined with agency and regulatory testing, ensures all products meet world compliance hardware and software specifications. All HBAs are tested extensively with third-party hardware, along with multiple software applications, to ensure best-in-class SAN interoperability and compatibility. You can be confident purchasing QLogic HBAs to meet your FC storage networking needs.

Investment Protection.
For over 15 years, QLogic has been a technological leader with products that address the current needs of customers, yet provide strong investment protection to support emerging technologies and standards. QLogic stands alone in the industry with its product portfolio depth and experience in successfully delivering technological solutions that address the needs of today and tomorrow.


Alt DPN : DH226 0DH226


Compatibility:

This card will work with servers and high end workstations with an available PCI-Express x4 slot.

Supported Operating Systems*
Operating systems
• Windows 2000
• Windows Server® 2003, 2008, 2008 R2
• Windows Vista™ (Business and Enterprise)
• Windows XP Pro, XP Pro x64
• Novell® SLES 9.x, 10.x, 11.x
• Citrix XenServer 4.x, 5.x
• Oracle® OEL 4, 5
• Red Hat® RHEL 4.x, 5.x
• Solaris® 9, 10
• VMware® ESX/ESXi 3.5.x, 4.x

Bus interface • 2.5 GHz PCI Express x4 Hardware platforms • IA32 (x86) • EM64T • AMD® Opteron™ 64 • Sun™ SPARC® Compliance • PCI Express Base Specification rev. 1.0a, PCI Express Card Electromechanical Specification rev. 1.0, PCI Bus Power Management Interface Specification revision. 1.1 iSCSI, TCP/IP, and Ethernet Specifications Data rate • 100/1000Mbps Throughput • 1Gbps full-duplex line rate Topology • Any Ethernet network iSCSI • RFC 3347 – iSCSI Requirements and Design Considerations – CHAP – Internet simple name service (iSNS) TCP/IP • Complete state-based TCP/IP off-load, RFC791 • Internet Protocol Specification (IPv4), RFC793 • Transmission Control Protocol (TCP) Specification, RFC1122 • Requirements for Internet Hosts–Communication Layers, RFC1323 • TCP Extensions for High Performance, RFC2581 • TCP Congestion Control, RFC2460 • IPv6 Ethernet • 1,500 bytes or 9,000 bytes (jumbo) Physical Specifications Ports • QLE4060C: One • QLE4062C: Two Connections • RJ45 for copper connector • Form factor • Low-profile: 16.93 cm × 5.15 cm (6.7 in. × 2.5 in.) Bracket size • Standard: 1.84 cm × 12.08 cm (.73 in. × 4.76 in.) • Low-profile: 1.84 cm × 8.01 cm (.73 in. × 3.15 in.) Environment and Equipment Specifications Temperature • Operating: 0°C/32°F to 55°C/131°F • Storage: –20°C/–4°F to 70°C/158°F Airflow • 100 FPM (0.5m/S) Humidity • Relative (non-condensing): 10% to 90% • Storage: 5% to 95% Power dissipation • QLE4060C: 9.6W (maximum) • QLE4062C: 10.7W (maximum) RoHS compliant • RoHS 6 Cable distances • 100 meters, category 5e/6 UTP Tools and Utilities Management tools • SANsurfer® iSCSI Host Bus Adapter Manager Device utilities • CLI • Utilities for flashing BIOS and firmware Boot support • BIOS • FCode • APIs • MS WMI Operating systems • Windows 2000 • Windows Server® 2003, 2008, 2008 R2 • Windows Vista™ (Business and Enterprise) • Windows XP Pro, XP Pro x64 • Novell® SLES 9.x, 10.x, 11.x • Citrix XenServer 4.x, 5.x • Oracle® OEL 4, 5 • Red Hat® RHEL 4.x, 5.x • Solaris® 9, 10 • VMware® ESX/ESXi 3.5.x, 4.x
Click here to view the manufacturer's item description/brochure

Alternate MPNs: 1KRWN 01KRWN

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
