PROMISE Part #/MPN: J630SDQS4
DiscTech Item #: PRO-J630SDQS4-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 64TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088
Form Factor: 3.5inx1.0in LFF Hard Drive
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
Bays/Ports/Slots: 16
U Height: 3U
Wattage/VA: 580W
Voltage: 110-240V Multi

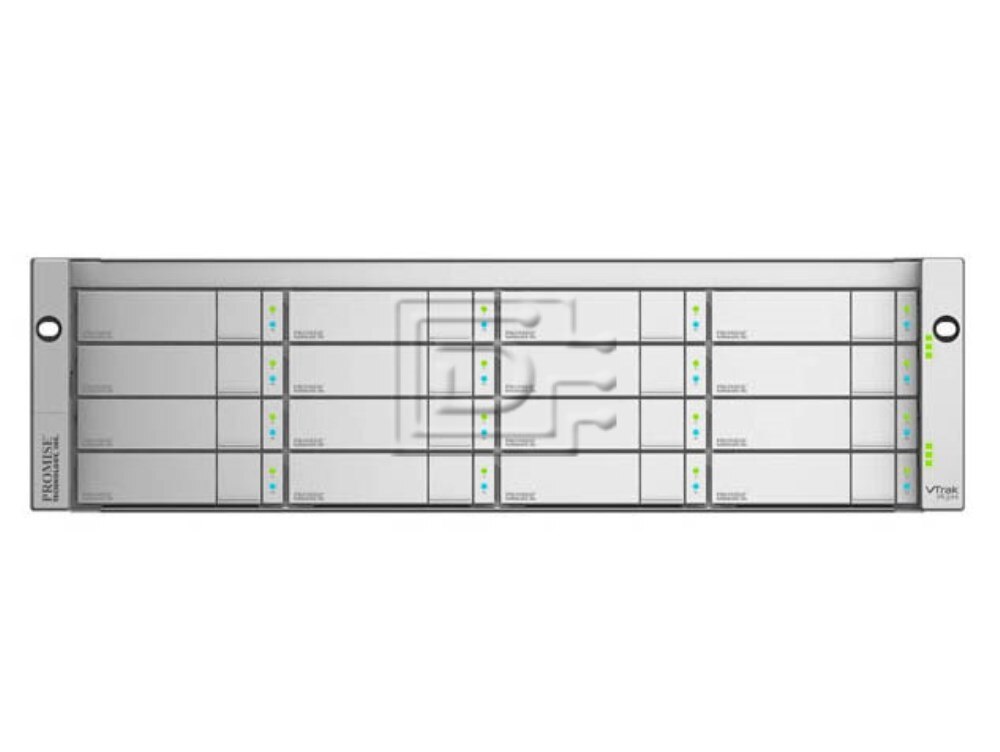

Promise Technology VTrak J630SDQS4 J630s Series 3U 64TB SAS JBOD DAS Expansion Chassis Storage Array w/ HDDs - Brand New
Promise Technology VTrak J630SDQS4 J630s Series 3U 64TB (16x4TB) SAS Dual-Controller JBOD Direct Attached Storage Expansion Chassis Storage Array w/ HDDs - Brand New
This storage array includes 16x 4TB 7200 RPM NL-SAS hard drives.
Features
- 3U/16 form factor featuring hot-swappable drive bays in SBB 2.0 package
- Supports 6G and 3G SAS and SATA drives simultaneously
- Dual active/active SAS JBOD I/O modules
- Provides up to 90% power efficiency
- Multi-ported, multi-lane 6G mini SAS (4x) ports provide large bandwidth capabilities
- Redundant, hot-swappable Field Replaceable Units (FRUs)
- SES-2 compliant enclosure management
- Compatible with leading SAS/SATA drives, HBAs and RAID controllers
Compatibility:
Specifcations | |
---|---|
Form Factor | 3U 16-bay |
Model # Dual Controller | Dual I/O (J630sD) |
Drives Included | 16x 4TB 7200 RPM NL-SAS hard drives |
Drive Support | Up to 16 3.5”/2.5” HDDs or SSDs (Please refer to compatibility list at www.promise.com) NL-SAS 7200 RPM: 6 Gbps, 3Gbps / SATA: 6Gbps, 3Gbps and 1.5Gbps / SSD |

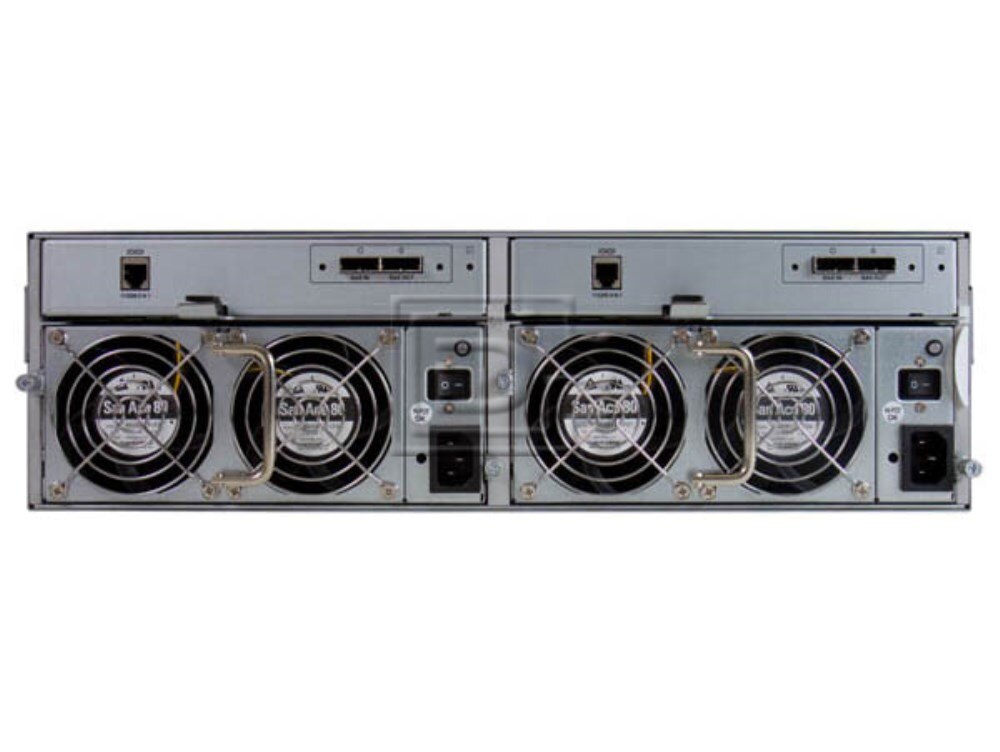

External I/O Ports (per controller) | Each SBB 2.0 I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs |
I/O Module Features | Self-configuring expander supports full SAS domain topology management SMP – SAS Management Protocol In-band access to Expander and PHY information Statistic counters and performance monitors SES EM – SES Enclosure Management (ANSI T10 SES 2 Compliant) SCSI SES command set over virtual SSP device |
Management Interfaces | LED status indicator support for drives, FRU and enclosure environmentals In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware Full subsystem management CLI through out-of-band RS232 serial port |
Enclosure Management Protocols | SES over in-band SAS |
Voltage | 100-240 Vac Auto-Ranging |
Current (Maximum) | 15A @ 110 VAC; 6A @ 240 VAC |
Power Conversion Efficiency | >80% @ 110V (>20% load), >80% @ 240V (>20% load) |
Temperature | Operational: 5° to 40°C Non-Operational: -40° to 60°C |
Humidity | Operational: 10% to 90% (Non-Condensing) Non-Operational: 5% to 95% (Non-Condensing) |
Acoustic Noise Levels | 55 dB (Typical), 65 dB (Maximum) |
Shock | Operational: 5G, 11ms duration Non-Operational: 10G, 11ms duration |
Vibration | Operational: 0.3G, 5 to 500 Hz Non-Operational: 1G, 5 to 500 Hz |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 91 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
