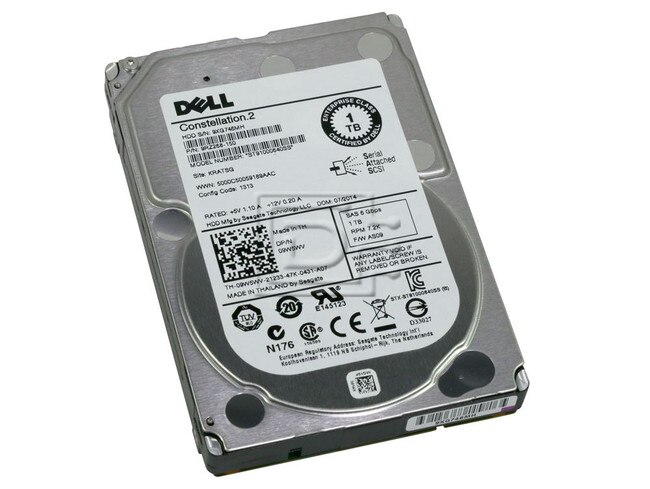

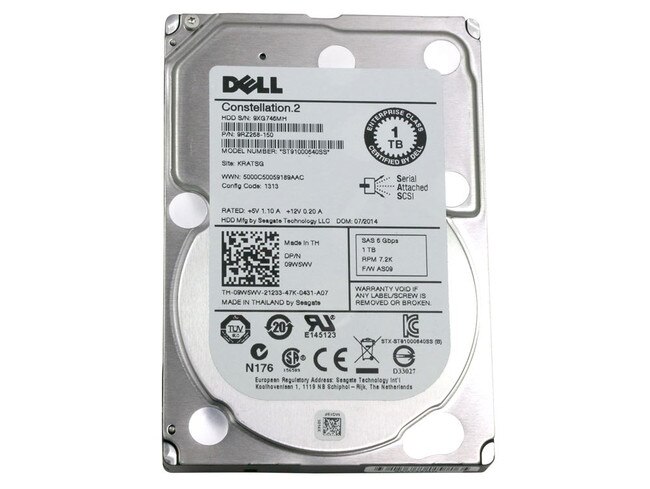

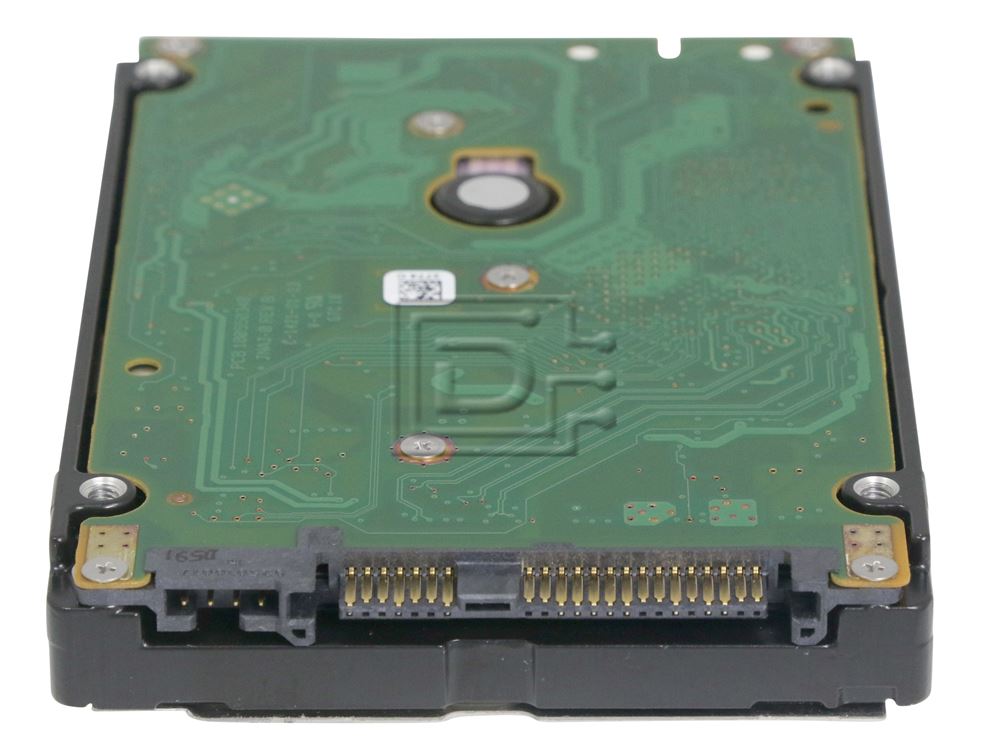

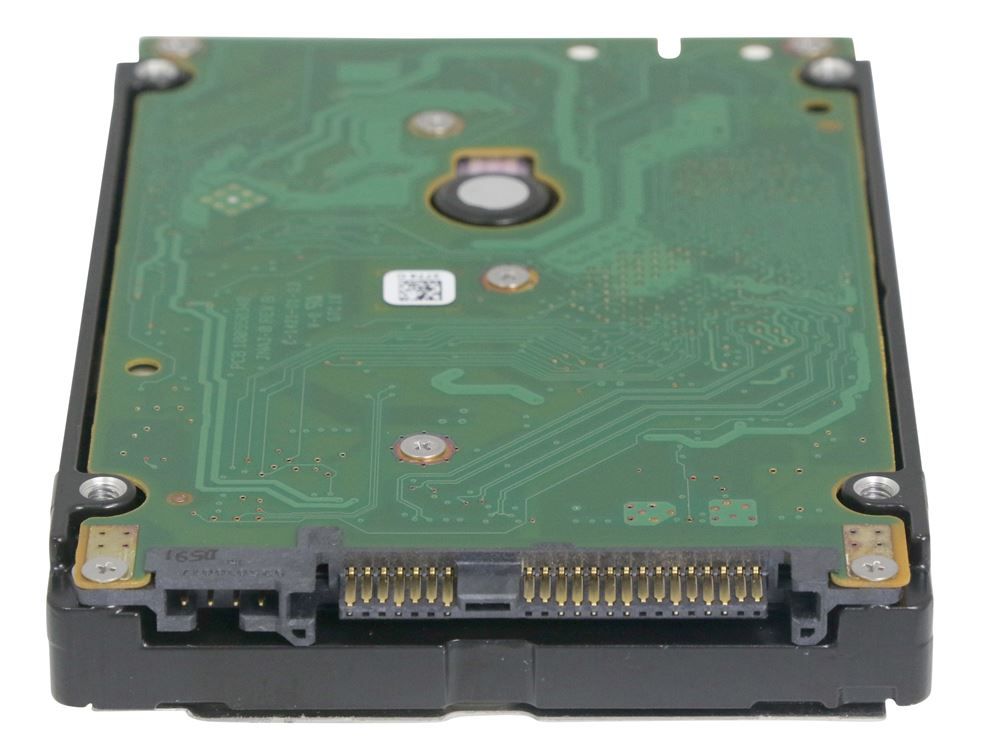

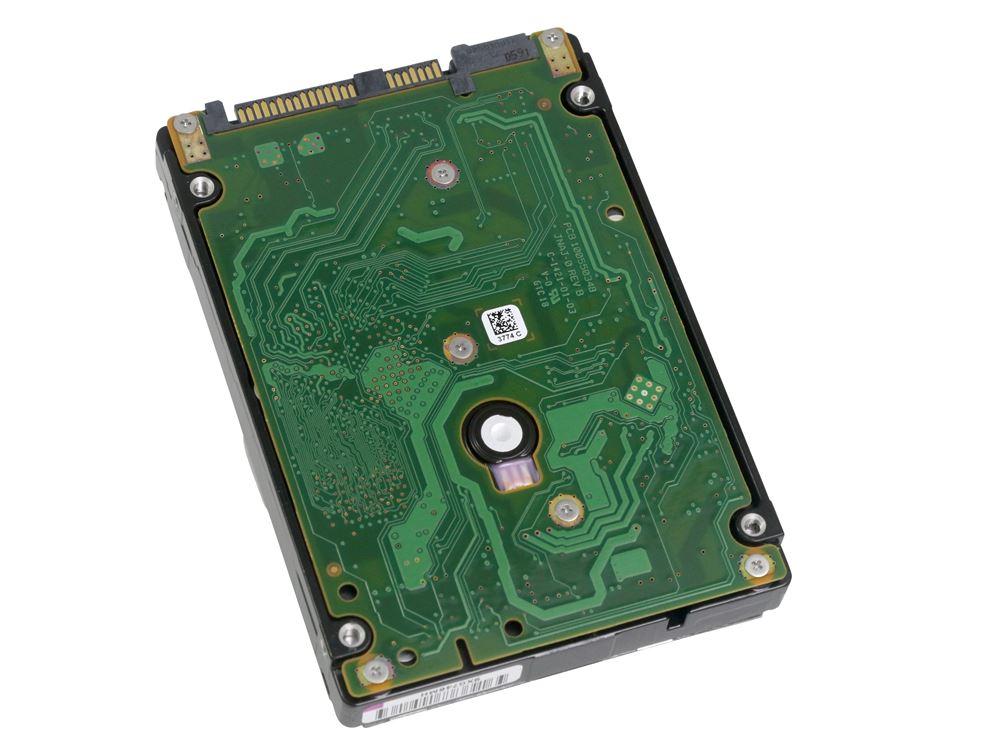

Seagate Constellation ST91000640SS Serial SCSI / SAS Hard Disk Drive

(0) No Reviews Yet

Seagate Part #/MPN: ST91000640SS

DiscTech Item #: SGT-ST91000640SS-BN-OE-DEL


$206.00
$206.00

Enterprise Grade

Capacity: 1TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 115

Average Seek Time: 7.5 / 8.5

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Seagate Constellation.2 ST91000640SS 1TB / 1000GB 7.2K 6.0Gbps SFF Serial SCSI / SAS Hard Drive - Brand New OEM

Overview

Seagate® Constellation.2™ drives are the most energy efficient enterprise drives on the market. Designed for enterprise robustness, Constellation.2 is available in capacities up to 1TB and offers reliable storage for high capacity servers and storage arrays in a minimal footprint.

Key Features and Benefits

    * Industry’s first 2.5-inch 1TB capacity-optimized drive for dense, space-constrained data centers allows you to store twice as much data in the same footprint.

    * Build highly efficient bulk storage solutions while lowering your power consumption costs

    * Designed for robust 24x7 operation with a 1.4M hour mean-time-between-failure (MTBF) rating

    * Best-in-class rotational vibration tolerance ensures unrivaled performance in high spindle-density applications, and multi-drive firmware maximizes system availability

    * Choose from 6Gb/s SAS with improved data integrity, scalability and fastest data access or SATA 6Gb/s for economical 7200-RPM performance

    * TCG- compliant, Self-Encrypting Drive (SED) security option cuts IT drive retirement expenses while securely protecting data*

DPN: 9RZ268-080 9RZ268-150 09W5WV 9W5WV TH-09W5WV-21233-18H-01LS-A02 VT8NC 0VT8NC 0VXTPX VXTPX 9RZ268-157


Compatibility:

This drive is compatible with any of our SAS drive trays and any of our SAS controllers.

Drive specification

ST91000640SS

Formatted Gbytes (512 bytes/sector)

1000

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (MBps)

600

Cache buffer

64 MB

Interface Type

6.0Gbps SAS

Seek time (read / write) ms

7.5 / 8.5

Sustainted Data Transfer Rate

115MB/s

Dimensions (HxLxW) mm

15 / 100.45 / 70.1

Weight

0.200 kg

Operating Shock (Read)

25G, 2ms

Non-operating Shock

400G, 2ms

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C

Current Requirements 12VDC (Read/Write, Idle)

10.8w / 8.0w


Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9RZ268-080 9RZ268-150 09W5WV 9W5WV TH-09W5WV-21233-18H-01LS-A02 VT8NC 0VT8NC

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
