Dell Part #/MPN: MD1420
DiscTech Item #: DEL-MD1420-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI, SFF-8088
Form Factor: 2.5inx15mm SFF Server Drive
Bays/Ports/Slots: 24
Voltage: 110-240V Multi

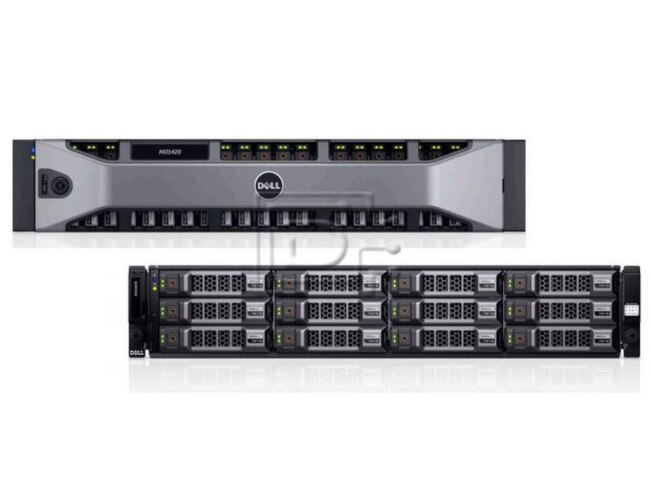

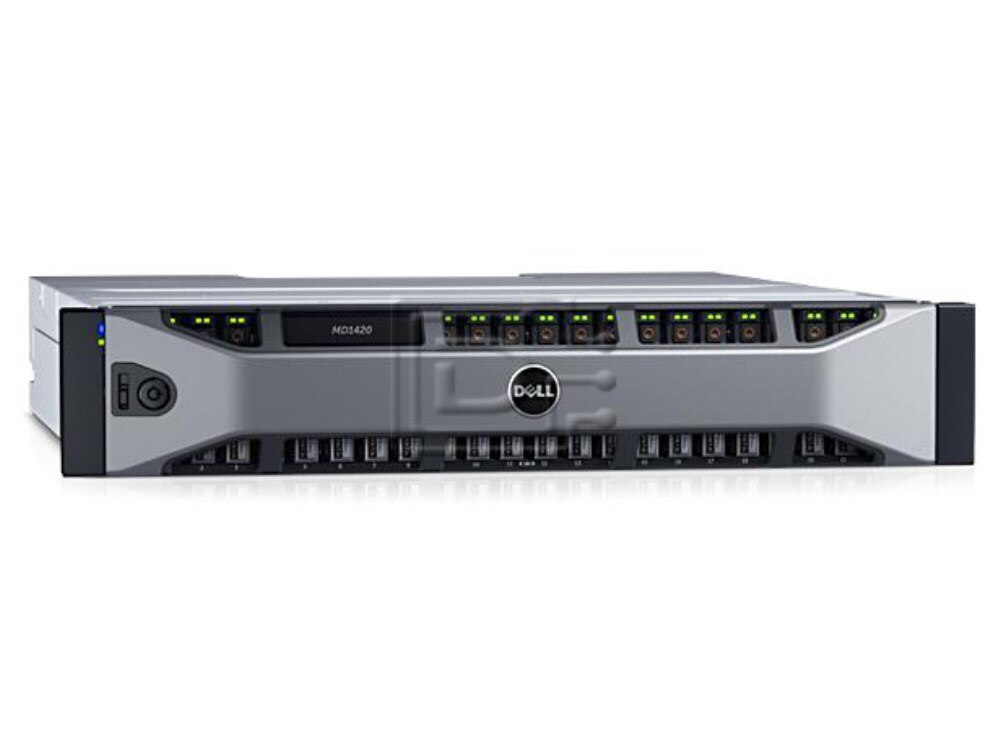

Dell MD1420 SFF 2.5" Hot Swap SAS 24-Bay Storage Array - New Pull
Dell MD1420 SFF 2.5" Hot Swap SAS 24-Bay DAS / Direct Attached Storage Array - New Pull
Expand and accelerate data access
The Dell Storage MD1400 and MD1420 direct-attached storage (DAS) enclosures with 12Gb SAS throughput have been specifically engineered to work with the 13th generation of PowerEdge servers using the newest line of PowerEdge RAID Controller 9 (PERC9) 12Gb SAS cards. Scaling capacity behind innovative next-generation servers enables end-to-end 12Gb solutions with exceptional storage flexibility and IO performance for such applications as:
- High-performance databases
- Streaming digital media
- Storage-intensive applications
Compatibility:
The Dell MD1420 accepts up to twenty four (24) hot swappable 2.5" SFF SAS hard drives and solid state drives.
| Dell Storage MD1420 Technical Specifications | |
|---|---|
| Drives | Up to 24 hot-pluggable 2.5” drives |
| Drive performance and capacities | 2.5” NL-SAS 6Gb HDD (7.2K): 500GB, 1TB 2.5” NL-SAS 12Gb HDD (7.2K): 2TB 2.5” SAS 6Gb HDD (10K): 300GB, 600GB, 1.2TB, 1.8TB 2.5” SAS 6Gb HDD (15K): 300GB, 600GB 2.5” SAS 12Gb SED (15K): 600GB 2.5” SAS 12Gb SSD: 200GB, 400GB, 800GB (WI); 200GB, 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) |
| Maximum capacity per enclosure | Up to 48TB when using 24 x 2TB NL-SAS 2.5” HDDs |
| Expansion capabilities | PERC H830 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure |
| Host connectivity | |
| Unified mode | Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 (4 enclosures per port, single path) Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4 enclosures connected to both ports via redundant path cabling) |
| Enclosure management modules (EMM) and RAID levels | |
| EMM | 2 EMM provide redundant enclosure management capability |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Back-panel connectors per EMM | |
| Connectivity | 4 mini-SAS HD connector for connection to the host or expansion |
| Service management | USB mini-B connector (for factory use only) |
| Power supplies per PSU | |
| Wattage – AC and DC power | AC – 600W; DC – 700W |
| Host heat dissipation | AC – 2047BTU/hr; DC – 2388BTU/hr |
| Input voltage range | 100-240V AC, auto-sensing; 48V DC |
| Frequency range | 50/60Hz |
| Amperage | 8.6A at 100V, 4.3A at 240V |
| Available hard drive power (per slot) | |
| Supported continuous consumption | Up to 1.2A at +5V Up to 0.5A at +12V |
| Physical | |
| Rack support | Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks |
| Height x width x depth | 8.7 cm (3.39”) x 48.2 cm (18.8”) x 54.1 cm (29.1”) |
| Weight | 24.2 kg (53.35 lb) (maximum configuration) 8.8 kg (19.4 lb) (empty) |
| Environmental | |
| Temperature | Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour |
| Relative humidity | Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour Storage: 5% to 95% (non-condensing) |
| Altitude | Operating: -16 to 3048 m (-50 to 10,000 ft) Storage: -16 to 10,600 m (-50 to 35,000 ft) |
Click here to view the manufacturer's item description/brochure
