Toshiba Part #/MPN: AL13SXB600N
DiscTech Item #: TOS-AL13SXB600N-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 600GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB
Compatible Systems: Dell 11th Gen. R710/T610
Dell 990FD / Toshiba AL13SXB600N 600GB 15000 RPM 6.0Gbps SFF SAS HDD - Brand New OEM

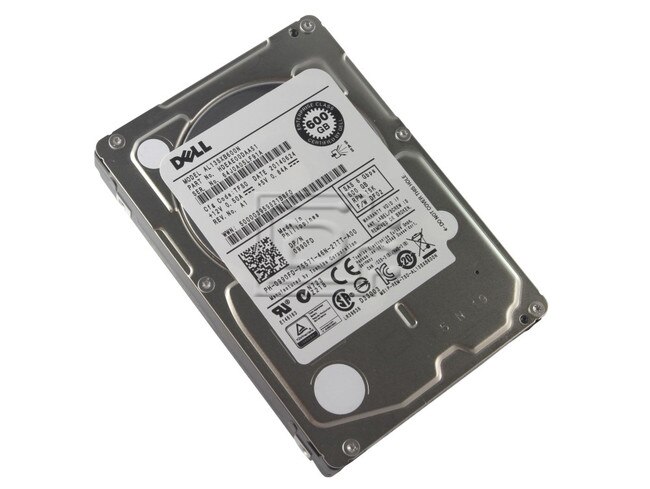

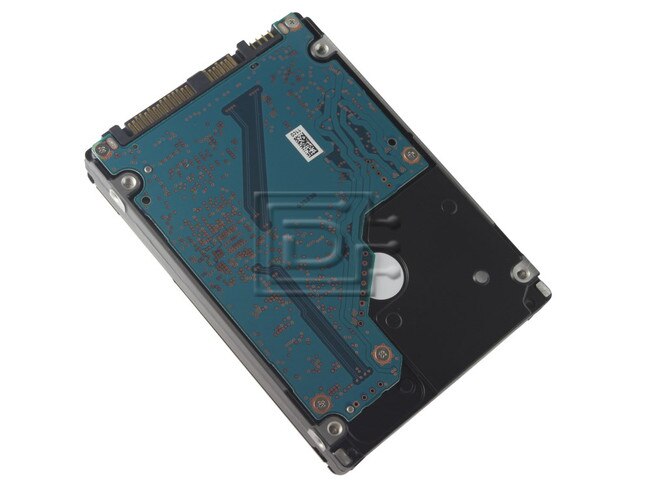

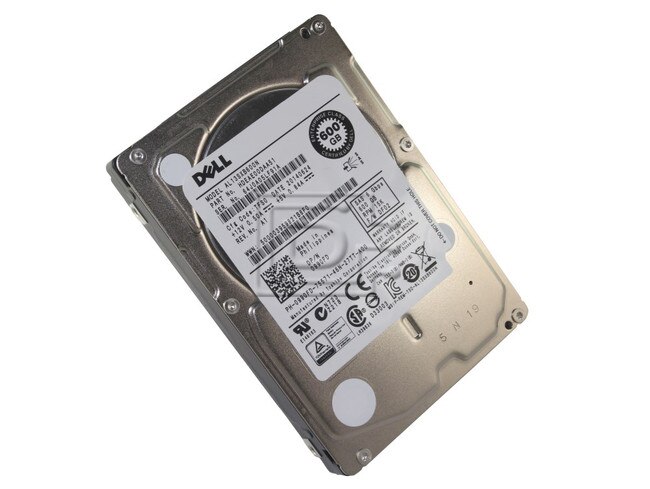

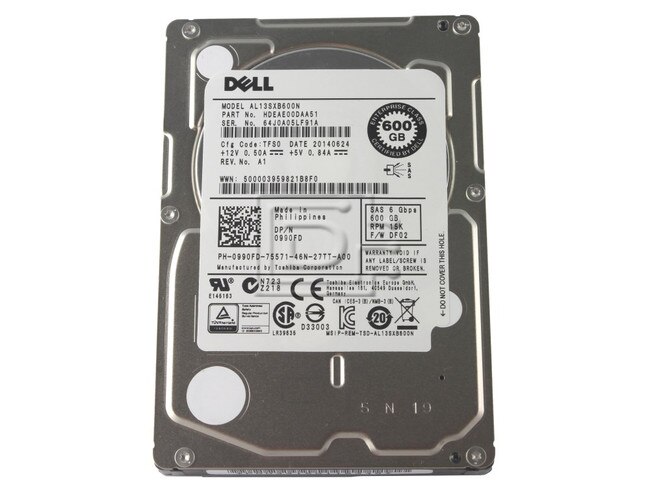

Toshiba AL13SXB600N 600 GB 15,000 RPM 6 Gbps SAS 2.5" Small Form Factor Serial Attached SCSI Hard Disk Drive
Delivers Toshiba's highest Mission Critical disk drive performance and reliability with capacities up to 600GB in a power-saving, low-latency 2.5-inch form-factor.
600, 450 and 300GB models in a space-efficient, power-saving 2.5inch form-factor
15,000rpm performance and industry-leading low latency (2.0ms)
512 native sector length support in all capacities for optimum compatibility
Mission Critical performance and data reliability
ALT MPN: 990FD, 0990FD, HDEAE00DAA51
Compatibility:
This tray is compatible with the Dell Poweredge T310, R310, T320, R320, R415, T410, T420, R420, R510, R515, R520, T620, R610, T610, R620, R710, T710, R720, R720XD R820, M600, M605, M610, M610x,M710, M710HD, R715, R810, R815, M805, M905, M910, R910, M915, M1000e, Dell Powervault: MD1120, MD1220, MD3220i, MD3620i, MD3620f
Drive specification | AL13SXB600N |
Formatted Gbytes | 600 |
Bytes per sector | 512 |
Spindle speed (RPM) | 15,000 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 64 MB |
Interface Type | 6.0Gbps SAS |
Seek time (read / write) ms | 7.5 / 8.5 |
Sustainted Data Transfer Rate | 115MB/s |
Dimensions (HxLxW) mm | 15 / 100.45 / 70.1 |
Weight | 0.200 kg |
Operating Shock (Read) | 25G, 2ms |
Temperature - Operating | 5C -60C |
Temperature - Non-operating | -40C - 70C |
Current Requirements 12VDC (Read/Write, Idle) | 10.8w / 8.0w |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0990FD 990FD HDEAE00DAA51
