EMC Part #/MPN: 105-001-026-00
DiscTech Item #: EMC-105-001-026-00-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:17Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 10TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Encryption/SED Supported
Sector Size: 4Kn
Sustained Throughput: 237/249
Average Seek Time: 8.0/8.6
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 256MB

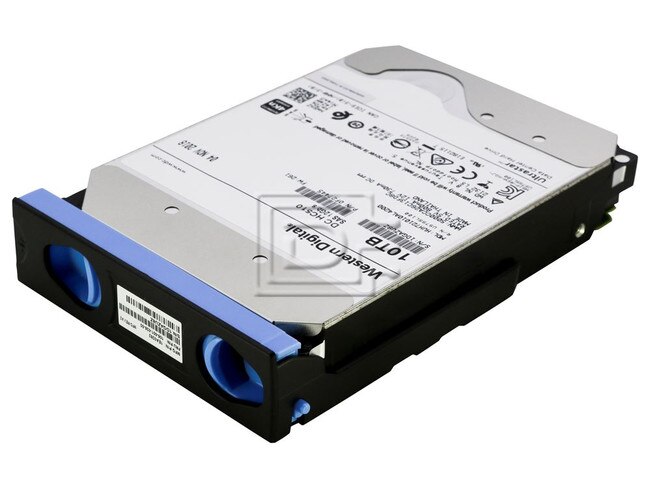

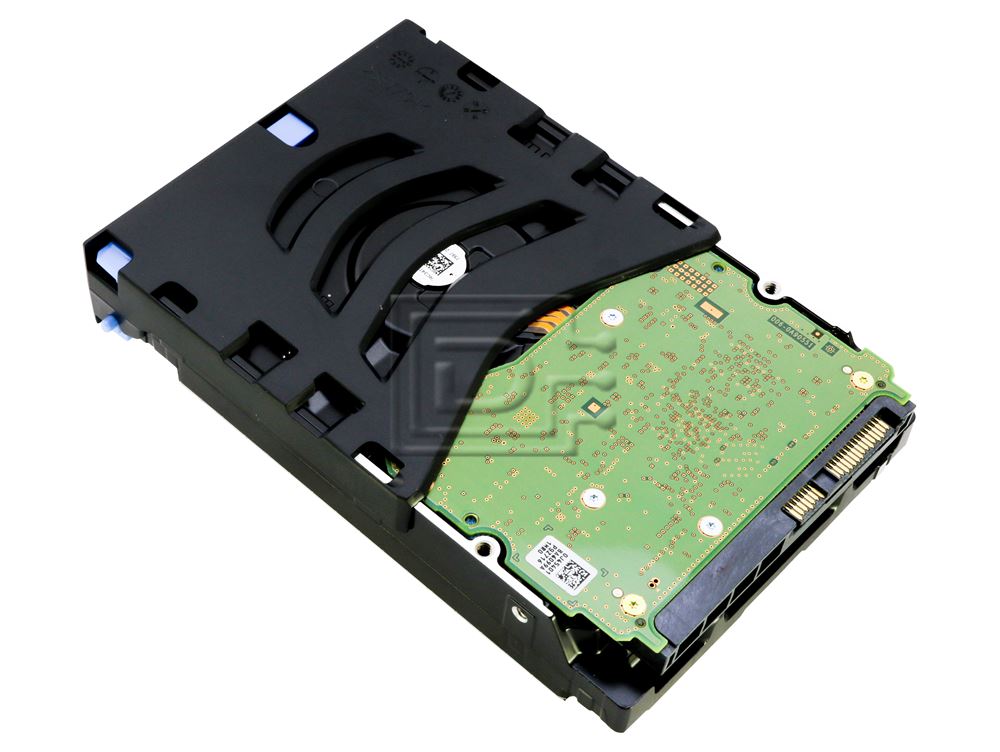

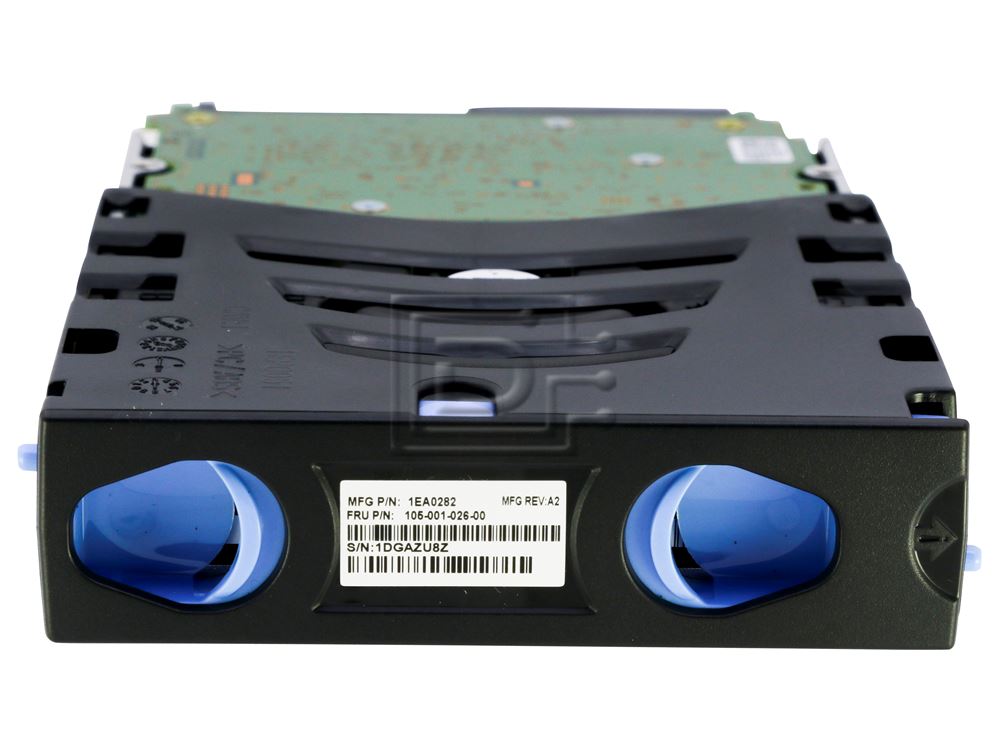

Western Digital Ultrastar DC HC510 HUH721010AL4200 / 0F27445 / EMC 105-001-026-00 10TB 3.5" 12Gbps 7.2K RPM 4Kn ISE SAS Hard Drive w/ tray - Brand New
Western Digital Ultrastar DC HC510 (He10) HUH721010AL4200 / 0F27445 / EMC 105-001-026-00 10TB 3.5" LFF 12Gbps 7.2K RPM 4Kn ISE / Instant Secure Erase SAS HDD / Hard Disk Drive w/ tray - Brand New
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in SAS Drive.
| HGST Ultrastar He10 | |
|---|---|
| Model Number | 0F27445 |
| Alt Model Number | HUH721010AL4200 |
| Configuration | |
| Performance | |
| Reliability | |
| Acoustics | |
| Power | |
| Physical size | |
| Environmental (Operating) | |
| Environmental (Non-Operating) | |
| Data Security Mode | Instant Secure Erase |
| Interface | SAS 12Gb/s |
| Capacity(TB) | 10TB / 10,000GB |
| Format: Sector size(bytes) | >4Kn: 4096, 4112, 4160, 4224 |
| Max. Areal density(Gbits/sq. in.) | 816 |
| Data Buffer(MB) | 256 |
| Rotational Speed(RPM) | 7,200 |
| Latency Average(ms) | 4.16 |
| Interface transfer rate(MB/s, max) | 1200 |
| Sustained Transfer Rate | |
| Seek Time(read/write, ms, typical) | 8.0/8.6 |
| Error rate(non-recoverable, bits read) | 1 in 10^15 |
| Load/Unload cycles(at 40ºC) | 600,000 |
| Availability(hrs/day x days/wk) | 24 x 7 |
| MTBF(M hours) | 2.5 |
| Annualized Failure Rate(AFR) | 0.35% |
| Idle (Bels, typical) | 2.0/3.6 |
| Requirement | +5 VDC, +12VDC |
| Operating | 9.5 |
| Idle(W) | 5.8 |
Power consumption efficiency at Idle (W/TB)
|
|
| z-height (mm) | |
| Dimensions(width x depth, mm) | 101.6(+/-0.25) x 147 |
| Weight (g, max) | 660 |
| Ambient temperature | 5º to 60º C |
| Shock(half-sine wave 2 ms, G) | 70 |
| Vibration(G RMS 5 to 500 Hz) | 0.67 (XYZ) |
| Ambient temperature | -40º to 70º C |
| Shock(half-sine wave, G) | 300 (2ms) / 150 (11ms) |
| Random vibration(G RMS 2 to 200 Hz) | 1.04 (XYZ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HUH721010AL4200 0F27445
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
