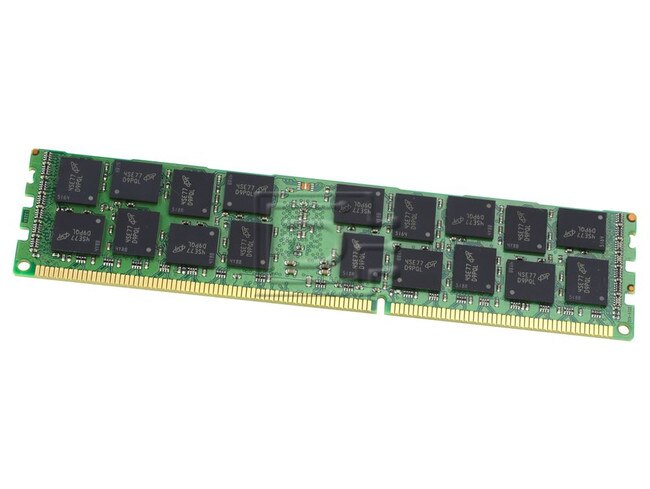

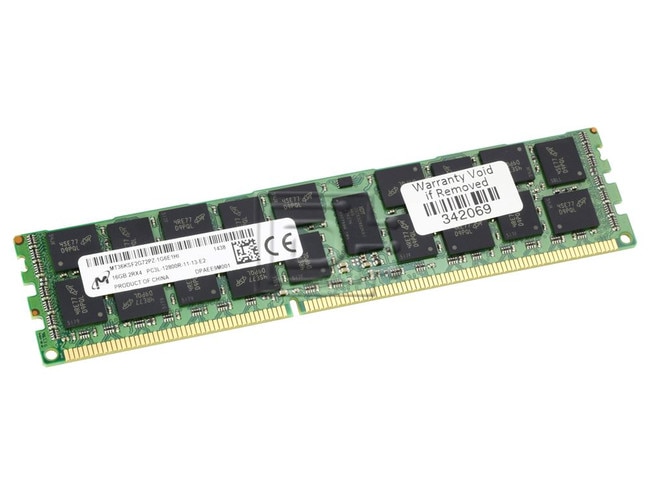

16GB DDR3 PC3-12800 Registered ECC 240pin RAM Memory Module
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | DDR3 DIMM 240pin |
| Form Factor: | DDR3 RDIMM |
| Electrical Interface: | PC3-12800 |
| RAM: | 16GB |
| Voltage: | 1.35V |
Description
16GB DDR3 PC3-12800 Registered ECC 240pin RAM Memory Module - Brand New
16GB DDR3 PC3-12800 Registered ECC 240pin RAM Memory Module - Brand New
**Includes 1x 16GB RAM Module**
DDR3 240-pin DIMM
Approximately 5.25 in. by 1.18 in. (133.35 mm by 30 mm)
Major Manufacturer 240-pin DIMMs are used in DDR3 memory for desktop computers. DDR3 is the latest generation of memory with an improved architecture that allows it to transmit data more quickly.
A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board. The pins on the front and back of a DIMM are not connected to each other.
Each 240-pin DIMM provides a 64-bit data path (72-bit for ECC or registered or Fully Buffered modules). (The Ballistix™ and Ballistix Tracer™ high-performance memory do not come in 72-bit or registered modules.) Standard DDR3 240-pin DIMMs are currently available in PC3-8500 (DDR3 1066MHz) and PC3-10600 (DDR3 1333MHz) speeds. Additional speeds will be added as the technology becomes available.
To use DDR3 memory, your system motherboard must have 240-pin DIMM slots and a DDR3-enabled chipset. This is because a DDR3 SDRAM DIMM will not fit into a standard DDR2 DIMM socket or a DDR DIMM socket.
The number of black components on a 240-pin DIMM can vary, but it always has 120 pins on the front and 120 pins on the back, for a total of 240. 240-pin DIMMs are approximately 5.25 inches long and 1.18 inches high, though the heights can vary. While 240-pin DDR3 DIMMS, 240-pin DDR2 DIMMs, 184-pin DDR DIMMs, and 168-pin DIMMs are approximately the same size, 240-pin DIMMs and 184-pin DIMMs have only one notch within the row of pins.
Compatible to SNP20D6FC/16G / A6994465
Compatibility:
This memory module is compatible with servers supporting PC3 Fully Buffered ECC memory including...
PowerEdge C6220
PowerEdge C8220
PowerEdge R420
PowerEdge T420
PowerEdge M620
PowerEdge M820
PowerEdge R620
PowerEdge R720
PowerEdge R720XD
PowerEdge R820
PowerEdge T320
PowerEdge T620
PowerEdge R410
PowerEdge T410
PowerEdge R510
PowerEdge R610
PowerEdge T610
PowerEdge R710
PowerEdge T710
PowerEdge R810
PowerEdge R910
Specifications
| SPECIFICATIONS | |
|---|---|
| Model Number | RAM-RDIMM-PC312800-ECC-16GB-BN-OE |
| CPU SPECIFICATIONS | |
| Brand | Major Mfgr |
| Form Factor | RDIMM |
| Capacity | 16GB |
| Specs | |
| ECC | ECC |
| Kit Qty | 2 |
| Speed | 1600 MT/s |
| Pins | 240 |
| Voltage | 1.35V |
| DIMM Type | Registered |
| Component Configuration | x4 based |
Alternate MPNs: M393B2G70QH0 M393B2G70BH0 SNP20D6FC/16G A6994465
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
