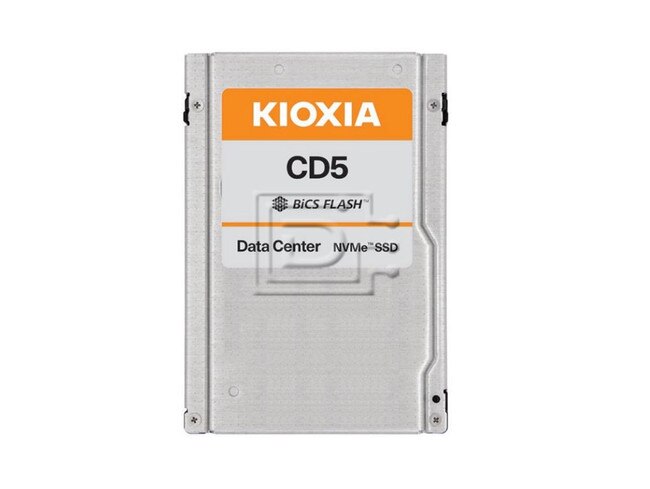

960GB NVME U.2 SSD Kioxia KCD51LUG960G CD5 Series PCIe Gen3 x4 2.5in Enterprise Solid State Drive
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:94Need more?Stock Levels
We don’t track exact quantities on this item, but it is usually in stock (95% of the time).
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 960GB |
| Speed: | Solid State |
| Interface Types: | NVMe U.2 |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | PCIe 3.0 16GBps |
Description
960GB NVME U.2 SSD Kioxia KCD51LUG960G CD5 Series PCIe Gen3 x4 2.5in Enterprise Solid State Drive - Brand New
960GB NVME U.2 SSD Kioxia KCD51LUG960G CD5 Series PCIe Gen3 x4 2.5in Enterprise Solid State Drive - Brand New
CD5 SERIES - DATA CENTER NVMe™ SSD
MAIN SPECIFICATIONS
The CD5 Series is a read-intensive data center NVMe™ SSD that is optimized to support broad range of scale-out and cloud applications that include Big Data/IoT, Online Transaction Processing, and Virtualization. CD5 SSDs, with a PCIeⓇ Gen3x4 lane interface, deliver consistent performance up to 550K IOPS (random read) and 50K IOPS (random write), with active power consumption of 11-13W.
Featuring Toshiba Memory Corporation’s 64-layer BiCS FLASH™ 3D TLC memory, CD5 SSDs deliver <1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 7.68TB in a 2.5 inch form factor, making them suited for hyperscale data center applications.
KEY FEATURES
- PCIeⓇ Gen3 x4 lane interface with single port support
- NVMeTM Rev. 1.3a compliant
- Capacities from 960GB to 7.68TB
- Up to 550K random read IOPS (single port (1x4) mode)
- Low power consumption of 11-13W active power
- 2.5 inch small form factor, 15mm Z-Height
- Power loss protection
- End-to-end data protection
- Sanitize Instant Erase (SIE) option *Note 1,4
- Self-encrypting drive (SED) option *Note 2,4
- Self-encrypting drive (SED), FIPS 140-2 option *Note 2,3,4
- 5-year limited warranty
APPLICATIONS
- Hyperscale
- IoT and Big data analytics
- Online transaction processing (OLTP) (transactional and relational databases)
- Virtualized environments
- Streaming media (Content delivery networks(CDN))
Compatibility
This drive is compatible with servers and arrays that accept 960GB 2.5” 15mm U.2 SFF PCIe NVMe drives
Equivalent to the following Kioxia NVME U.2 SSD:
- KCD5XLUG960G
- KCD5DLUG960G
- KCD5FLUG960G
Specifications
| Toshiba Model Number | KCD51LUG960G |
|---|---|
| Product Specification | |
| Capacity | 960GB |
| Interface | PCIe U.2 NVMe 3.0 x4 |
| Sequential Read | 3140 MB/s |
| Sequential Write | 880 MB/s |
| Random Read (100% Span) | 305000 IOPS |
| Random Write (100% Span) | 20000 IOPS |
| Power - Active | 11W |
| Weight (g/lb) | 130g |
| Mean Time Between Failures (MTBF) | 2,500,00 Hours |
| Form Factor | 2.5" SFF |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
