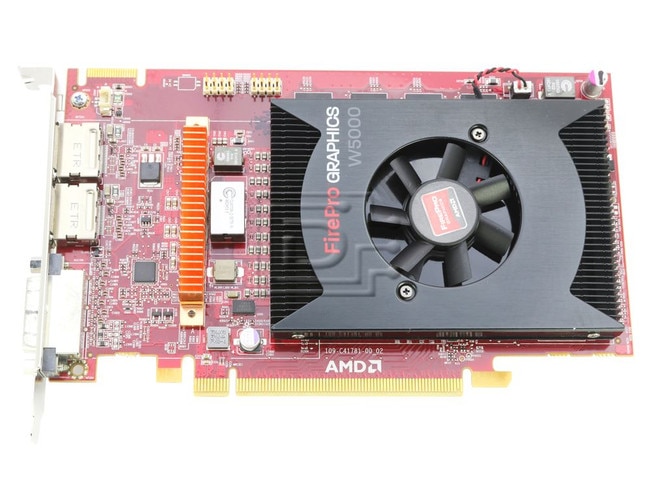

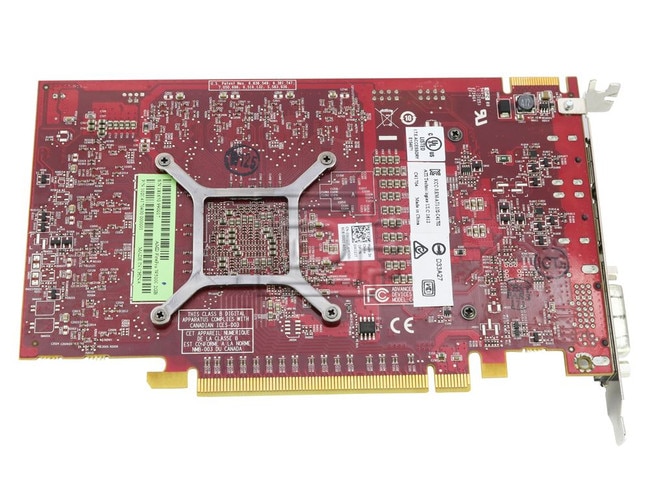

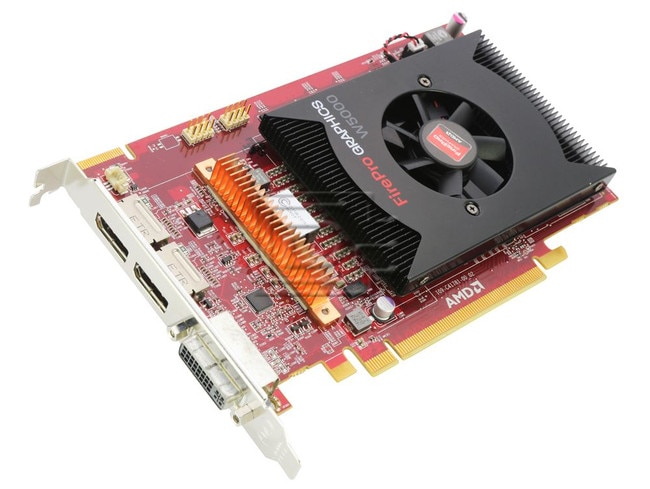

AMD FirePro W5000 102C4170400 / Dell WJ2JT 2GB GDDR5 PCIe Video Card GPU

AMD Part #/MPN: W5000

DiscTech Item #: AMD-W5000-NP-OE-DEL

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: PCIe, DVI-I, DisplayPort

Electrical Interface: GDDR5

On-Board Cache: 2GB

AMD FirePro W5000 102C4170400 / Dell WJ2JT 2GB GDDR5 PCIe Graphics Displayport / DVI Video Card GPU - New Pull

AMD FirePro W5000 102C4170400 / Dell WJ2JT 2GB GDDR5 PCIe Graphics Displayport / DVI Video Card GPU - New Pull

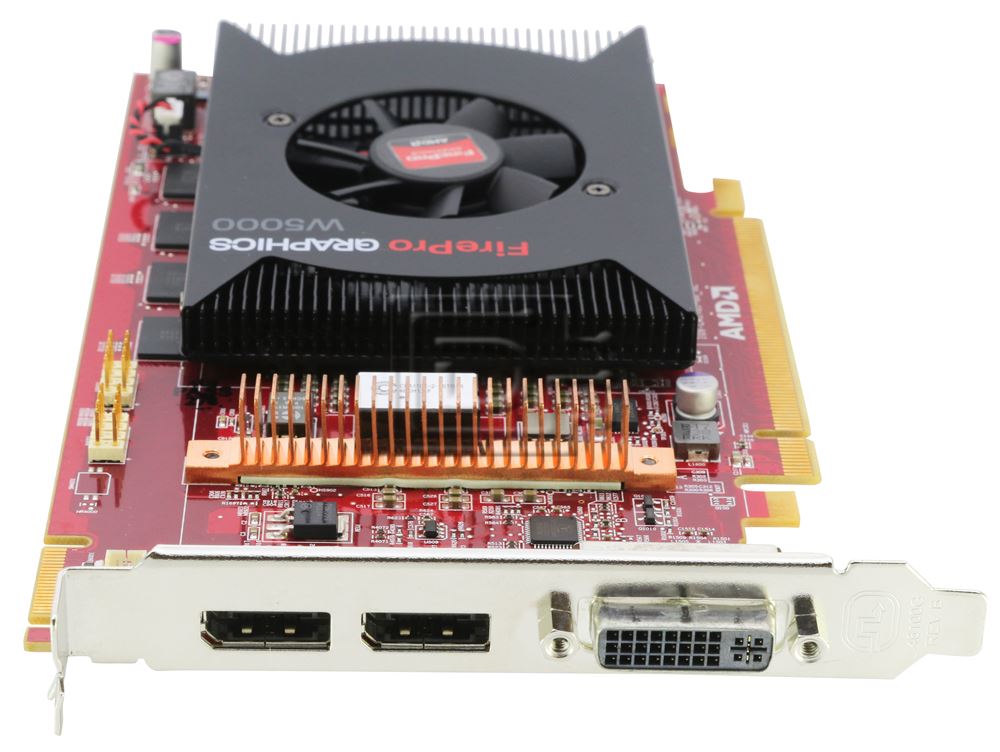

  • x1 DVI-I
  • x2 DisplayPort

Alt PN: WJ2JT 0WJ2JT ‎100-505635

AMD FirePro W5000 the ideal solution for professionals working with a broad range of applications, moderately complex models and datasets and advanced visual effects. Allows the GPU to process geometry data at a rate of twice per clock cycle resulting is a doubling in the rate of primitive and vertex processing. Triangle rates increase two-fold relative to a GPU that does not possess GeometryBoost. AMD ZeroCore Power technology leverages AMD's leadership in notebook power efficiency to grant our desktop GPUs the ability to power down when your monitor is off, also known as the "long idle state". AMD PowerTune is an intelligent system that performs real-time analysis of applications that utilize a GPU. In the event that an application is not making the most of the power available to the GPU, AMD PowerTune can improve that application's performance by raising the GPU's clock speed by up to 30 percent - automatically.


This product is compatible with the following systems:

Dell Precision R7610Dell Precision T1700Dell Precision T3610Dell Precision T5610
Dell Precision T7610Dell Precision T3600Dell Precision T5600Dell Precision T7600

This product supports the following operating systems:

Windows 7, 32-bitWindows 7, 64-bitWindows 8, 32-bitWindows 8, 64-bit
Windows 8.1, 32-bitWindows 8.1, 64-bit

AMD FirePro W5000
Graphics Processor
GPU NamePitcairn
GPU VariantPitcairn LE GL
ArchitectureGCN 1.0
Process Size28 nm
Transistors2,800 million
Die Size212 mm²
Memory Size2 GB
Memory TypeGDDR5
Memory Bus256 bit
Bandwidth102.4 GB/s
Graphics Features
DirectX12 (11_1)
Shader Model5.1
Mobile Graphics
Release DateAug 7th, 2012
GenerationFirePro (Wx000)
Bus InterfacePCIe 3.0 x16
Clock Speeds
GPU Clock825 MHz
Memory Clock800 MHz

ROHS Compliant

Alternate MPNs: 102C4170400 WJ2JT 0WJ2JT ‎100-505635

Weight: 3 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
