AMERICAN POWER CONVERSION Part #/MPN: SURT6000RMXLT3U
DiscTech Item #: APC-SURT6000RMXLT3U-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
U Height: 3U
Wattage/VA: 4200W
Voltage: 208V

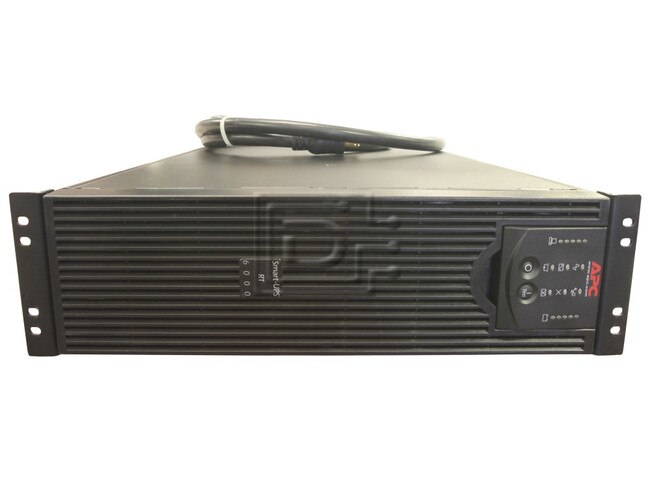

APC SURT6000RMXLT3U Smart-UPS On-Line RT 6000VA / 4200W 208V 3U Uninterruptible Power Supply - Refurbished
APC SURT6000RMXLT3U Smart-UPS On-Line RT 6000VA / 4200W 208V 3U Uninterruptible Power Supply - Refurbished
Availability
- Automatic internal bypass - Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Scalable runtime - Allows additional run time to be quickly added as needed.
- Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
- Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
- Network manageable - Provides remote power management of the UPS over the network.
- InfraStruXure Manager Compatible - Enables centralized management via the APC InfraStruXure Manager.
- SmartSlot - Customize UPS capabilities with management cards.
- LED status indicators - Quickly understand unit and power status with visual indicators.
- Serial connectivity - Provides management of the UPS via a serial port.
Adaptability
- Plug-and-Play external batteries - Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Flash upgradeable firmware - Install maintenance releases of firmware remotely using FTP.
Serviceability
- User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Predicitive failure notification - Provides early-warning fault analysis ensuring proactive component replacement.
- Disconnected battery notification - Warns when a battery is not available to provide backup power.
- Audible alarms - Provides notification of changing utility power and UPS power conditions
Protection
- Frequency and voltage regulation - Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Power conditioning - Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Input power factor correction - Minimizes installation costs by enabling the use of smaller generators and cabling.
- Generator compatible - Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Resettable circuit breaker - Easy recovery from overloads; no need to replace a fuse.
- Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
| SPECIFICATIONS | |
|---|---|
| Model number | SURT6000RMXLT3U |
| OUTPUT | |
| Output Power Capacity | 4200 Watts / 6000 VA |
| Max Configurable Power | 4200 Watts / 6000 VA |
| Normal Output Voltage | 208V |
| Output Voltage Note | Configurable for 208 or 240 nominal output voltage |
| Efficiency at Full Load | 92.0% |
| Output Voltage Distortion | Less than 3% |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
| Other Output Voltages | 240 |
| Crest Factor | 3 : 1 |
| Topology | Double Conversion Online |
| Waveform Type | Sine wave |
| Output Connections | (2) NEMA L6-20R (2) NEMA L6-30R |
| Bypass | Internal Bypass (Automatic or Manual) |
| INPUT | |
| Nominal Input Voltage | 208V |
| Input Frequency | 50/60 Hz +/- 5 Hz (auto sensing) |
| Input Connections | NEMA L6-30P |
| Cord Length | 10 feet (3.05 meters) |
| Input voltage range for main operations | 160 - 280V |
| Input voltage adjustable range for mains operation | 100 - 280V |
| Other Input Voltage | 240 |
| BATTERIES & RUNTIME | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte leakproof |
| Included Battery Modules | 2 |
| Typical recharge time | 2.50 hour(s) |
| Replacement Battery | APCRBC140 |
| RBC Quantity | 1 |
| Extended Run Options | 3 Hours 0 Minutes |
| COMMUNICATIONS & MANAGEMENT | |
| Interface Port(s) | DB-9 RS-232 RJ-45 10/100 Base-T Smart-Slot |
| Pre-Intalled SmartSlot Cards | AP9631 |
| Control panel | LED status display with load and battery bar-graphs and On Line On Battery Replace Battery Overload and Bypass Indicators |
| Audible Alarm | Alarm when on battery distinctive low battery alarm overlad continuous tone alarm |
| Emergency Power Off (EPO) | Yes |
| SURGE PROTECTION AND FILTERING | |
| Surge energy rating | 555J Joules |
| Filtering | Full time multi-pole noise filtering 0.3% IEEE surge let-through zero clamping response time meets UL 1449 |
| PHYSICAL | |
| Maximum Height (in/mm) | 17.00/432 |
| Maximum Width (in/mm) | 5.10/130 |
| Maximum Depth (in/mm) | 26.00/660 |
| Rack Height | 3U |
| Net Weight (lb/kg) | 120.00/54.55 |
| Shipping Weight (lb/kg) | 140.00/63.64 |
| Shipping Height (in/mm) | 13.68/347 |
| Shipping Width (in/mm) | 23.73/603 |
| Shippimg Depth (in/mm) | 38.60/980 |
| Color | Black |
| Units per Pallet | 6.00 |
| ENVIRONMENTAL | |
| Operating Environment | 32 - 104 °F (0 - 40 °C) |
| Operating Relative Humidity | 0 - 95% no % |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5 - 113 °F (-15 - 45 °C) |
| Storage Relative Humidity | 0 - 95% no % |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 55.00 dBA |
| Online Thermal Dissipation | 1324.00 BTU/hr |
| Protection Class | IP 20 |
| CONFORMANCE | |
| Regulatory Approvals | CSA FCC Part 15 Class A UL 1778 |
| SUSTANABLE OFFER STATUS | |
| RoHS | Compliant |
| REACH | REACH Contains No SVHCs |
| Battery Directive | Compliant |
| Battery Notes | Contains Lithium Coin Cell |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 145 lb
