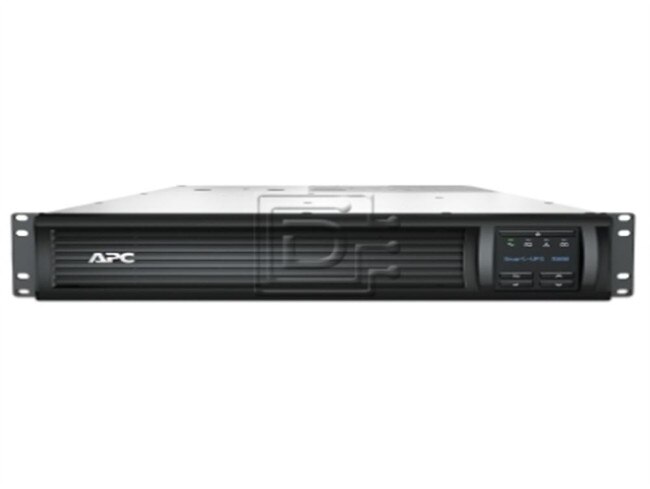

APC Smart-UPS 3000VA USB & Serial RJ-45 LCD RM 2U 230V SMT3000RMI2U

AMERICAN POWER CONVERSION Part #/MPN: SMT3000RMI2U

DiscTech Item #: APC-SMT3000RMI2U-BN-OE

$1,900.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$1,900.00

Wattage/VA: 2200W

Voltage: 220-240V

APC Smart-UPS 3000VA USB & Serial RJ-45 LCD RM 2U 230V SMT3000RMI2U - Brand New

Smart-UPS Features & Benefits

Availability

  • Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Power conditioning - Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Disconnected battery notification - Warns when a battery is not available to provide backup power.

    • Manageability

  • Network manageable - Provides remote power management of the UPS over the network.
  • Audible alarms - Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
  • LED status indicators - Quickly understand unit and power status with visual indicators.
  • Serial connectivity - Provides management of the UPS via a serial port.
  • USB connectivity - Provides management of the UPS via a USB port (not available on all models).
  • Disconnected battery notification - Warns when a battery is not available to provide backup power.

    • Serviceability

  • User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Predictive failure notification - Provides early-warning fault analysis ensuring proactive component replacement.
  • Resettable circuit breakers - Enables a quick recovery from overload events.
  • Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance

    • Adaptability

  • Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

    • Safety

  • Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
    • Technical Specifications
    Output
    Output Power Capacity2700 Watts / 3000 VA
    Max Configurable Power2700 Watts / 3000 VA
    Nominal Output Voltage230V
    Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
    Output Voltage DistortionLess than 5% at full load
    Output Frequency (sync to mains)47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
    Other Output Voltages220, 240
    TopologyLine Interactive
    Waveform TypeSine wave

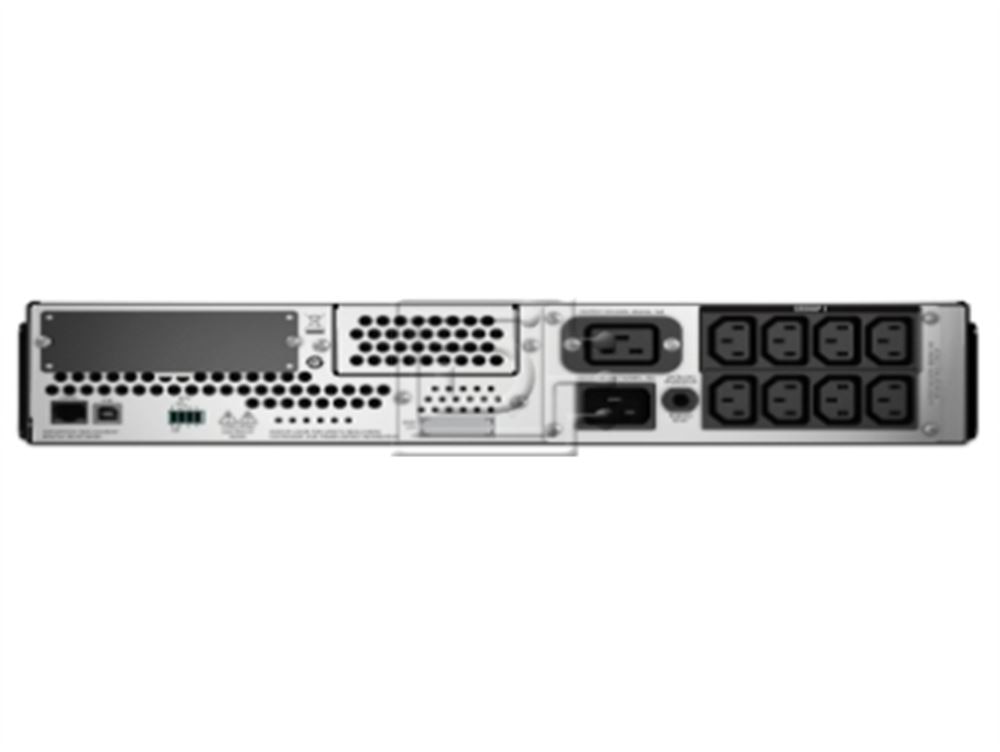

    Output Connections(8) IEC320 C13 / (1) IEC320 C19
    Input
    Nominal Input Voltage230V
    Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
    Input ConnectionsIEC-320 C14
    Input voltage range for main operations160 - 286V
    Input voltage adjustable range for mains operation151 - 302V
    Other Input Voltages220, 240
    Batteries & Runtime
    Battery TypeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    Typical recharge time3 hour(s)
    Replacement BatteryRBC43
    Communications & Management
    Interface Port(s)RJ-45 Serial, SmartSlot, USB
    Available SmartSlot™ Interface Quantity1
    Control panelMulti-function LCD status and control console
    Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
    Emergency Power Off (EPO)Yes
    Surge Protection and Filtering
    Surge energy rating459 Joules
    FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
    Physical
    Maximum Height3.50 inches (89 mm)
    Maximum Width19.00 inches (480 mm)
    Maximum Depth26.00 inches (683 mm)
    Rack Height2U
    Net Weight96.00 lbs. (44.28 kg)


    ColorBlack

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 120 lb

    Warranty: 1 Year DiscTech

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
