Adaptec 1205SA SATA 2 port PCI Controller

ADAPTEC Part #/MPN: 1205SA

DiscTech Item #: ADP-1205SA-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Interface Types: SATA, USB 2.0, USB 3.0 3.1 3.2, Ethernet RJ45, PCI, HDMI, VGA, 3.5mm Headphone

Form Factor: Full-Height/Half-Length

Electrical Interface: SATA 150 - 1.50Gbps

On-Board Cache: 4MB

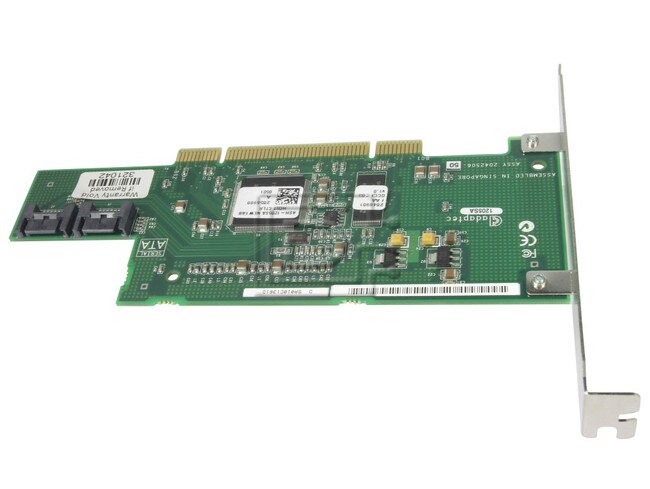

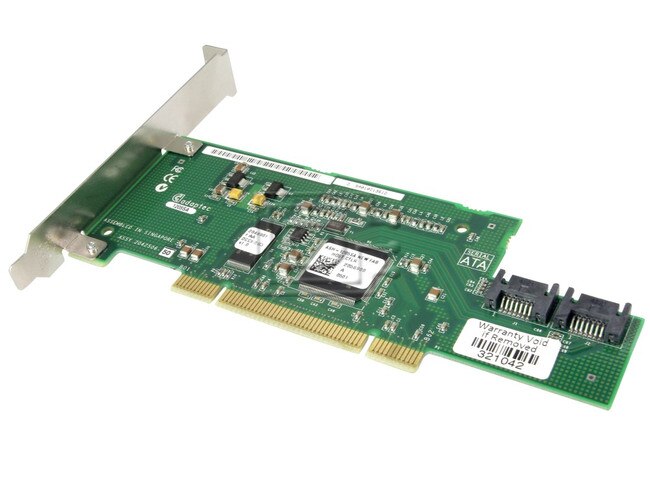

Adaptec SATAConnect AHA-1205SA SATA Serial ATA 2 port  Controller PCI - Refurbished

Serial ATA  (SATA), is a point-to-point interface that delivers full throughput to each storage device by allowing multiple ports to be managed by a single controller. The Adaptec AHA-1205SA SATAConnect PCI 2-port adapter delivers data transfer rates supporting 1.5 Gb/s (SATA I).

The Adaptec AHA-1205SA card is a two-port controller that supports SATA direct attached disk drives on any PC with an available PCI slot. This adapter will allow users of systems without integrated SATA connectivity to install and use SATA storage devices on their PC's.

  • 48-bit LBA supports drives sizes larger than 137GB
  • Ideal for desktop and workstations.
  • Affordable 2-port PCI card that provides high performance storage connectivity


Supported Operating Systems:
Microsoft Windows 98 SE
Windows ME
Windows 2000
Windows XP

System Requirements:
Pentium or equivalent PC with available PCI slot
32-bit PCI Bus 2.2 Compliant

Click here to view the manufacturer's item description/brochure

Weight: 2 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
