ADAPTEC Part #/MPN: 2275400-R
DiscTech Item #: ADP-2275400-R-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Voltage: 12V

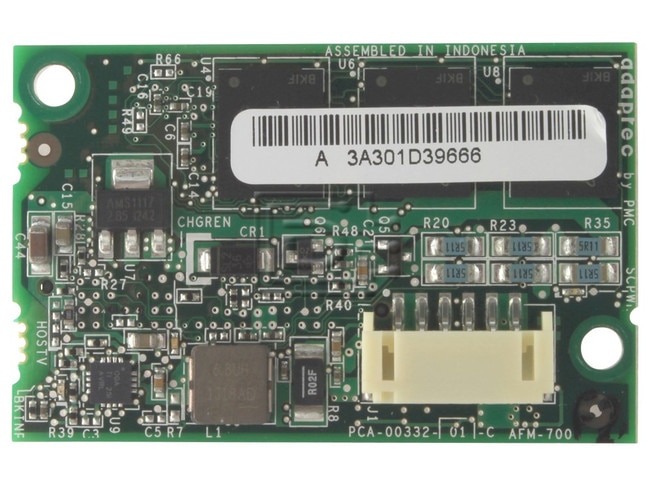

Adaptec 2275400-R AFM-700 Zero-Maintenance Cache Protection BBU Flash Module 700 Kit - Brand New OEM
Adaptec 2275400-R AFM-700 ZMCP (Zero-Maintenance Cache Protection) BBU Flash Module 700 Kit - Brand New OEM
Adaptec Flash Module 700 Kit (AFM-700) 3rd Gen Zero-Maintenance Cache Protection
Maximum Data Protection and Cost Savings
Enabling the onboard cache on a RAID adapter card significantly enhances performance — especially in RAID 5 and RAID 6 scenarios — by accommodating both read caching and write caching of data. But data stored in the cache for write caching can be lost if the cache is not protected against a power or system failure.
Lithium-ion (Li-ion) battery backup units (BBUs) are traditionally employed to protect cached data on RAID adapters. Once installed, a new BBU will take several hours to reach a full charge. During the charge cycle, write cache is unprotected (i.e. turned off), which adversly affects the RAID adapter’s performance. A typical BBU requires routine capacity testing and performs sub-optimally during those test periods. Lastly, a fully-charged BBU can only preserve data for a maximum of 72 hours during a power loss before the battery power depletes.
Li-ion BBUs have hidden costs that can drastically increase a RAID adapter’s Total Cost of Ownership (TCO) by hundreds of dollars per year through monitoring, maintenance, replacement, and disposal expenses.
Zero-Maintenance Cache Protection
Now in its third generation, Adaptec ZeroMaintenance Cache Protection (ZMCP) drastically reduces a RAID adapter’s TCO through the use of flash memory versus Liion batteris. These flash modules provide full protection of cached data without the costs associated with Li-ion batteries.
Product Highlights
Third Generation Cached Data Protection for 12Gb/s and 6Gb/s RAID Adapters
- Add-on module for Series 8 and Series 7
- Included with Series 8Q and Series 7Q
- Flash backup embedded into Adaptec 81605ZQ
Real Time Health Monitoring
- Monitors health of cache protection
- Monitors capacity levels
Instant RAID Cache Protection
- Fully charged within four minutes instead of hours
- RAID performance optimized immediately
Maintenance-Free Cached Data Protection
- Stores protected data for years
- No need to monitor battery charge level
- No shutdown required for battery replacement
Lower Operating Costs
- No monitoring, maintenance, replacement or disposal costs due to batteries
No Data Loss from Power Failures
- Replaces Lithium-ion batteries
Single-Level Cell (SLC) Flash
- Faster writes and better reliability than Multi-Level Cell (MLC) Flash
Environmentally Conscious
- No toxic battery disposal
- Simplified IATA compliance
BBUs vs. ZMCP: Maintenance Requirements
Lithium-ion BBUs | Adaptec by PMC ZMCP |
Batteries must be “conditioned” during initial deployment, adding custom steps and several hours to the deployment process | No action required |
Battery performance must be continually monitored so that failing batteries can be replaced | No action required |
A failed battery must be replaced within 72 hours, and sometimes less | No action required |
Batteries must be replaced on a regular maintenance cycle, so replacement batteries must be kept available at each location and maintenance staff must be on-site or on-call | No action required |
Replacement batteries “age” even when on the shelf, so a continual purchasing process must be developed and implemented | No action required |
Lithium-ion batteries must be properly disposed. A process to dispose of the hazardous material must be created, staffed, and funded | No action required |
Compatibility:
The Adaptec 2275400-R Flash Module 700 is compatible with the following Adaptec products ...
12Gb/s RAID Adapters
- Adaptec RAID 8885
- Adaptec RAID 8805
- Adaptec RAID 8885Q
- Adaptec RAID 81605ZQ (flash backup embedded)
6Gb/s RAID Adapters
- Adaptec RAID 72405
- Adaptec RAID 78165
- Adaptec RAID 71685
- Adaptec RAID 71605
- Adaptec RAID 7805
- Adaptec RAID 71605Q
- Adaptec RAID 7805Q
This kit includes ...
- 1x ZMCP power unit
- 1x cache module w/ mount and screws
- 1x 7 inch cable connected to the AFM-700
- 2 x Zip ties
Specifications | |
---|---|
Part Number | 2275400-R |
Typical Lifespan | 5 years at 50°C |
Environmental Compliance | RoHS |
Regulatory Certification | CE, FCC, UL, C-tick, VCCI, KCC |
Cable Length | Cable connected to the AFM-700: ~ 7 inches; extension cable: ~ 18 inches |
Operating Temperature | 0°C to 50°C (with 200 LFM airflow) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: AFM-700
Weight: 1 lb
