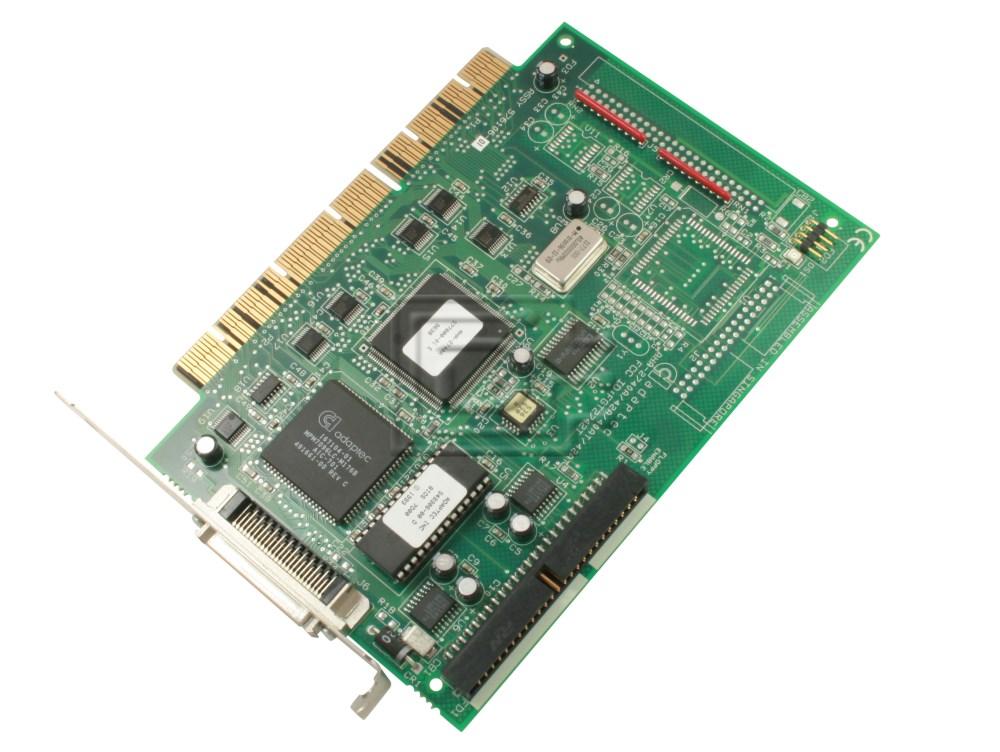

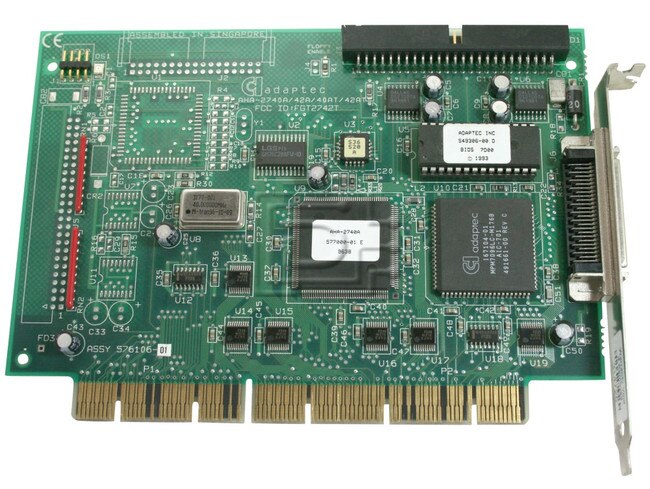

Adaptec 2740 FAST SCSI Controller

ADAPTEC Part #/MPN: 2740

DiscTech Item #: ADP-2740-UP-OE


Interface Types: SCSI 50pin

Form Factor: 5.25inx1.6in Standard DVD

Electrical Interface: SCSI II Fast - 10MBps 16-bit

Adaptec 2740 SCSI Controller - Used Pull

Adaptec's fastest EISA SCSI I/O solution ever for servers and performance workstations.The AHA-2740 is a bus mastering EISA-to-Fast SCSI host adapter and supports seven SCSI devices internally and/or externally.

Number of devices
7 SCSI devices

Bus System Interface Type

32-bit for EISA bus based computers

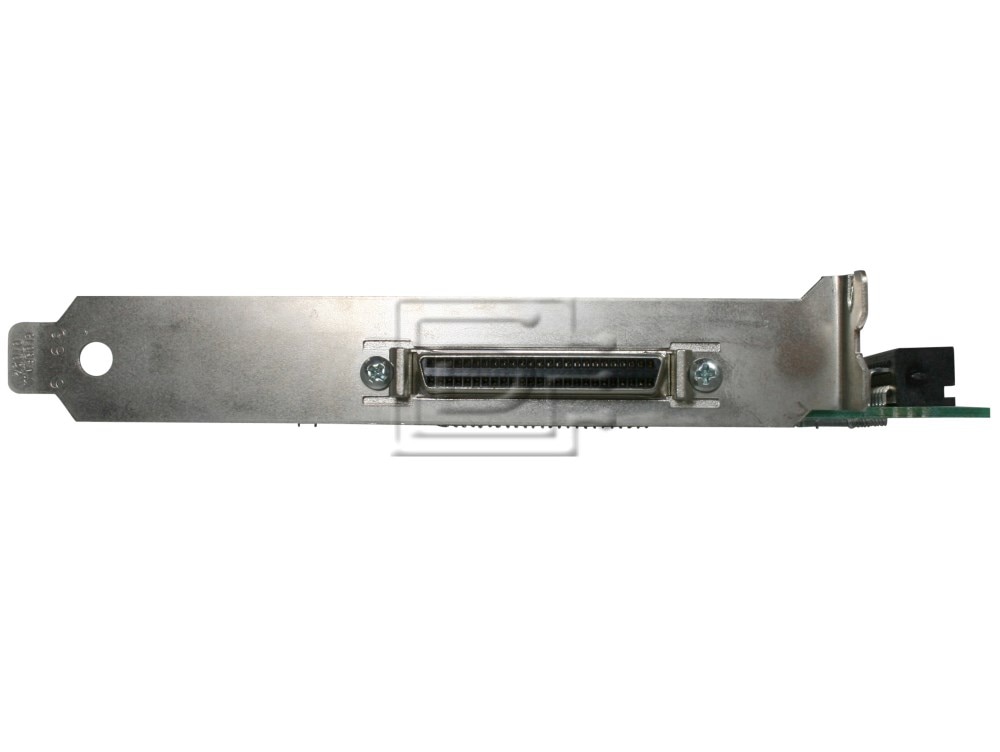

External Connectors
50-pin high density
Internal Connectors
50-pin standard
Data Transfer Rate
Up to 33 MBytes/sec bus master DMA transfer rate burst on the EISA bus, up to 2 MBytes/sec asynchronous, 5 MBytes/sec synchronous
10 MBytes/sec fast synchronous (Fast SCSI) on the SCSI bus
System Requirements
IBM compatible PC with an available EISA slot

Click here to view the manufacturer's item description/brochure

Weight: 2 lb

Warranty: 1 Year DiscTech

Used Pull

Condition Levels Explained

The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
