Adaptec 29160 LVD SCSI Controller

ADAPTEC Part #/MPN: 29160

DiscTech Item #: ADP-29160-BN-FW


$189.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$189.00

Interface Types: SCSI 68pin HD68, SCSI 50pin, SCSI HD50M, PCI

Form Factor: Half-Height/Half-Length

Electrical Interface: SCSI LVD U160 - 160MBps 16-bit

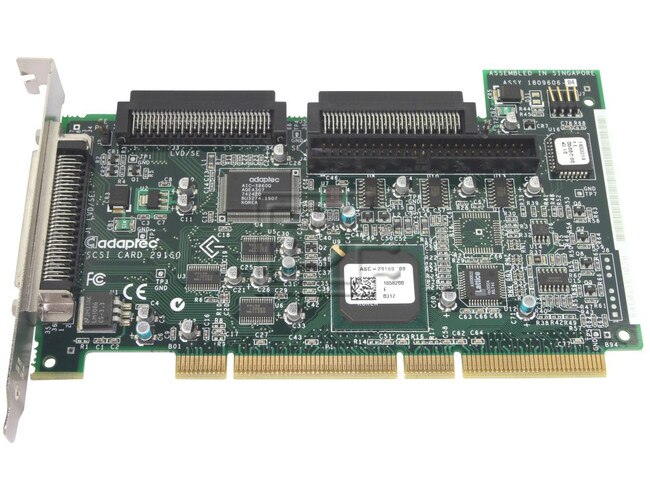

Adaptec 29160 U160 LVD SCSI Controller - Brand New

The Adaptec SCSI Card 29160 is tailored for entry to mid-range server environments. It delivers the maximum throughput for a single channel Ultra160 SCSI card by using a 64-bit PCI interface. The Adaptec SCSI Card 29160 provides the ideal connection to Ultra160 SCSI (LVD) hard disks and devices (internally and externally) and legacy devices (internally).

Product Description
 1-channel, 64-bit (32-bit compatible), ideal for internal and external hard disk drive configurations
Customer Needs
 Total performance solution on a single channel card
System Environment
 Entry level to mid-range servers
Key Differentiators
 64-bit PCI (32-bit compatible)
Data Transfer Rate
 160 MB/sec

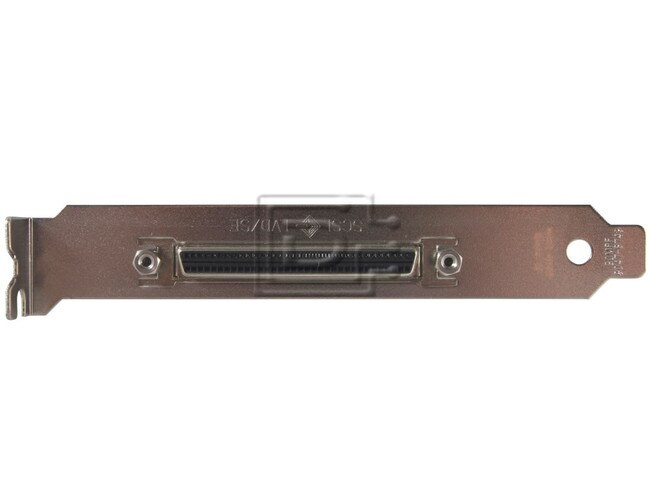

External Connectors
 One 68-pin for LVD SCSI devices
Internal Connectors
 One 68-pin for LVD SCSI
One 68-pin for Ultra Wide SCSI
One 50-pin for Ultra SCSI
Bus Type
 64-bit PCI (32-bit compatible)
System Requirements

  • Intel PC or equivalent
  • Available PCI slot
Board Dimensions
 6.87" x 3.87"
MTBF (mean time between failures, MIL-SPEC)
 561,251.7 hours
Supported Operating Systems
  Microsoft MS-DOS 6.x
Microsoft Windows 3.10
Microsoft Windows for Workgroups 3.11
Microsoft Windows 95
Microsoft Windows 95a
Microsoft Windows 95b
Microsoft Windows 95c
Microsoft Windows 98
Microsoft Windows 98 Second Edition
Microsoft Windows Millennium Edition
Microsoft Windows NT 4.0
Microsoft Windows NT 4.0 Server
Microsoft Windows 2000 Professional
Microsoft Windows 2000 Server
Microsoft Windows 2000 Advanced Server
Microsoft Windows XP
Novell NetWare 3.2
Novell NetWare 4.20
Novell NetWare 5.0
SCO Openserver 5.05
SCO UnixWare 2.10
SCO UnixWare 2.11
SCO UnixWare 7.01
SCO UnixWare 7.10
Sun Solaris 7 (x86)
Sun Solaris 8 (x86)
IBM OS/2 Warp Client 3.0
IBM OS/2 Warp Client 4.0
IBM OS/2 Warp Server 3.0
IBM OS/2 Warp Server 4.0

Click here to view the manufacturer's item description/brochure

Weight: 2 lb

Warranty: Factory Warranty

Brand New

Condition Levels Explained

The product is brand new.

Factory Warranty Warranty
