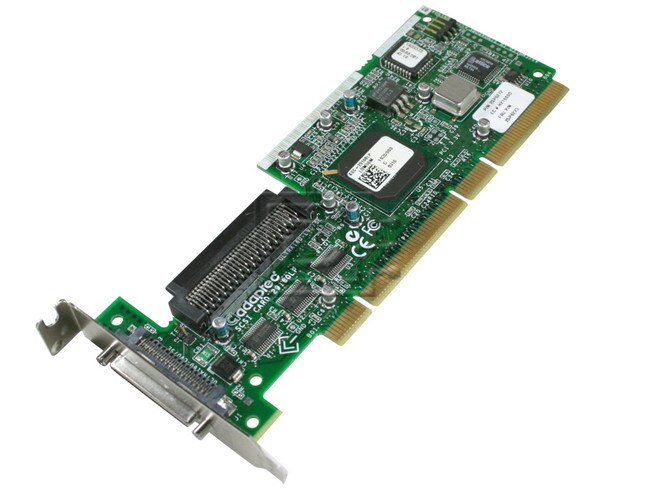

Adaptec 29160LP Low Profile LVD SCSI Controller

ADAPTEC Part #/MPN: 29160LP

DiscTech Item #: ADP-29160LP-BN-FW


$99.00
$99.00

Interface Types: SCSI 68pin HD68, SCSI VHDCI, PCI

Form Factor: Half-Height/Half-Length

Electrical Interface: SCSI LVD U160 - 160MBps 16-bit

Adaptec 29160LP Low Profile U160 LVD SCSI Controller - Brand New

Adaptec SCSI Card 29160LP conforms to the MD2 specification, optimal for thin rack-mount server environments. It includes a 68- pin VHDCI external connector for connections with LVD peripherals. This card provides an easy cable connection and a second, regular-height bracket. The 29160LP supports a full range of operating systems and enables the fastest possible data transfer rates to help meet the demands of e-commerce engines, web servers, and databases.

Product Description
 1-channel, 64-bit (32-bit compatible), supports up to 15 devices, ideal for thin rackmount servers
Customer Needs
 High performance, low profile form factor
System Environment
 Rack-mount servers
Data Transfer Rate
 Up to 160 MB/sec
External Connectors
 One 68-pin VHDCI for LVD SCSI devices
Internal Connectors
 One 68-pin for LVD SCSI
Bus Type
 64-bit PCI (32-bit compatible)
System Requirements

  • Intel PC or equivalent
  • Available PCI 2.1 compliant slot
Board Dimensions
 2.55" x 6.60" Kit includes regular bracket
MTBF (mean time between failures, MIL-SPEC)
 987,355.8 hours
Supported Operating Systems
  Microsoft MS-DOS 6.x
Microsoft Windows 3.10
Microsoft Windows for Workgroups 3.11
Microsoft Windows 95
Microsoft Windows 95a
Microsoft Windows 95b
Microsoft Windows 95c
Microsoft Windows 98
Microsoft Windows 98 Second Edition
Microsoft Windows Millennium Edition
Microsoft Windows NT 4.0
Microsoft Windows NT 4.0 Server
Microsoft Windows 2000 Server
Microsoft Windows 2000 Advanced Server
Microsoft Windows 2000 Professional
Microsoft Windows XP
IBM OS/2 Warp Client 3.0
IBM OS/2 Warp Client 4.0
IBM OS/2 Warp Server 3.0
IBM OS/2 Warp Server 4.0
Novell NetWare 3.2
Novell NetWare 4.20
Novell NetWare 5.0
SCO Openserver 5.05
SCO UnixWare 2.10
SCO UnixWare 2.11
SCO UnixWare 7.01
SCO UnixWare 7.10
Sun Solaris 7 (x86)
Sun Solaris 8 (x86)

Click here to view the manufacturer's item description/brochure

Weight: 2 lb

Warranty: Factory Warranty

Brand New

Condition Levels Explained

The product is brand new.

Factory Warranty Warranty
