Adaptec 29320A-R SCSI RAID Controller

ADAPTEC Part #/MPN: 29320A-R

DiscTech Item #: ADP-29320A-R-BN-FW

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SCSI 68pin HD68, SCSI 50pin, PCI-X

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 256MB

Bays/Ports/Slots: 4

Adaptec 29320A-R / 2253500-R U320 64-bit 133 MHz Half Height PCI-X Single Channel LVD SCSI Controller with RAID 0,1,10 support - Brand New

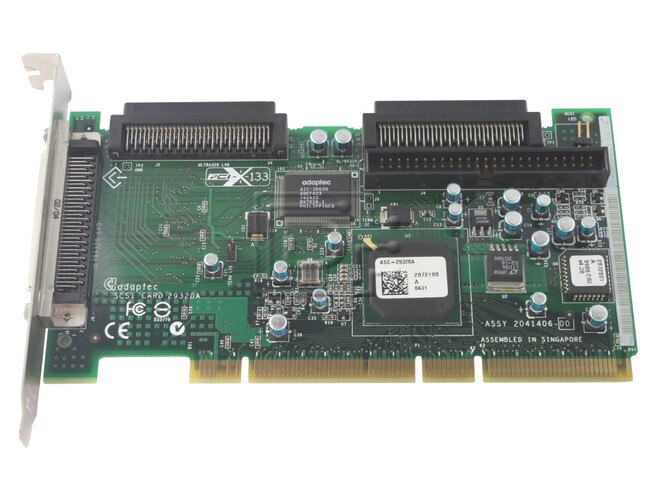

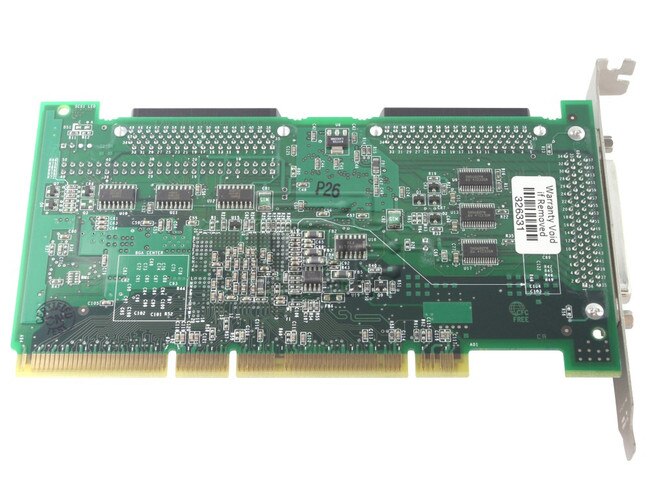

The Adaptec SCSI Card 29320A-R is a half-size, 64-bit 133 MHz PCI-X, single-channel Ultra320 SCSI card with integrated HostRAID®. The Adaptec 29320A-R offers additional drivers for HostRAID as well as a new management tool. It provides worry-free data protection at the fastest SCSI speeds available up to 320 MByte/sec. The card has a 68-pin HD external connector and a 68-pin HD internal connector for Ultra320 SCSI (LVD) hard disks drives and a 68-pin/50-pin legacy SCSI connector.


Works with any computer with an available PCI-X slot running one of the listed operating systems.

    Supported Operating Systems

  • Microsoft Windows
  • Red Hat Linux
  • SUSE Linux
  • Novell NetWare
  • Sun Solaris
  • SCO Unix
  • Benifits

  • Single-channel Ultra320 SCSI card with legacy
  • SCSI connectors and HostRAID RAID 0, 1 and 10 for data protection
  • Customer Needs

  • Ideal for entry-level servers and workstations requiring connector flexibility and legacy SCSI support
  • System Environment

  • Server
  • Number of Devices

  • 15
  • Bus System Interface Type

  • 64-bit, 133 MHz PCI-X
  • External Connectors

  • One 68-pin HD
  • Internal Connectors

  • One 68-pin Ultra320
  • One 68-pin wide Ultra
  • One 50-pin narrow Ultra
  • Data Transfer Rate

  • 320 MB/sec/channel
  • System Requirements

  • Intel PC or equivalent with available PCI slot (2.2 compliant)
  • RAID Level

  • RAID 0,1,10
  • Physical Dimensions

  • 6.87 inches x 3.87 inches
  • Power Requirements

  • .520 amps @ +5V, .600 amps @ +3.3V
  • Mean Time Before Failure (MTBF)

  • 1,181,032 hours at 40 degrees C

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 2253500-R

Weight: 2 lb

Warranty: Full Manufacturer Warranty

Brand New

Condition Levels Explained

The product is brand new.

Full Manufacturer Warranty Warranty

Product Warranties Explained

The product has the full manufacturer warranty. If the item is new, then you will be covered for the full term of the warranty. If the item is not new, then the warranty period depends on the manufacture date of the item.
