ADAPTEC Part #/MPN: 39160
DiscTech Item #: ADP-39160-UP-OE
- Used PullCondition Levels Explained
The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: SCSI 68pin HD68, SCSI 50pin, SCSI VHDCI, PCI
Form Factor: Half-Height/Half-Length
Electrical Interface: SCSI LVD U160 - 160MBps 16-bit

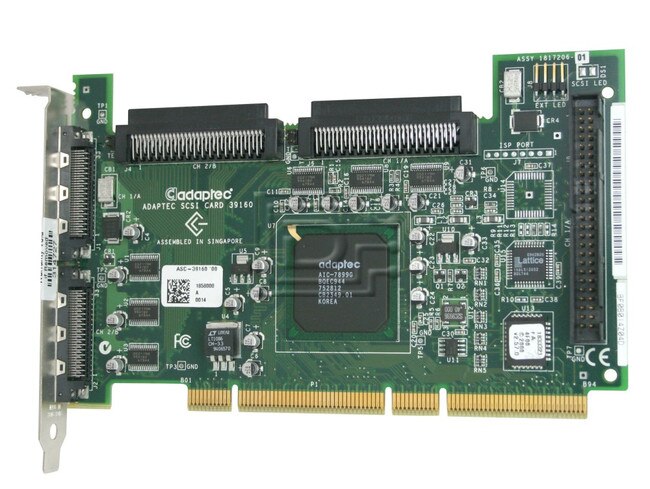

Adaptec 39160 Dual Channel U160 LVD SCSI Controller - Used Pull
The Adaptec SCSI Card 39160 delivers all-out performance for enterprise servers. Combining a 64-bit PCI interface with two Ultra160 SCSI channels, this card moves data at the fastest speeds possible. The Adaptec SCSI Card 39160 supports up to 30 devices, making it ideal for connecting external drive arrays for mirroring and striping multiple SCSI hard disk drives to deliver the ultimate performance in the most demanding environments.
| Product Description | |
| 2-channel, 64-bit (32-bit compatible), supports up to 30 devices, ideal for connecting external arrays | |
| Customer Needs | |
| The fastest performance in enterprise servers | |
| System Environment | |
| High-end servers | |
| Key Differentiators | |
| Takes full advantage of 64-bit PCI Connectivity for up to 30 SCSI peripherals with one card | |
| Data Transfer Rate | |
| Up to 160 MB/sec, on each channel | |
| External Connectors | |

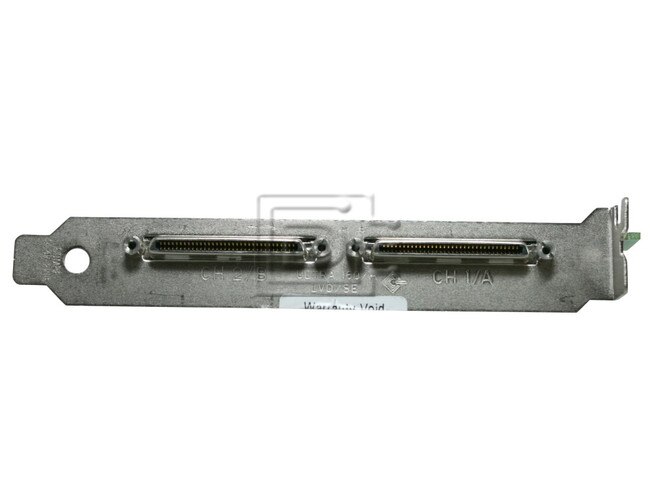

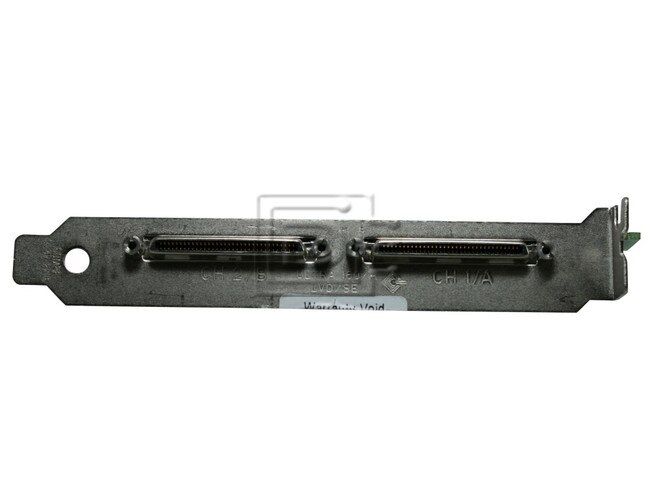

| Two 68-pin VHDCI for LVD SCSI devices | |
| Internal Connectors | |
| Two 68-pin for LVD SCSI One 50-pin for Ultra SCSI | |
| Bus Type | |
| 64-bit PCI (32-bit compatible) | |
| System Requirements | |
| |
| Electrical & Mechanical Specifications | |
| Board Dimensions | |
| 6.87" x 3.87" | |
| MTBF (mean time between failures, MIL-SPEC) | |
| 591,351.5 hours | |
| Supported Operating Systems | |
| Supported Operating Systems | |
| Microsoft MS-DOS 6.x Microsoft Windows 3.10 Microsoft Windows for Workgroups 3.11 Microsoft Windows 95 Microsoft Windows 95a Microsoft Windows 95b Microsoft Windows 95c Microsoft Windows 98 Microsoft Windows 98 Second Edition Microsoft Windows NT 4.0 Microsoft Windows NT 4.0 Server Microsoft Windows Millennium Edition Microsoft Windows 2000 Professional Microsoft Windows 2000 Server Microsoft Windows 2000 Advanced Server Microsoft Windows XP Novell NetWare 3.2 Novell NetWare 4.20 Novell NetWare 5.0 SCO Openserver 5.05 SCO UnixWare 2.10 SCO UnixWare 2.11 SCO UnixWare 7.01 SCO UnixWare 7.10 Sun Solaris 7 (x86) Sun Solaris 8 (x86) IBM OS/2 Warp Client 3.0 IBM OS/2 Warp Client 4.0 IBM OS/2 Warp Server 3.0 IBM OS/2 Warp Server 4.0 | |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: W2414
Weight: 2 lb
Warranty: 1 Year DiscTech
Used Pull
The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
