Adaptec 5405 256MB PCIe SAS SATA RAID Controller Card

ADAPTEC Part #/MPN: 5405

DiscTech Item #: ADP-5405-NP-OE


$189.00
$189.00

Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8087

Form Factor: Half-Height/Half-Length

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

On-Board Cache: 256MB

Voltage: 3.3V

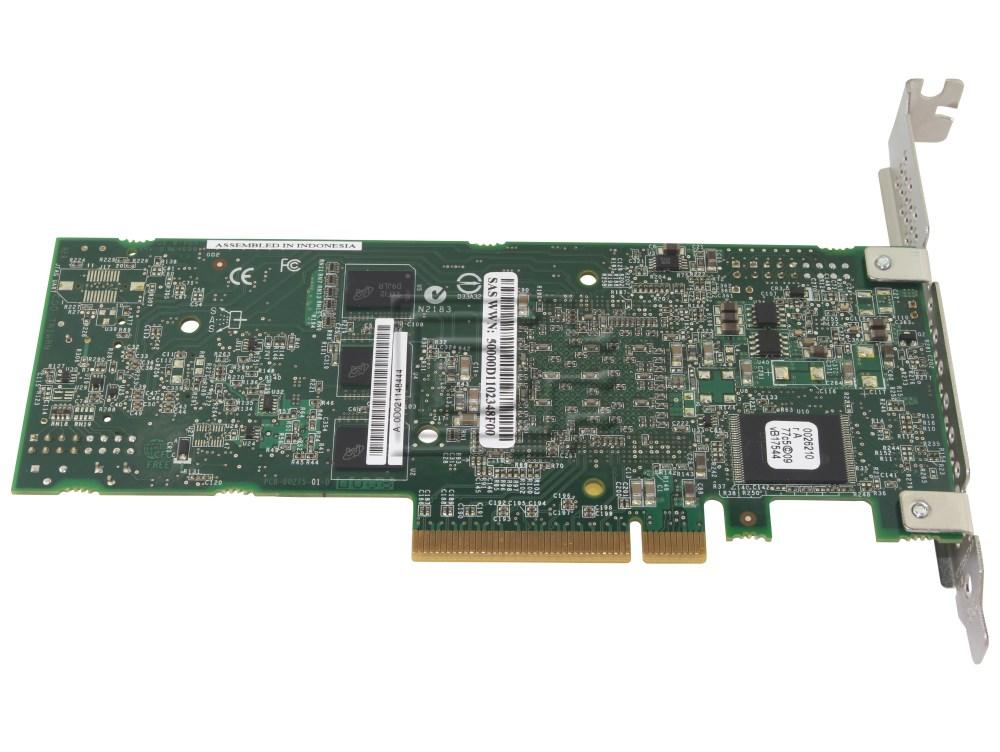

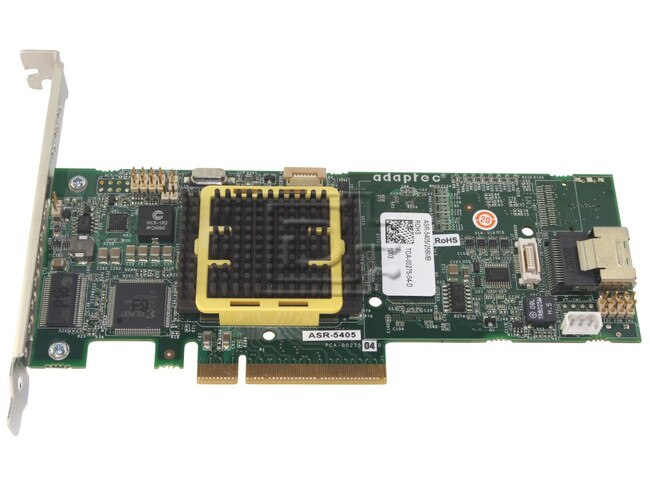

Adaptec 5405 256MB 4 Port PCIe SAS/SATA 3Gbps RAID Controller Card - New Pull

Adaptec 5405 256MB 4 Port PCIe SAS/SATA 3Gbps RAID Controller Card - New Pull

Alt MPN: 2258100-R

Note: This item is for the controller card ONLY.

The Series 5 family of high-performance Adaptec SAS/SATA RAID adapters offers both high I/O transaction and high bandwidth processing for use with cost-effective, high-capacity SATA drives or high-performance SAS drives.

The Adaptec RAID Series 5 family utilizes industry-leading dual core RAID on Chip (ROC), 256MB of DDR2 write cache, and connectivity with the latest x8 PCI-Express to deliver over 250,000 I/Os 1.2GBs. Using SAS expanders, it can connect up to 256 SATA/SAS devices.

The Adaptec RAID Series 5 family supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager™ for centralized management of all Adaptec raid adapters on the network.

Intelligent Power Management - Reduce Power by up to 70%

The power required by disks is a primary ongoing storage cost. Full power is maintained to every disk whether it is actively being used or not, which also increases cooling costs. Adaptec Intelligent Power Management slashes power and cooling costs by spinning down idle disks and providing a lower power mode for active disks.

  • 1.2GHz Dual Core RAID on Chip (ROC) processor
  • 8-Lane PCI-Express bus interface
  • 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD RAID levels
  • Supports up to 256 SAS/SATA drives
  • Hybrid RAID 1 & 10: SSD + HDD for Maximum Performance and Relaiability
  • Intelligent Power Management – Reduces power and cooling costs by as much as 70%


Compatibility:

This controller card is compatible with any server that includes PCI-E Gen 1.1 slots.

Supported Operating Systems

  • Microsoft Windows
  • Red Hat Linux
  • SUS Linux
  • SCO OpenServer
  • UnixWare
  • Sun Solaris
  • FreeBSD
  • VMware ESX

Benefits

  • Performance Unified Serial RAID controllers support both SATA and SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, and digital surveillance.

Key Differentiators

  • Intelligent Power Management

Customer Needs

  • High I/O transaction and high bandwidth processing

Form Facor

  • MD2 Low-Profile

Cache Memory

  • 256MB of DDR2 memory

RAID Levels

  • RAID Levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD

Key RAID Features

  • Supports 4 direct-attached or up to 256 SATA or SAS disk drives using SAS expanders
  • RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60
  • Quick initialization
  • Online Capacity Expansion
  • Copyback Hot Spare
  • Dynamic caching algorithm
  • Native Command Queuing (NCQ)
  • Background initialization
  • Hot-plug drive support
  • RAID Level Migration
  • Hot spares – global, dedicated, and pooled
  • Automatic/manual rebuild of hot spares
  • SAF-TE enclosure management
  • Configurable stripe size
  • S.M.A.R.T. support
  • Up to 512TB array sizes
  • Multiple arrays per disk drive
  • Bad stripe table
  • Dynamic sector repair
  • Staggered drive spin-up
  • Bootable array support
  • Optimized Disk Utilization

Bus System Interface Type

  • 8-lane PCIe

Internal Connectors

    (1) Internal (SFF-8087) Mini SAS

Data Transfer Rate

  • 3 Gb/s per port

Package Contents

  • Adaptec RAID 5405 Controller
  • Additional low profile vented bracket
  • Software and documentation CDs
  • Quick Installation Guide (English/French/German/Italian/Spanish)
  • Cable: one Mini SAS x4 to (4x) SATA fanout cable w/ sideband, 0.5 meter
  • Singles do not contain cable

Management Utilities
Adaptec Storage Manager™ (ASM)

  • Java-based GUI Management Utility
  • Remote configuration, monitoring & notification
  • ASM OS Support: Windows, Linux, SCO, Solaris, FreeBSD
  • Microsoft VDS Support
  • SNMP, SMTP
  • Remote firmware updates

ARCCONF

  • Command Line Interface
  • SMI-S support for VMware

Adaptec BIOS Utility (ACU)

  • BIOS level configuration utility
  • Flashable BIOS support

Physical Size

  • 2.5” H x 6.6” L
  • 64 mm H x 167 mm H

Operating Temperature

  • 0°C to 55°C* (with 200 LFM airflow; without battery)
  • 0°C to 40°C* (with 200 LFM airflow; with battery)
  • Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM).
  • Ambient temperature measured 1" away from the RAID processor

Operating Voltage

  • 0.45 amp @ 3.3V
  • 1 amp @ 12V

Regulatory Certifcation

  • CE
  • FCC
  • UL
  • C-tick
  • VCCI

Mean Time Before Failure (MTBF)

  • 873,402 hours at 40 degree C


Click here to view the manufacturer's item description/brochure

Alternate MPNs: 2258200-R 2258100-R

Weight: 2 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
