ADAPTEC Part #/MPN: AAA-133
DiscTech Item #: ADP-AAA-133-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: SCSI 68pin HD68, SCSI 50pin, SCSI VHDCI, PCI
Form Factor: Full-Height/Half-Length
Electrical Interface: SCSI Ultra2 Wide - 80MBps 16-bit
On-Board Cache: 64MB
Bays/Ports/Slots: 1

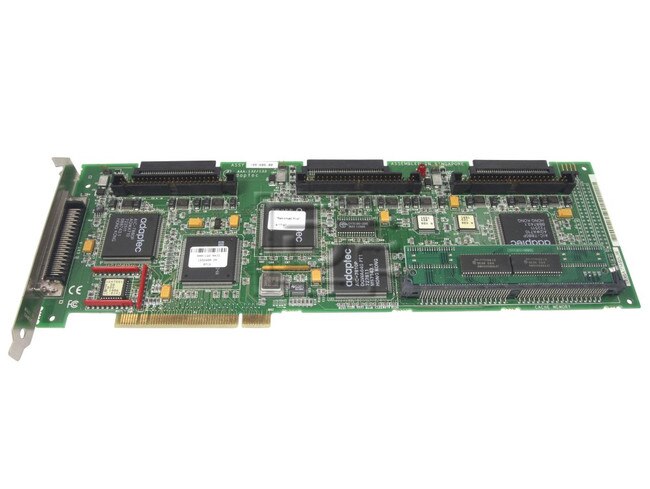

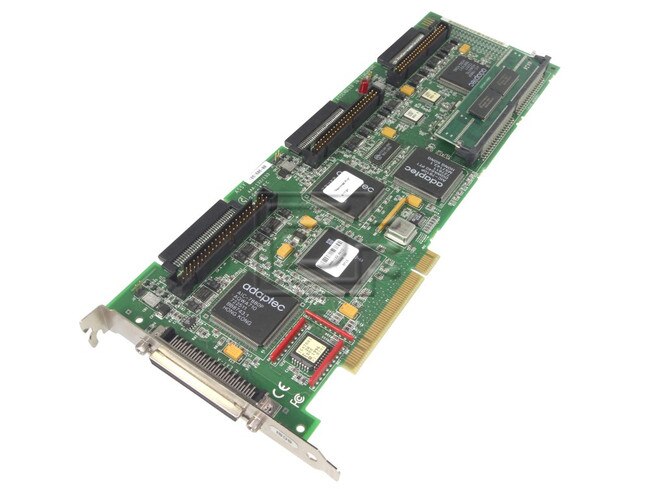

Adaptec AAA-133 PCI 32 bit 68 pin 128Mb/s SCSI Raid Controller - Refurbished
The AAA-133 three-channel adapters deliver the equivalent performance of multiple array adapters in a single PCI slot. The multichannel feature of these adapters optimizes performance by allowing slower peripherals, such as CD-ROM and tape drives, to be isolated on a separate, independent channel, saving PCI slots and reducing the need for a separate host adapter.
Number of devices
Up to 15 devices per channel
Bus System Interface Type
32-bit PCI Local Bus
External Connectors
68-pin (internal-to-external
converter available)
Internal Connectors
50 and 68-pin
Data Transfer Rate
Up to 120 MByte/sec (40 MByte/sec per channel)
System Requirements
PCI-based 90-MHz Pentium or equivalent motherboard with PCI-to-PCI bridge support32 MByte system memory (NetWare)48 MByte system memory (Windows NT)
Device Protocol
SCSI Ultra, Fast, and Wide (8- and 16-bit) 20 MHz
Advanced SCSI Features
SCSI PhaseEngine® coprocessor Auto-termination
255 simultaneous commands
SCSI Channels
1, 2, or 3 fully independent PCI
Array Support
Drives can be supported in array or non-array configurations
Up to 4 arrays configurable per AAA-13x
Up to 16 drives per array
RAID levels
0, 1 (mirroring), 0/1, or 5
Board Dimensions
12.28 inches (31.191 cm) by 4.2 inches (10.668 cm)
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year DiscTech
