Adaptec AHA-2930B SCSI Controller


DiscTech Item #: ADP-AHA-2930B-UP-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Interface Types: SCSI 50pin

On-Board Cache: 32MB

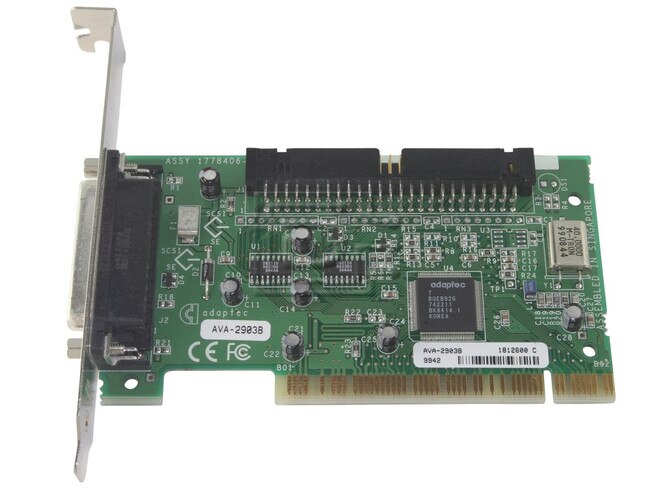

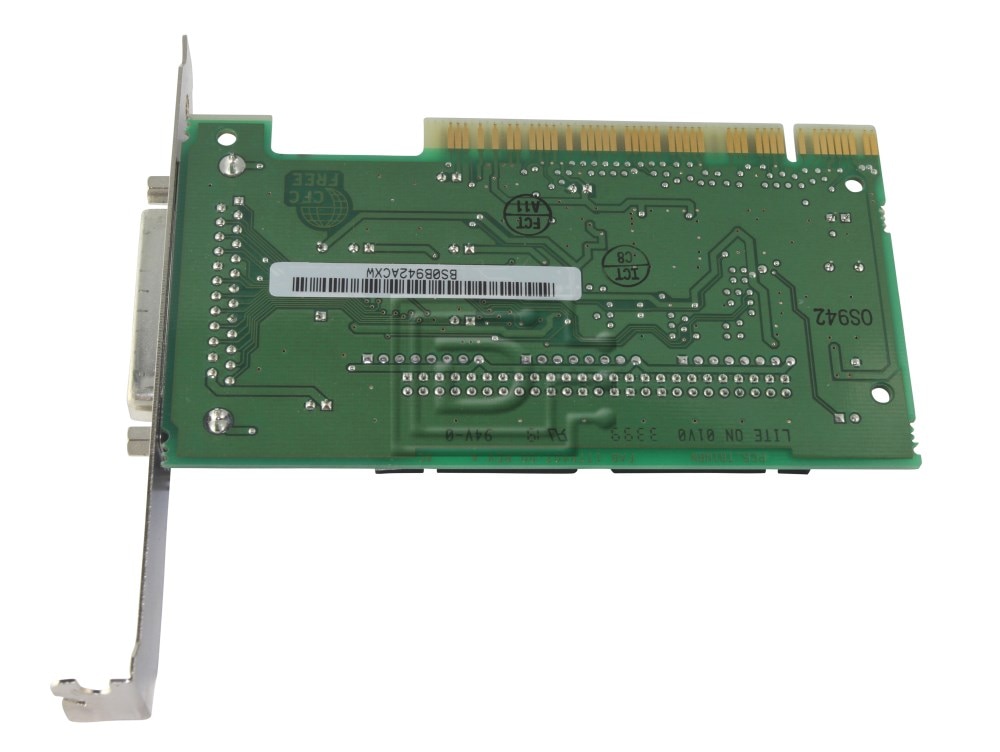

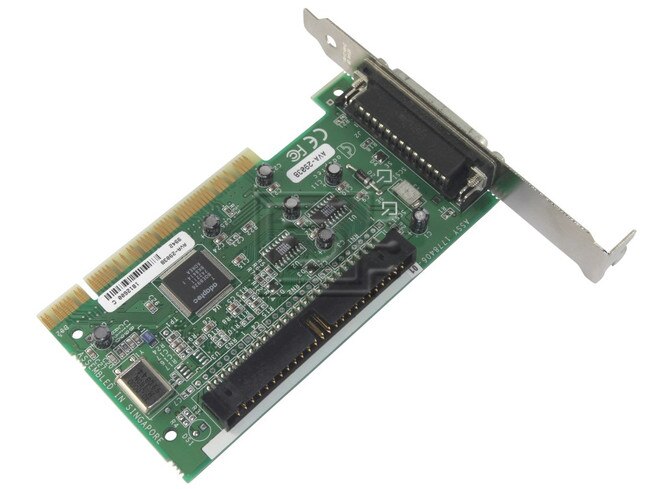

Adaptec AHA-2930B 20MBps Fast SCSI Controller - Used Pull

The AHA®-2930B host adapter provides a powerful multitasking interface between your computer’s PCI bus and SCSI devices (disk drives, CD-ROM drives, scanners, tape drives, removable-media drives, etc.). You can connect up to seven 8-bit SCSI devices to your host adapter.

The controller comes with one 8-bit internal 50pin connector and one 8-bit High Density external 50pin connector.

Number of devices
7 SCSI devices

Bus System Interface Type

32-bit PCI bus based computers
External Connectors
50-pin high density
Internal Connectors
50-pin standard
Data Transfer Rate
Up to 20 MBytes/sec bus master DMA transfer rate burst on the PCI bus
System Requirements
IBM compatible PC with an available PCI slot

Click here to view the manufacturer's item description/brochure

Weight: 1 lb

Warranty: 1 Year DiscTech

Used Pull

Condition Levels Explained

The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
