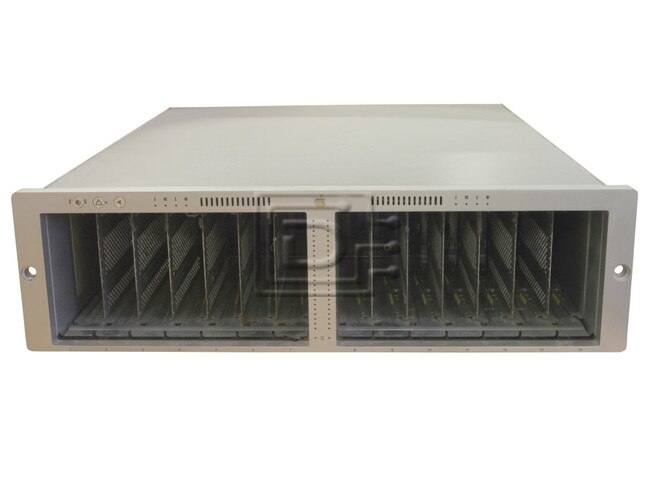

Apple A1009 2GB Fibre/Fiber Channel 14-Bay RAID Enclosure

APPLE Part #/MPN: A1009

DiscTech Item #: APL-A1009-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

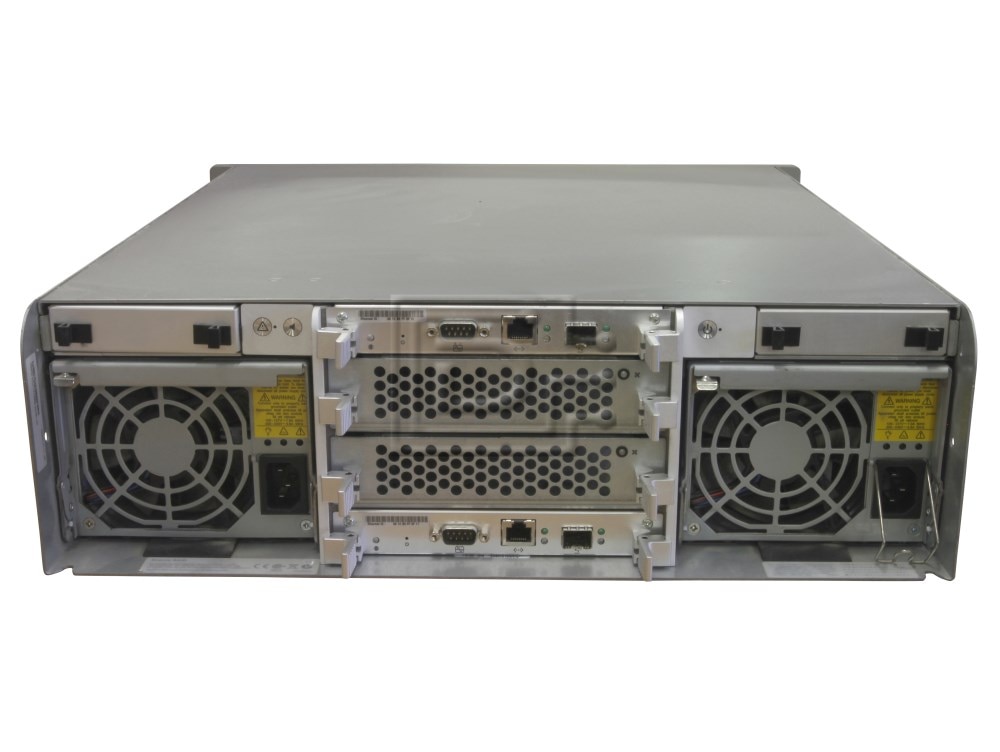

Interface Types: Fibre Channel - External HSSDC DB9, Ethernet RJ45, Serial RS-232 DB9

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: FC-AL - 2Gbps

On-Board Cache: 8MB

Bays/Ports/Slots: 14

U Height: 3U

Wattage/VA: 300W

Voltage: 110-240V Multi

Apple A1009 Xserve 2GB Fibre/Fiber Channel 14-Bay Bare RAID Enclosure Storage Array - No HDDs - Refurbished

Apple A1009 Xserve 2GB Fibre/Fiber Channel 14-Bay Bare RAID Enclosure Storage Array - No HDDs - Refurbished

***No hard drives or trays included***

Xserve RAID - This high-performance, high-availability storage system delivers data protection and enormous capacity—up to 10.5 terabytes— at a groundbreaking price.

With massive capacity and high-availability features previously available only in much more expensive storage systems, Xserve RAID offers unmatched capabilities for an unprecedented price. Tiered storage environments can take advantage of its extreme versatility. Redundant components provide the continuous availability required for business-critical applications. The advanced Xserve RAID architecture delivers fast access to storage without compromising data integrity. Dual independent RAID controllers provide protected storage with unprecedented performance. In fact, Xserve RAID boasts an average read throughput of up to 380MB/s4 and write throughput of up to 301MB/s. 5 While throughput rates are measured differently in video applications, Xserve RAID is fast enough to support real-time, uncompressed, high-definition (HD) and multiple-stream (SD) video editing without dropping a frame.

A platform-independent design and Java-based administrative tools make it easy to fit Xserve RAID into heterogeneous environments. Xserve RAID is qualified for use with Mac, Windows, Linux, Solaris, and NetWare systems, and Apple has worked with leading storage infrastructure vendors to certify it for integration with existing Fibre Channel hardware and data management solutions. 3 Integrated remote monitoring and notification features and hot-swappable components ensure that your data is online and available. And with intuitive tools for quick configuration of protected storage volumes, this revolutionary RAID solution delivers ease of use that could come only from Apple.

Model numberA1009
Height (in/cm)5.25/13.3
Width (in/cm)17.0/43.2
Depth (in/mm)18.4/46.7
Weight60-100 lbs (27.2-45.4 kg)

Weight: 100 lb

Warranty: 1 Year DiscTech
