Avocent Part #/MPN: HMX5100R-001
DiscTech Item #: AVO-HMX5100R-001-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: USB 2.0, Ethernet RJ45, DVI-D, 2.5mm Headset, Serial RS-232 DB9, SFP
Electrical Interface: Ethernet Gigabit - 1Gbps
Bays/Ports/Slots: 7
U Height: 1U
Wattage/VA: 15.4W
Voltage: 5V
Resolution: 1920x1200

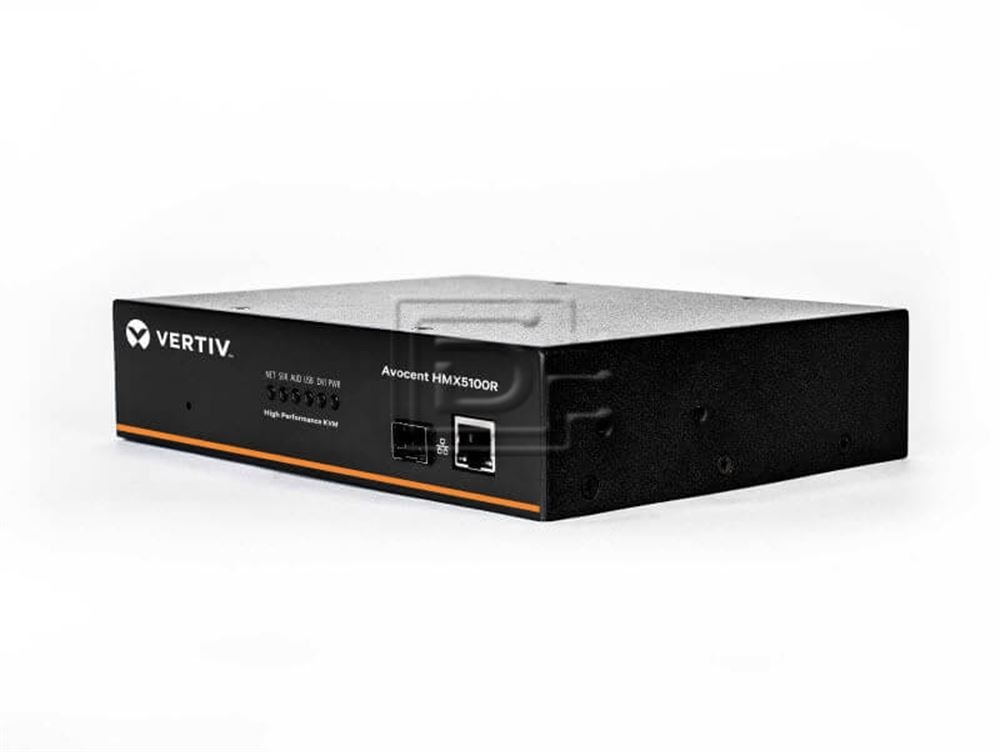

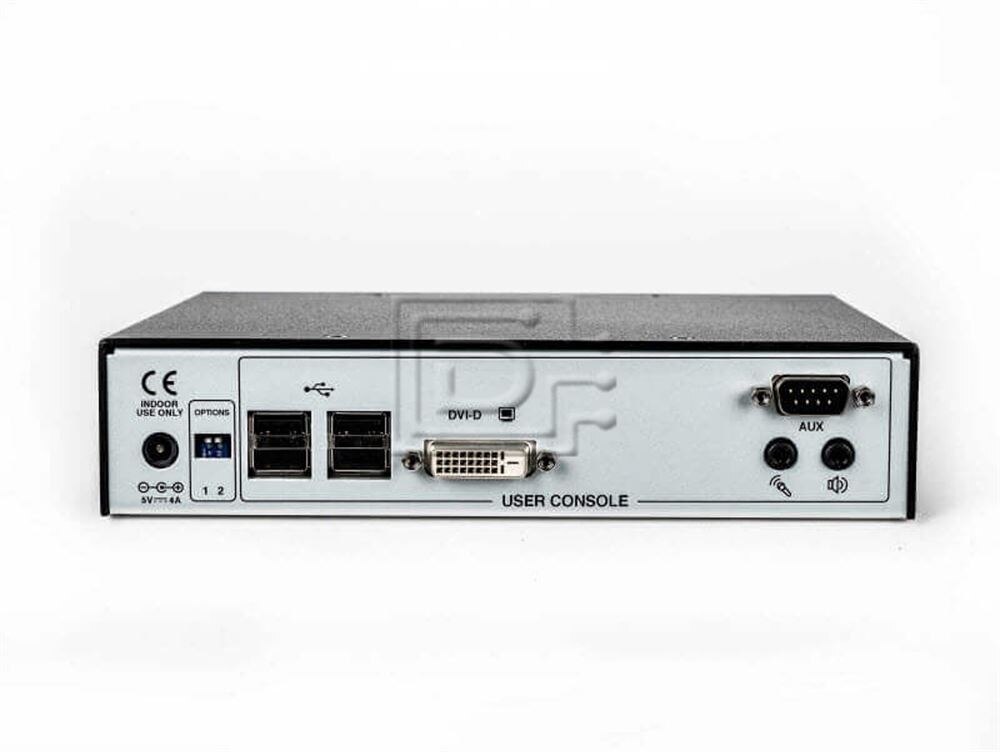

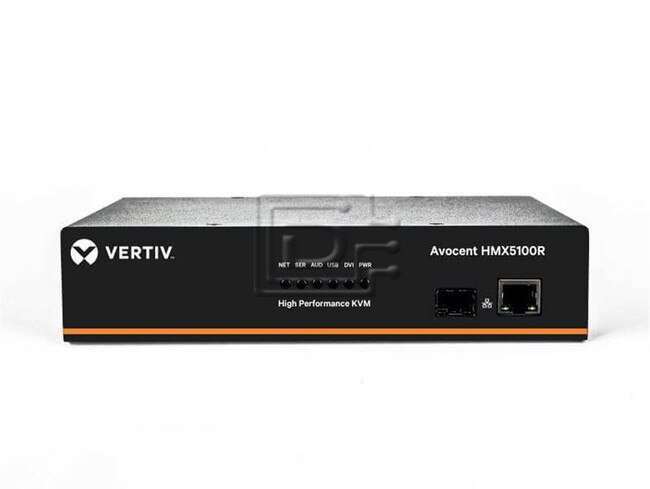

Avocent HMX 5000 HMX5100R-001 high Performance 1U Rack Mountable KVM RX single DVI-D, USB, audio, SFP Receiver - Brand New
Avocent HMX 5000 HMX5100R-001 high Performance 1U Rack Mountable KVM RX / Kernel-based Virtual Machine Receive single Digital Visual Interface - Digital / DVI-Digital / DVI-D, Universal Serial Bus / USB, audio, Small Form Factor Pluggable / SFP Receiver - Brand New
Avocent HMX 5100R High Performance KVM System
The Avocent HMX 5000 Series is a high performance KVM (Keyboard, Video and Mouse) extender that forms part of the matrix Solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining a pixel perfect desktop experience.
Features
- Eliminates Distance Limitations within the LAN
Allows computers and users to be located anywhere on the network - High-Quality DVI Video and Digital Audio
For intensive graphic and audio applications - Centralized Management
Via a single console, including access, desktop pooling and reporting - Centralized, User-Rights Management
HMX system allows user administration and authentication through AD, LDAP, TACACS+, RADIUS, RSA SecureID and NT - Greater Security
128bit AES encryption for secure access - No Dedicated Cabling
Removes the need for dedicated cabling between user and computer - Digital DVI Video
Up to 2560 x 1600or dual sessions at 1920x1200 each - USB Support
USB media and most other USB devices including USB keyboard/mouse
| vocent HMX 5100R High Performance KVM System | |
|---|---|
| Model Number | HMX5100R-001 |
| PRODUCT OVERVIEW | |
| Description | HMX RX single DVI-D, USB, audio, SFP |
| Type | HPKVM |
| Input Ports | USB x 4 |
| Output Ports | Speaker & Mic |
| Video Connection | 1 x DVI-D |
| Video Resolution | 1920x1200 |
| Internal Modem | No |
| Service Processor Support | No |
| Hardware | Industrial spec server with solid state memory |
| POWER DESCRIPTION | |
| Power Supply(s) | Yes |
| Input Power (Maximum) | 5VDC 20W output from power adapter |
| Power | External power IEC input unit, 100- 240VAC 50/60Hz, 1.5A, input to power adapter. 12VDC, 60W output. |
| INTERFACES/PORTS | |
| Network Interface(s) | 2 x RJ45 |
| USB ports | 4 x USB type A |
| USB Hub Support | USB 2.0 with Class Control |
| OPERATIONAL CONDITIONS | |
| Operating Temperature | 0 to 40ºC / 32 to 104ºF |
| Humidity | 10% to 90% non-condensing |
| Storage Temperature | -31° to 158°F (-35° to 70°C) |
| PHYSICAL CHARACTERISTICS | |
| Weight | 2.7 lbs / 1.1 kg |
| Height | 1.76 in / 44 mm |
| Width | 7.92 in / 198 mm |
| Depth | 6 in |
| MISCELLANEOUS | |
| Agency Approvals | CE, FCC |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HMX5100R
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
