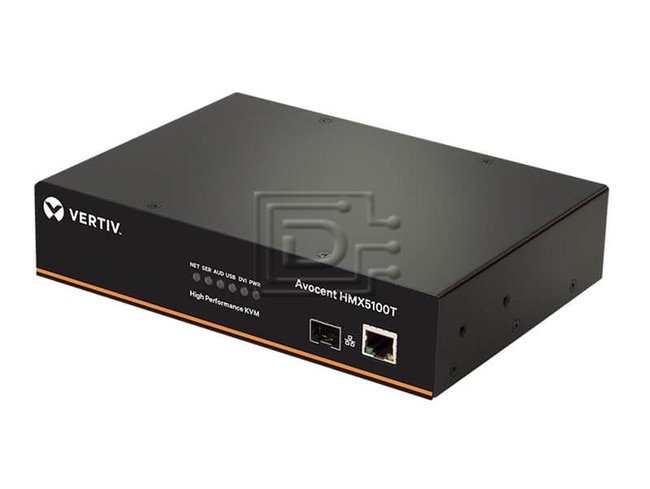

Avocent HMX5100T-001 High Performance KVM Extender

Avocent Part #/MPN: HMX5100T-001

DiscTech Item #: AVO-HMX5100T-001-BN-1Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: USB 2.0, Ethernet RJ45, DVI-D, Serial RS-232 DB9, SFP

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 4

U Height: 1U

Voltage: 5V

Resolution: 1920x1200

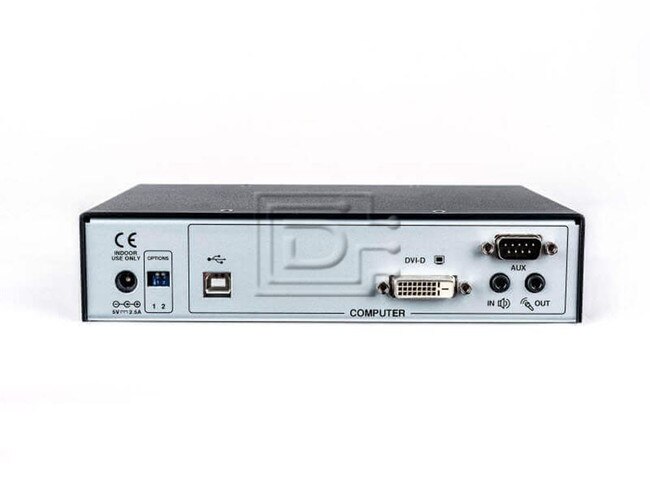

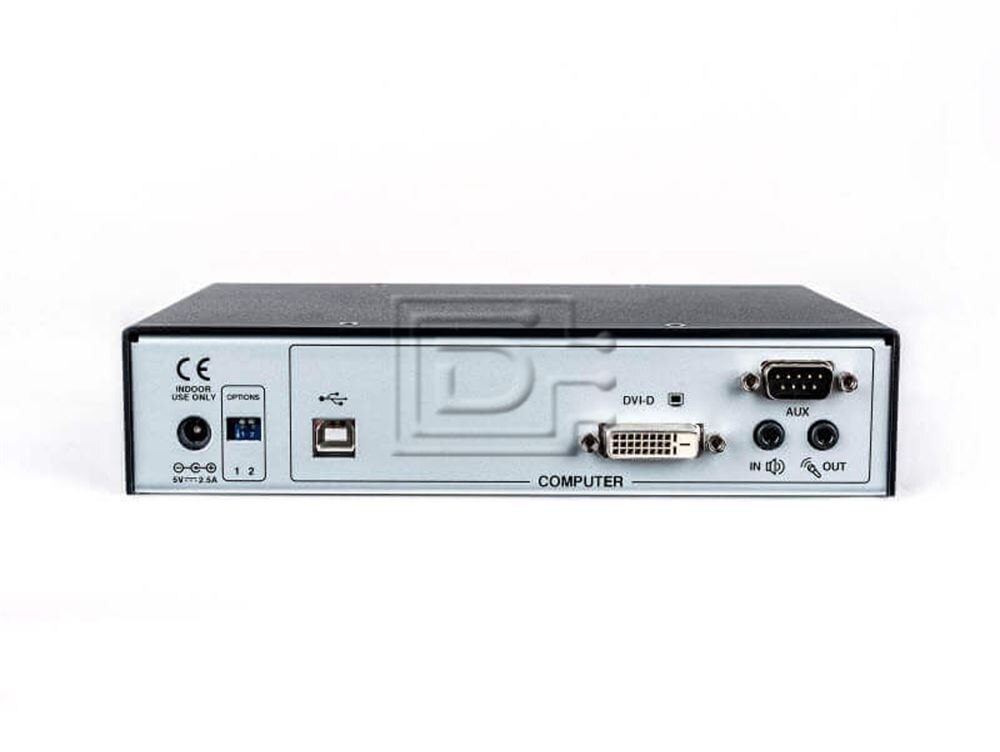

Avocent HMX 5000 HMX5100T-001 High Performance 1U Rack Mountable KVM TX single DVI-D, USB, audio, SFP Extender - Brand New

Avocent HMX 5000 HMX5100T-001 High Performance 1U Rack Mountable KVM TX / Kernel-based Virtual Machine Transmit single Digital Visual Interface - Digital / DVI-Digital / DVI-D, Universal Serial Bus / USB, audio, Small Form Factor Pluggable / SFP Extender - Brand New

Avocent HMX 5100R High Performance KVM System

The Avocent HMX 5000 Series is a high performance KVM (Keyboard, Video and Mouse) extender that forms part of the matrix Solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining a pixel perfect desktop experience.


  • Eliminates Distance Limitations within the LAN
    Allows computers and users to be located anywhere on the network
  • High-Quality DVI Video and Digital Audio
    For intensive graphic and audio applications
  • Centralized Management
    Via a single console, including access, desktop pooling and reporting
  • Centralized, User-Rights Management
    HMX system allows user administration and authentication through AD, LDAP, TACACS+, RADIUS, RSA SecureID and NT
  • Greater Security
    128bit AES encryption for secure access
  • No Dedicated Cabling
    Removes the need for dedicated cabling between user and computer
  • Digital DVI Video
    Up to 2560 x 1600or dual sessions at 1920x1200 each
  • USB Support
    USB media and most other USB devices including USB keyboard/mouse

vocent HMX 5100R High Performance KVM System
Model NumberHMX5100T-001
DescriptionHMX TX single DVI-D, USB, audio, SFP
Input PortsUSB-B x 1
Output PortsSpeaker & Mic
Video Connection1 x DVI-D
Video Resolution1920x1200
Internal ModemNo
Service Processor SupportNo
HardwareIndustrial spec server with solid state memory
Power Supply(s)Yes
Input Power (Maximum)5VDC 20W output from power adapter
PowerExternal power IEC input unit, 100- 240VAC 50/60Hz, 1.5A, input to power adapter. 12VDC, 60W output.
Network Interface(s)2 x RJ45
USB ports4 x USB type A
USB Hub SupportUSB 2.0 with Class Control
Operating Temperature0 to 40ºC / 32 to 104ºF
Humidity10% to 90% non-condensing
Storage Temperature-31° to 158°F (-35° to 70°C)
Weight2.7 lbs / 1.1 kg
Height1.76 in / 44 mm
Width7.92 in / 198 mm
Depth6 in

Agency ApprovalsCE, FCC

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HMX5100T

Weight: 3 lb

Warranty: 1 Year Manufacturer

Brand New
