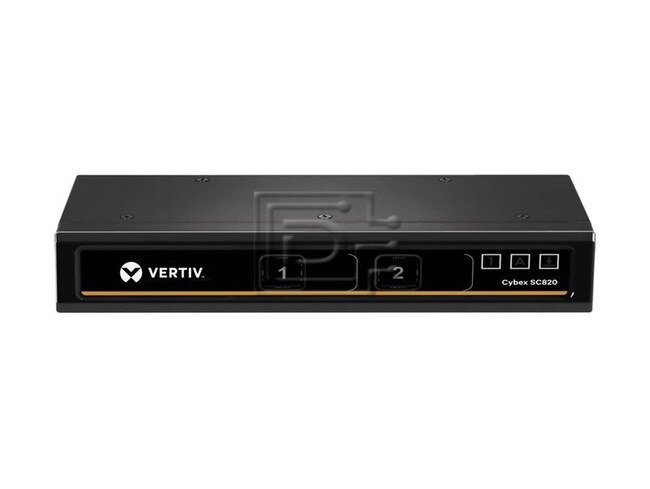

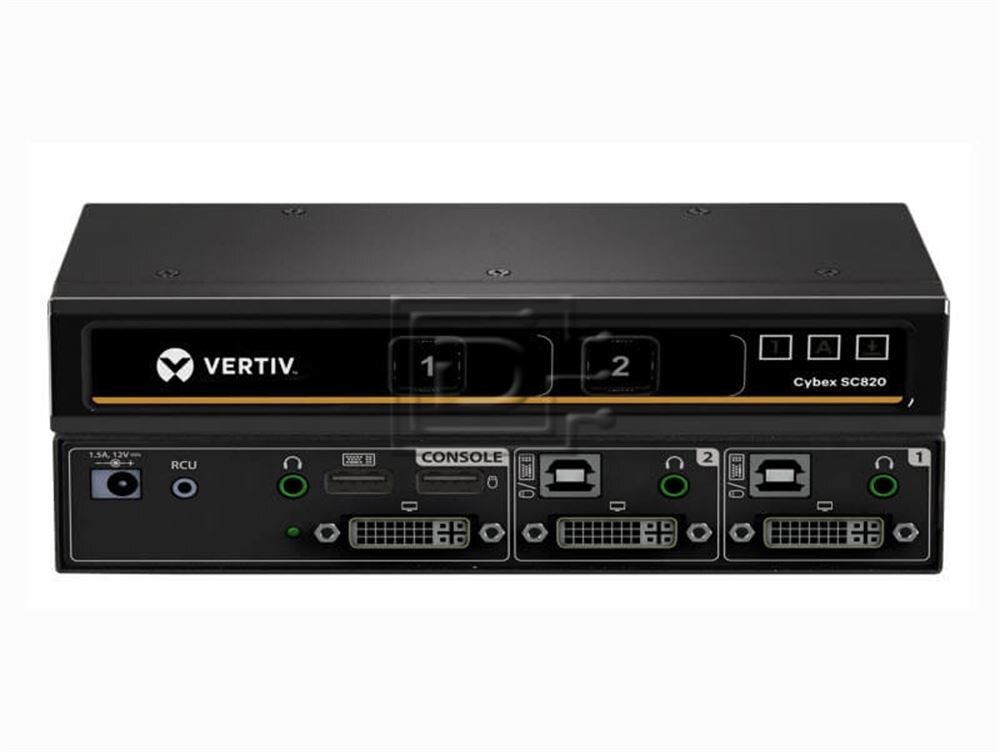

Avocent SC820-001 2 Port Secure KVM Switch

Avocent Part #/MPN: SC820-001

DiscTech Item #: AVO-SC820-001-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: USB 2.0, DVI-I

Encryption/SED Supported

Electrical Interface: USB 3.2 G1x1 - 5Gbps

Bays/Ports/Slots: 2

Voltage: 110-240V Multi

Resolution: 2560x1600

Color: Black

Avocent Cybex SC 800 SC820-001 2 Port DVI-I Secure Desktop KVM Switch - Brand New


Cybex SC 820 Secure Desktop KVM

The Cybex™ SC820 secure desktop KVM is designed to meet the stringent specifications of the U.S. government and certified to the NIAP / Common Criteria protection profile for peripheral sharing switches version 3.0.


  • Outstanding security. Certified to the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for Peripheral Sharing devices
  • Discrete processing paths. Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports
  • Unique NUM Lock, CAPS Lock and Scroll Lock indicators. While the Cybex series maintains unidirectional data flow, it also provides indicators that alert users when the NUM Lock, CAPS Lock or Scroll Lock is on to improve ease of use
  • Support for USB authentication devices. A CAC port provides secure connection to common access cards for authenticating users. An optional Dedicated Periphral Port (DPP) provides a secure connection to common access card readers, as well as additional types of authentication devices including, facial recognition scanners and fingerprint readers
  • Gain true image reproduction and display flexibility. Cybex KVM switches offer the industry’s broadest range of video connections including DVI-I, Display Port, HDMI and support for resolutions up to UHD 4K to make sure image quality is highly accurate and video plays at the highest definition possible.


  • NIAP Protection Profile for Peripheral Switching Devices v. 3.0
  • Two, four or eight secure, isolated channels
  • Resolutions up to UHD 4K or 2560 X 1600
  • Single Head display connections with DVI-I, HDMI 1.4, or DisplayPort 1.2 support
  • CAC/DPP option available
  • Dual monitor support

Cybex SC 820 Secure Desktop KVM
Model NumberSC820-001
Input Ports(2) DVI-I, single-link/dual-link
Video ConnectionDVI-I, single-link/dual-link
Video ResolutionDVI dual-link - 2560 x 1600 @60Hz
Internal Modem(4) USB Type-B, (2) USB Type-A
Power Supply(s)External
Input Power (Maximum)12V DC, 1.5A Power Adapter
USB Ports3 USB 3.0
Operating Temperature0 to 40ºC / 32 to 104ºF
Humidity0-80% non-condensing
Storage Temperature4° to 140°F (-20° to 60°C)
Weight1.0 lbs / 0.5 kg
Height1.7 in / 43 mm
Width7 in / 178 mm
Depth2.4 in
Agency ApprovalsCE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SC820

Weight: 1.5 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
