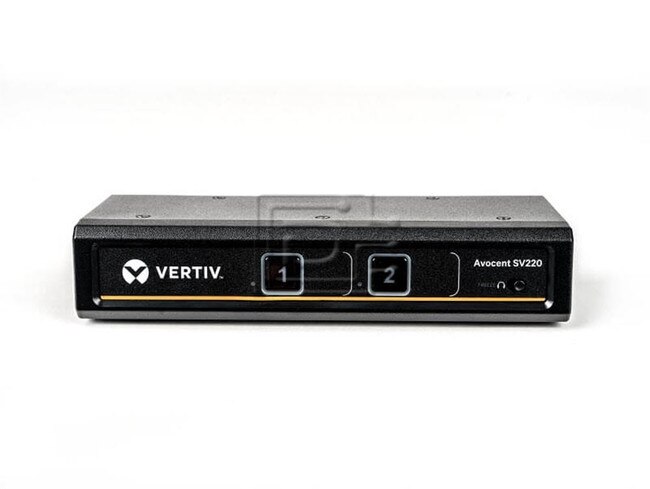

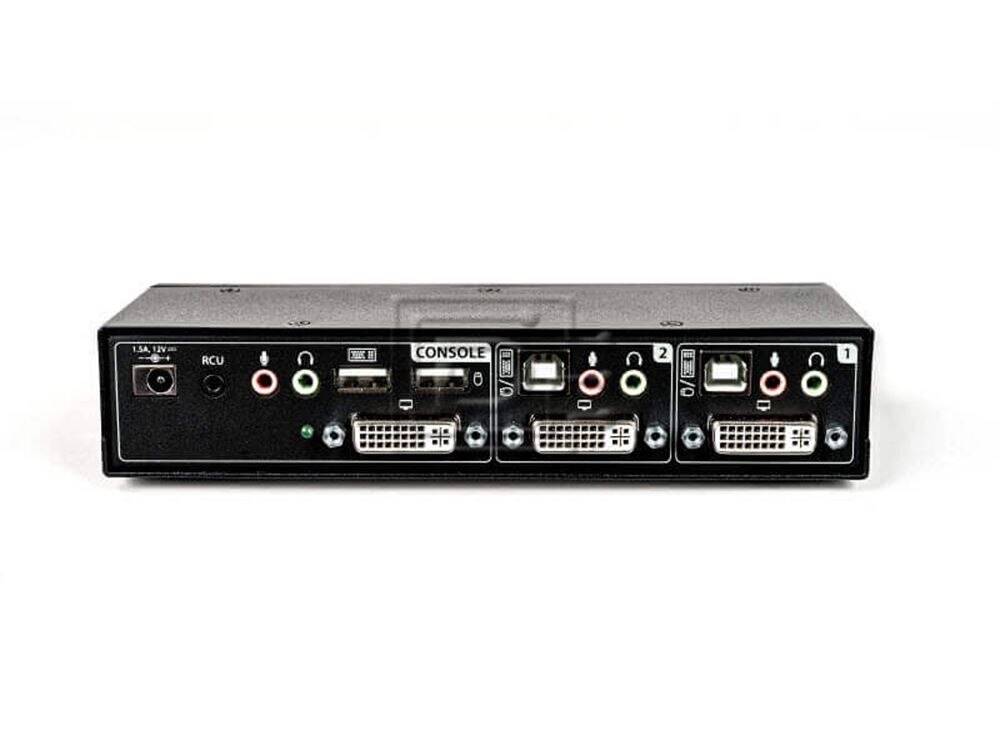

Avocent SV220-001 2-Port Desktop KVM Switch

Avocent Part #/MPN: SV220-001

DiscTech Item #: AVO-SV220-001-BN-2Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: DVI-I, HDMI

Electrical Interface: USB 3.2 G1x1 - 5Gbps

Bays/Ports/Slots: 2

Voltage: 110-240V Multi

Resolution: 2560x1600

Avocent SV200 Series SV220-001 2-Port DVI-I Desktop KVM Switch - Brand New

Avocent SV 200 Series Desktop KVM Switches

Avocent Desktop KVM switches bring order to desktop chaos. Whether you have a business with limited IT resources or a department in a large organization, these KVM solutions simplify access to essential business systems. Each switch supports a wide range of peripherals and up to four different systems. By pushing a button, users gain instant access to multiple computers - all through a single monitor, keyboard and mouse..


  • With Avocent KVM switches, you can:
  • Increase productivity with simple, rapid access to systems and peripherals
  • Gain true image reproduction and display flexibility with support for ultra HD systems and mobile devices
  • Reduce costs with fewer peripheral purchases and easier IT maintenance


  • Access from two to four computers using a single keyboard, monitor and mouse
  • Managed copy and paste of files and text between sources Mobile High-Definition Link (available on 4-port HDMI models) enables viewing of media from mobile devices on connected HDMI monitors
  • Support for DVI-I, HDMI 1.4 and DP1.2 in single and dual head models supporting high resolutions up to UHD 4K
  • Mouse and keyboard switching via emulation assures zero delay in switching time between connected sources
  • Easily switch audio and USB 3.0 (select models) peripherals independently of KVM
  • Three USB 3.0 ports on the front of the 240 KVMs enable easy connectivity to external USB devices, quick data transfer and high speed charging of mobile devices

Model NumberSV220-001
System Connections2
Display Connections1
Display SupportDVI-I
Max ResolutionUHD 4K - 3840X2160 @ 30 Hz (via DVI to HDMI cable)
DVI dual-link - 2560X1600 @ 60 Hz (via DVI cable)
Console PeripheralsUSB Type - A
Computer PeripheralsUSB Type - B
Dedicated Peripheral Portn/a
Audio Input/Output2 x 3.5mm stereo female
EnclosureSteel with Plastic Front Panel
W x D x H in/ (mm)
177 x 61 x 35 mm
7 x 2.4 x 1.4 inches
Weight lbs/ (kg).5 kg (1 lbs)
Power Requirements 12V DC, 1.5A (maximum) power adapter with center-pin-positive polarity
AC Input Voltage100 to 240V AC
Operating Temperature32° to 104°F; 0° to 40°C
Storage Temperature -4° to 140°F; -20° to 60°C
Humidity0-80% RH, non-condensing
CetificationsCE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SV220

Weight: 1.5 lb

Warranty: 2 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

2 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
