Avocent SV240D-001 4-Port Desktop Switch

Avocent Part #/MPN: SV240D-001

DiscTech Item #: AVO-SV240D-001-BN-2Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: USB 1.1, USB 2.0, USB 3.0 3.1 3.2, DisplayPort, 3.5mm Headphone

Electrical Interface: USB 3.2 G1x1 - 5Gbps

Bays/Ports/Slots: 4

Voltage: 110-240V Multi

Resolution: 3840x2160

Avocent SV200 Series SV240D-001 4-Port DP 1.2 Desktop KVM Switch - Brand New

Avocent SV200 Series SV240D-001 4-Port DisplayPort / DP 1.2 Desktop KVM / Kernel-based Virtual Machine Switch - Brand New

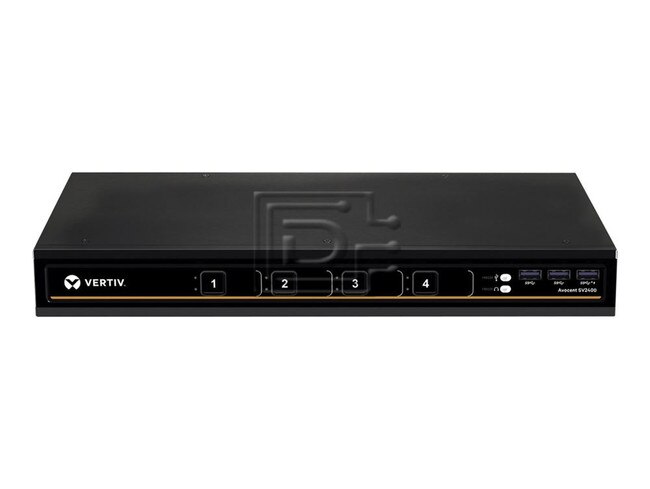

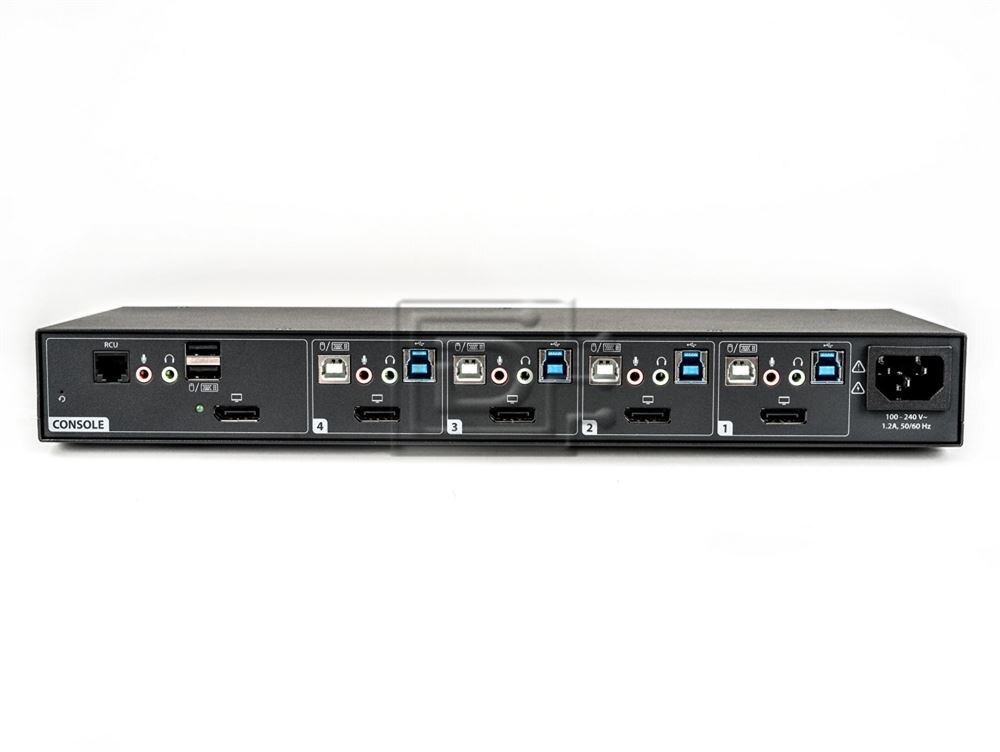

Avocent SV 240D KVM Switch

The Avocent SV240D desktop KVM switch helps bring order to the desktop


With Avocent KVM switch, you can

  • Increase productivity with simple, rapid access to systems and peripherals
  • Gain true image reproduction and display flexibility with support for ultra HD systems and mobile devices
  • Reduce costs with fewer peripheral purchases and easier IT maintenance


  • Advanced video support for resolutions up to UHD 4K assures image quality is highly accurate and video plays at the highest definition possible.
  • Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format.
  • Independent audio and USB switching lets users freeze audio and USB 3.0 peripherals while simultaneously working on a different system.
  • Instant monitor, mouse and keyboard switching via emulation assures zero delay when switching between systems.

Model NumberSV240D-001
System Connections4
Display Connections1
Display SupportDP 1.2
Max ResolutionSupporting UHD 4K resolutions up to 3840x2160 @ 30Hz
Console PeripheralsUSB Type - A
Computer PeripheralsUSB Type - B
Dedicated Peripheral Port3 x USB Super Speed
Audio Input/Output2 x 3.5mm stereo female
EnclosureSteel with Plastic Front Panel
W x D x H in/ (mm)
13.7x5x1.7 inches
Weight lbs/ (kg)1.5 kg (3 lbs)
Power Requirements 35W Max Internal
AC Input Voltage100 to 240V AC
Operating Temperature32° to 104°F; 0° to 40°C
Storage Temperature -4° to 140°F; -20° to 60°C
Humidity0-80% RH, non-condensing
CetificationsCE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SV240D

Weight: 3.5 lb

Warranty: 2 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

2 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
