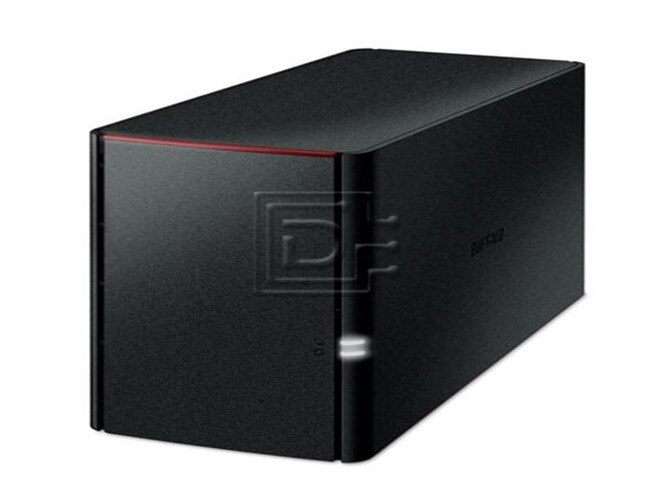

BUFFALO LINKSTATION 220 Series LS220D0402B Desktop 2-Bay 4TB Gigabit Ethernet NAS Server

Buffalo Technology Part #/MPN: LS220D0402B

DiscTech Item #: BUF-LS220D0402B-BN-2Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 2TB

Interface Types: SATA, USB 2.0, USB 3.0 3.1 3.2, Ethernet RJ45

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 256MB

Bays/Ports/Slots: 2

Voltage: 110-240V Multi

Color: Black

BUFFALO LINKSTATION 220 Series LS220D0402B Desktop 2-Bay 4TB Gigabit Ethernet NAS Server - Brand New

BUFFALO LINKSTATION 220 Series LS220D0402B Desktop 2-Bay 4TB Gigabit Ethernet NAS Server - Brand New (2 x 2TB) Gigabit Ethernet Entry Level Small Business Network Attached Storage Server - Brand New

Features and Benefits

Network Attached Storage LinkStation™ 220 series

Buffalo™ Technology’s LinkStation™ (LS220D series) combines an incredibly easy User Interface with the convenience, security and capacity of dual-bay, RAID-ready Network Attached Storage.

The LS220D is affordable, fast, and primed for intensive data storage tasks. It’s pre-configured and can even be set up via Smartphones with a new mobile-optimised and intuitive interface. And with two hard drives users can

choose RAID 0 for enhanced performance or RAID 1 for mirroring as part ofa backup solution.

The LS220D comes with Buffalo’s free personal private cloud: Wherever you are, all your data is accessible from any web browser or via Buffalo’s WebAccess Apps for Android®, iOS, or Windows® Phone. And with Buffalo’s Private Cloud solution users’ data stays protected in the physical location of the device – not off-site in a third party’s data centre.

Buffalo’s new LinkStation™ can also stream up to 4 HD films simultaneously allowing each family member to watch their favourite film, on their own device, at the same time. The LS220 is DLNA and Twonky Beam-ready and can also stream high-end DSD audio files without losing quality.

Buffalo™ Technology’s LS220 series is a two bay Network Attached Storage device available as a diskless enclosure, or fully populated with 2, 4, 6, or 8TB capacity.

  • Two bay NAS, sold as a diskless enclosure or fully populated with 2, 4, 6, or 8TB capacity.
  • High-performance Dual Issue CPU: Marvell Armada 370, 800MHz, 256MB DDR3 Ram
  • New easy-to-use Mobile-optimized interface facilitates easy set up with Smartphones
  • Read speeds up to 100MB/s, write speeds up to 50MB/s*
  • Buffalo’s Private Cloud solution makes data accessible from anywhere with web browsers or via free Buffalo™ WebAccess Apps for Tablets and Smartphones
  • Provides a central location – and sharing capability across your network – for growing media libraries including iTunes® or any DLNA media server client
  • Also supports Twonky Beam
  • Award-winning NovaBACKUP® Buffalo Edition for PC: 5 licenses included
  • Time Machine® ready for multi-client Mac backups
  • 2 year warranty


  • Windows® 10 / 8.1 / 8 / 7 / Vista
  • Mac OS X 10.6 - 10.10

TeraStation™ 1200
Network Attached Storage
Model NumberLS220D0402B
CPUMarvell Armada 370, Dual-issue ARMv7
Number of Drives2 x 2TB  (4TB Total)
Drive InterfaceSATA 3Gb/s
Hard Drive Capacities 1, 2, 3, 4TB
Total Capacities2, 4, 6, 8TB
Hot SwapChange drives in RAID without down time
HDD EncryptionData protection: Data cannot be read on other machines
Standard ComplianceIEEE802.3ab
IEEE802.3 Standard
Connector TypeRJ45
Number of Ports1
Data Transfer Rates10/100/1000 Mbps
Standard ComplianceUSB2.0
Connector TypeUSB type A
Number of Ports1x USB 2.0
Data Transfer Rates480Mbps
AD IntegrationNo
Time SynchronisationNTP
Supported OSWindows® 10 / 8.1 / 8 / 7 / Vista / Mac OS X 10.6 - 10.10
Dimensions87 x 205 x 128 mm
Weight1.7 kg (fully populated)
Operating Environment5-35 C, 20-80% (non-condensing)
Power ConsumptionIn operation 19 Watts
In standby 13 Watts
In sleep mode 0.9 Watts
Power SupplyExternal, AC 100-240V, 50/60Hz
WebAccessAndroid/iOS/Windows Apps, HTTP/HTTPS

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 6 lb

Warranty: 2 Year Manufacturer
