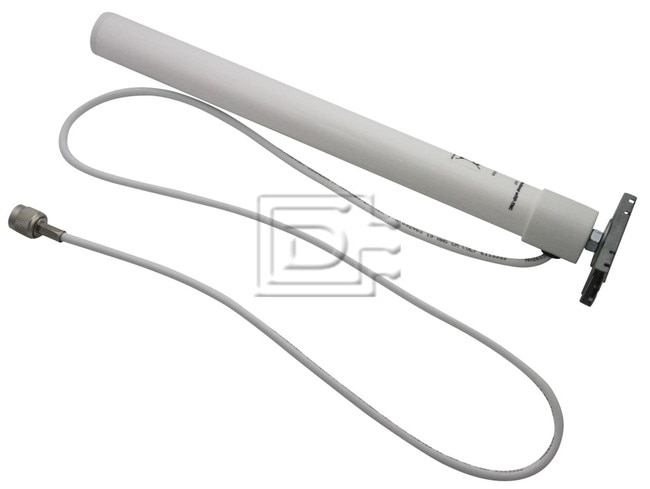

Cisco Aironet AIR-ANT1728 High-Gain Omni Directional Antenna 2.4GHz


DiscTech Item #: CIS-AIR-ANT1728-UP-OE


Interface Types: Ethernet RJ45

Cisco AIR-ANT1728 Aironet High-Gain Omni Directional 2.4 GHz Antenna 5.2 dBi - Used

Cisco AIR-ANT1728 Aironet High-Gain Omni Directional 2.4 GHz Antenna 5.2 dBi - Used

Every wireless LAN deployment is different. When engineering an in-building solution, varying facility sizes, construction materials, and interior divisions raise transmission and multipath considerations. When implementing a building-to-building solution, distance, physical obstructions between facilities, and number of transmission points must be taken into account.

Cisco is committed to providing the best access points, client adapters, and bridges in the industry-and is also committed to providing a complete solution for any wireless LAN deployment. Cisco has the widest range of antennas, cable, and accessories available from any wireless manufacturer.
Cisco offers a complete range of 2.4 GHz and 5 GHz antennas for access point and bridge equipment that enable a customized wireless solution for almost any installation.
Cisco Aironet 2.4-GHz access point antennas are compatible with all Cisco RP-TNC-equipped access points. The antennas are available with different gain and range capabilities, beam widths, and form factors. Coupling the appropriate antenna and access point allows for efficient coverage in any facility, as well as better reliability at higher data rates (Table 1).
Cisco Aironet 5 GHz access point antennas have RP-TNC connectors and are compatible with Cisco Aironet 1200 Series and 1230AG Series access points when equipped with a RM22A radio module. Selection of the appropriate antenna should provide optimal coverage for the desired application in the 5 GHz frequency band.

Omnidirectional ceiling mount
Indoor midrange antenna, typically hung from crossbars of drop ceilings
5.2 dBi
2.4 GHz
360°H, 38°V
Length: 9 in. (22.9 cm)
Diameter: 1 in. (2.5 cm)
Cable length: 3 ft (0.91 m)
Weight: 4.6 oz (130 g)

Weight: 2.5 lb

Warranty: 1 Year DiscTech

Used Pull

Condition Levels Explained

The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
