CISCO Part #/MPN: ANT5114P2M-N
DiscTech Item #: CIS-ANT5114P2M-N-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: Ethernet RJ45
Bays/Ports/Slots: 2

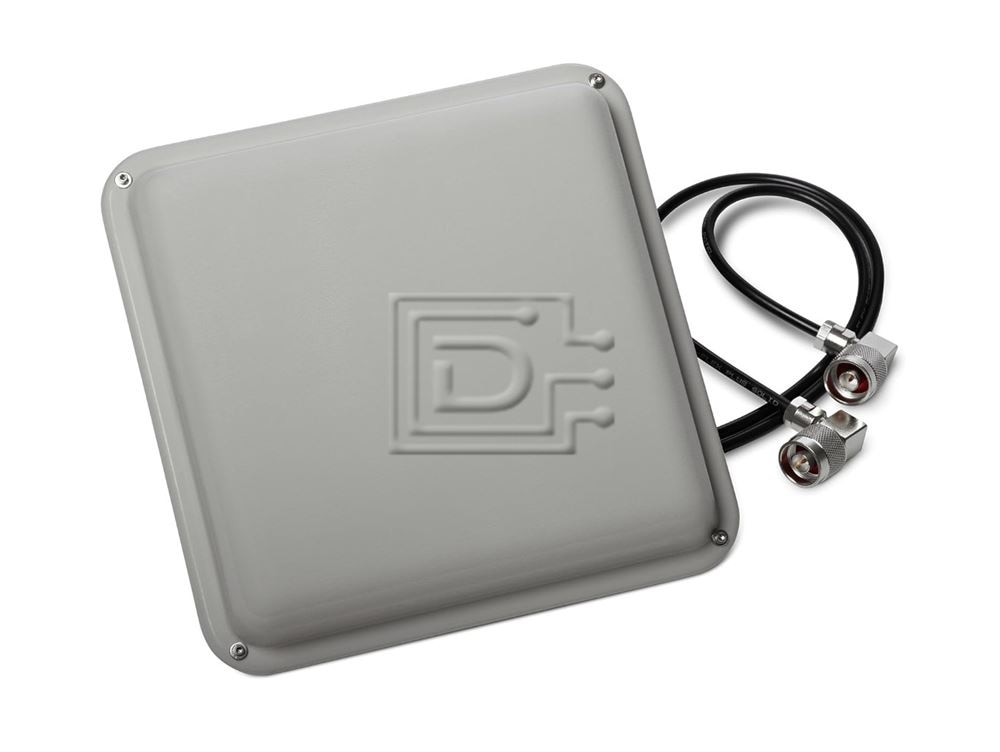

Cisco Aironet ANT5114P2M-N 5-GHz 2-Element Directional Wireless Antenna 14 dBi - Brand New
Cisco Aironet ANT5114P2M-N 5-GHz 2-Element Directional Wireless Antenna 14 dBi - Brand New
Cisco Aironet 5-GHz 14-dBi Directional Antenna
This describes the Cisco Aironet AIR-ANT5114P2M-N 5-GHz 14-dBi 2-Port Directional antenna with N-type connectors, and provides specifications and mounting instructions. The antenna operates in the 5 GHz frequency band and is designed for use in outdoor environments.
System Requirements
This antenna is designed for use with Cisco Aironet access points and bridges, but can be used with any 5 GHz Cisco Aironet radio device that uses an N-male connector.
| Cisco Aironet 5-GHz 14-dBi Directional Antenna | |
|---|---|
| Model Part# | ANT5114P2M-N |
| Technical Specifications | |
| Antenna Type | 2-Element Patch Array |
| Operating frequency range | 5150–5900 MHz |
| Nominal Input Impedance | 50 Ohms |
| Peak Gain | 14 dBi |
| Polarization | Linear Dual |
| Elevation Plane 3-dB Beamwidth | 30° |
| Azimuth Plane 3-dB Beamwidth | 30° |
| Sidelobe level | < –15 dBc |
| Front-to-Back Ratio | > 25 dB |
| Cable length and type | 30 in. (76.2 cm)outdoor rated Coax |
| Connector Type | N Male |
| Length | 7.8 in. (19.8 cm) |
| Width | 7.8 in. (19.8 cm) |
| Height | 1.2 in. (3 cm) |
| Weight | 21.6 oz. (0.61 kg) |
| Operating Temperature Range | -40–131°F (-40–55°C) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 2 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
