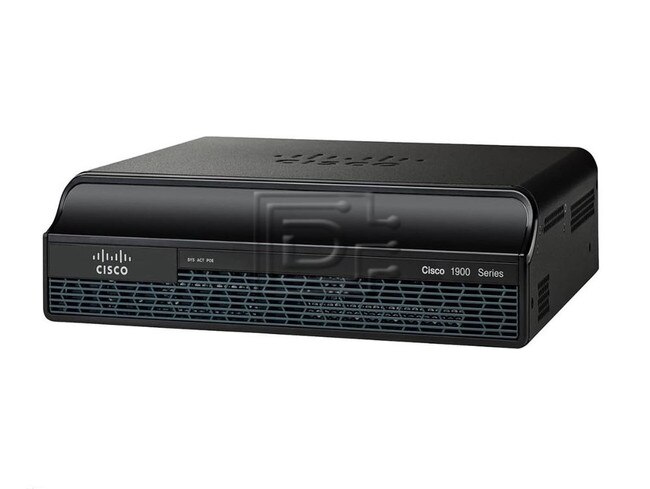

Cisco C1-CISCO1941-K9 Integrated Service Router

CISCO Part #/MPN: C1-CISCO1941-K9

DiscTech Item #: CIS-C1-CISCO1941-K9-BN-OE


$1,175.00
  • Low Stock:Call for ETA
$1,175.00

Interface Types: USB 2.0, Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 512MB

Bays/Ports/Slots: 2

U Height: 2U

Wattage/VA: 35W

Voltage: 110-240V Multi

Cisco One C1-CISCO1941/K9 1941 1900 Series ISR - 2 GE, 2 EHWIC slots, 512MB DRAM, 256MB Flash, IP Base - Brand New

Cisco One C1-CISCO1941/K9 1941 1900 Series Integrated Service Router - 2 Gigabit Ethernet, 2Enhanced High-speed WAN Interface Card slots, 512MB DRAM, 256MB Flash, Internet Protocol Base - Brand New

The platforms are architected to enable the next phase of branch-office evolution, providing rich media collaboration and virtualization to the branch while maximizing operational cost savings The Integrated Services Routers Generation 2 platforms are future-enabled with multicore CPUs, Gigabit Ethernet switching with enhanced POE, and energy monitoring and control capabilities while enhancing overall system performance. Overall, the Cisco 1900 series offer unparalleled total cost of ownership savings and network agility through the intelligent integration of market leading security, unified communications, wireless, and application services.

This Cisco 1900 series integrated services router offers embedded hardware encryption acceleration, optional firewall, intrusion prevention, and application services. In addition, the platforms support the industries widest range of wired and wireless connectivity options such as T1/E1, xDSL, 3G, and GE.

Cisco ONE ISR 1941 Rack Mountable Desktop Router
Model NumberC1-CISCO1941/K9
SERVICE AND SLOT DENSITY
Embedded hardware-based crypto acceleration (IPSec)Yes
Total Onboard Gigabity Ehternet 10/100/1000 WAN ports2
RJ-45 Baed Ports2
SFP Based Ports2
SM Slots0
Double-Wide SM Slots0
EHWIC Slots2
Double-wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots1
ISM Slots1 (0 on Cisco 1941W)
Memory (DDR2 Error Correction Code [ECC] ECC DRAMDefault: 512 MB
Maximum: 2.0 GB
Compact Flash (External)/td>
  • Slot 1: Default - 256 MB, Maximum - 4 GB
  • Slot 2: Default - None, Maximum - 4 GB
  • External USB Flash Memory Slots (Type A)2
    USB Console Port (Type B) (up to 115.2 kbps)1
    Serial Console Port (up to 115.2 kbps)1
    Serial Auxiliary Port (up to 115.2 kbps1
    Power Supply OptionsAC, POE
    Redundant Power Supply SupportNo
    POWER SPECIFICATIONS
    Dimensions (H x W x D)3.5in x 13.5in x 11.5in
    Rack Height2 RU
    Rack-mount 19in (48.3cm) EIAIncluded
    Wall-mount (refer to installation guide for approved orientation)Yes
    Weight - with AC Power supply (no modules)12 lbs
    Weight - with POE Power supply (no modules)12.8 lbs
    Maximum Weight - Fully Configured14 lbs
    AirflowFront to Side
    ENVIRONMENTAL SPECIFICATIONS
    OPERATING CONDITON
    Temperature - 5906 feet (1800 m) max. altitude0 - 40°C
    32-104˚F
    Temperature - 9843 feet (3000 m) max. altitude0 - 25°C
    32 - 77°F
    Altitude3000 m
    10,000 ft
    Humidity10 to 85% RH
    Acoustic: Sound Pressure (Type/Max)26/46 dBA
    Acoustic: Sound Power (Typ/Max)36/55 dBA
    TRANSPORATION/STORAGE CONDITION
    Temperature-40 - 70°C
    -40 - 158°F
    Humidity5 to 95%RH
    Altitude4570 m
    15,000 ft
    REGULATORY COMPLIANCE
    Safety
  • UL 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • EN 60950-1
  • AS/NZS 60950-1
  • IEC 60950-1
  • EMC
  • 47 CFR, Part 15
  • ICES-003 Class A
  • EN55022 Class A
  • CISPR22 Class A
  • AS/NZS 3548 Class A
  • VCCI V-3
  • CNS 13438
  • EN 300-386
  • EN 61000 (Immunity)
  • EN 55024, CISPR 24
  • EN50082-1
  • Telcom
  • TIA/EIA/IS-968
  • CS-03
  • ANSI T1.101
  • ITU-T G.823, G.824
  • IEEE 802.3
  • RTTE Directive
  • *** NOTE ***
    The Cisco 1941 cannot have ISM and WLAN on the same chassis.


    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: C1-CISCO1941/K9

    Weight: 15 lb

    Warranty: 1 Year DiscTech

    Brand New

    1 Year DiscTech Warranty
