Cisco Catalyst WS-X4248-RJ45V line card

CISCO Part #/MPN: WS-X4248-RJ45V

DiscTech Item #: CIS-WS-X4248-RJ45V-UP-OE


Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Fast - 100Mbps

Bays/Ports/Slots: 48

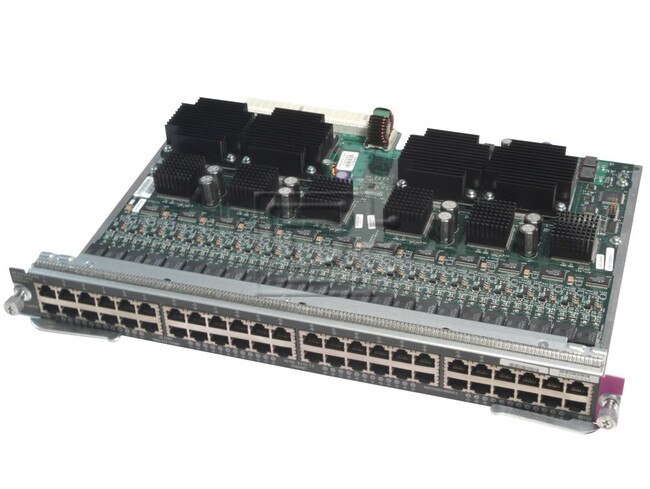

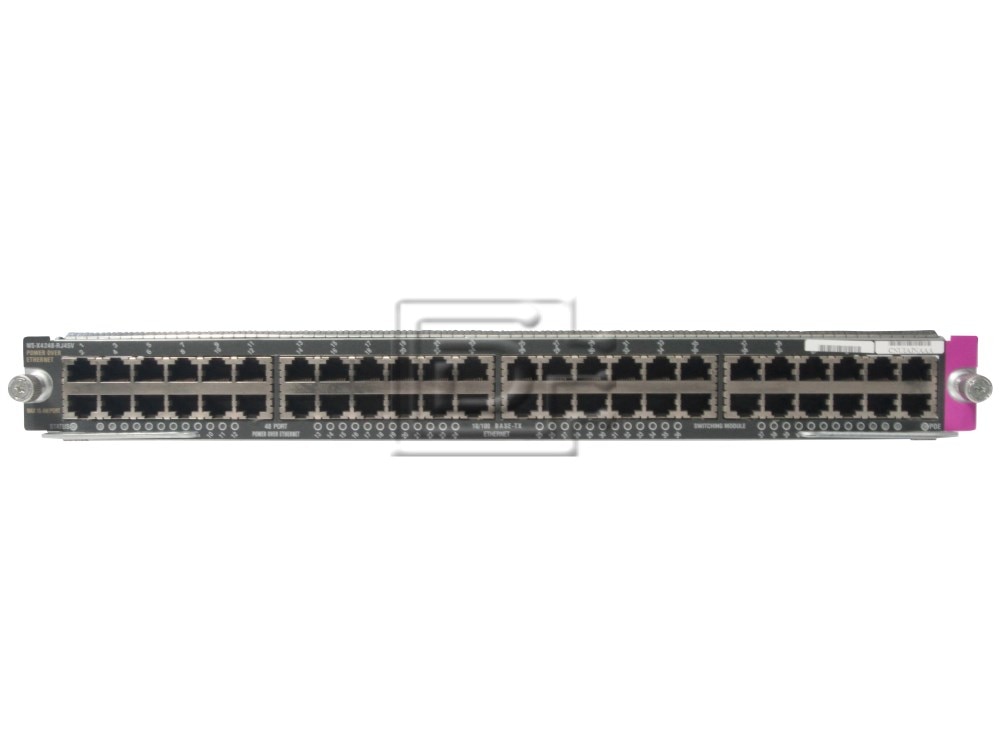

Cisco WS-X4248-RJ45V 48port Fast Ethernet Line card with PoE - Used Pull

The Cisco® Catalyst® 4500 Series Switch expands Power-over-Ethernet (PoE) support. PoE, offers greater flexibility and mobility to users by delivering standards-based integrated power to increase network flexibility and usefulness with the support of new devices, services, and applications. IEEE 802.3af PoE compliance is provided in the Catalyst 4500 Series with the introduction of three new line cards and Cisco IOS® Software Release 12.2(18)EW and CatOS Software Release 8.3(1)GLX to meet the needs of enterprise and commercial customers. Cisco recommends transitioning to these new standards based linecards, especially if you are considering the existing Catalyst 4500 prestandard PoE module ( WS-X4148-RJ45V ) for deployment in your network.

Cisco PN: WS-4248-RJ45V

The WS-X4248-RJ45V 48-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching module has the following specifications:


Module type

10/100BASE-TX Fast Ethernet switching module with IEEE 802.3af PoE

Port duplex mode

Half or full duplex mode

Port speed

10 or 100 Mbps

Number of ports


Connector type


Cable type


Power over Ethernet

Up to 15.4 W per powered device on all 48 ports
(to a 312 W total on the Catalyst 4006)

Power regulation

Internal on the switching module

Click here to view the manufacturer's item description/brochure

Weight: 5 lb

Warranty: 1 Year DiscTech

Used Pull

Condition Levels Explained

The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
