Cisco HWIC-2FE 2-Port Interface Card

Cisco HWIC-2FE 2-Port Fast Ethernet High Speed WAN Interface Card - Refurbished

Cisco HWIC-2FE 2-Port Fast Ethernet High Speed WAN Interface Card - Refurbished

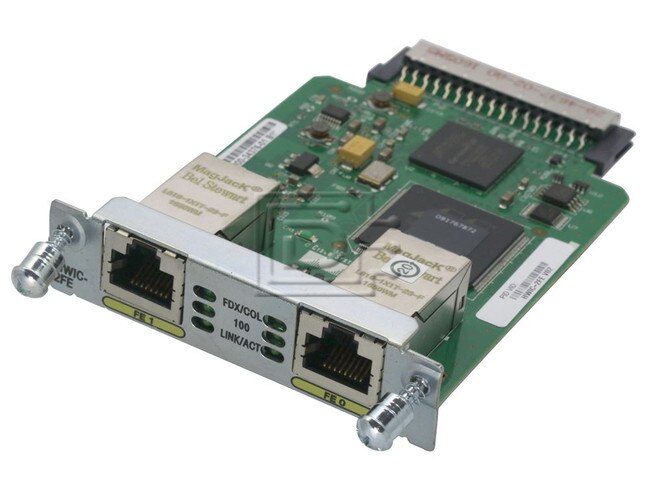

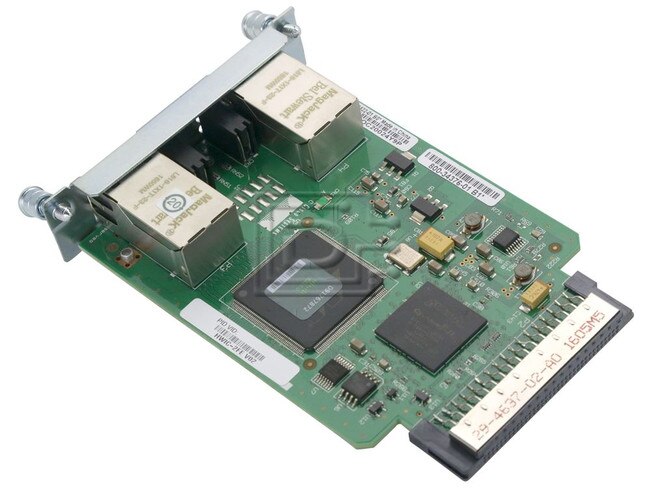

The Layer 3 Cisco® 1- and 2-Port Fast Ethernet High-Speed WAN interface cards (HWICs) (see Figures 1 and 2) supported on Cisco Integrated Services Routers offer small-to-large-sized businesses and enterprise branch-office customers the option to add Layer 3 routed ports with many advanced features, including quality-of-service (QoS) and rate-limiting capabilities.

Feature Highlights The Fast Ethernet routed ports on the HWICs have the same characteristics and features as the onboard LAN interfaces for the integrated-services-router platforms. Along with Layer 3 connectivity, such as per-port access control lists (ACLs), routing, and IP addressing, these HWICs provide functions equivalent to those of onboard Fast Ethernet routed ports.

Specifications

Ethernet and VLAN Features

• IEEE802.3 with IEEE802.2 Service Advertising Protocol (SAP)
• IEEE802.3 with IEEE802.2 and Subnetwork Access Protocol (SNAP)
• IEEE 802.1Q VLAN tagging
• Autosensing, autonegotiation, and automatic media-dependent interface crossover
• (Auto-MDIX)
• Unique MAC address (not shared with any other interface on the router), assigned MAC address to interface, and subinterfaces
• Network Management Features
• CiscoWorks
• Simple Network Management Protocol (SNMP) support
• Cisco NetFlow accounting

QoS Features

• Weighted Random Early Detection (WRED)
• Precedence setting and mapping (802.1p)
• Committed access rate (CAR)
• ACLs
• MAC address filtering
• Extended ACLs
• Voice and remaining QoS features, per platform and per Cisco IOS Software release

Additional Features

• Cisco Group Management Protocol and Internet Group Management Protocol (IGMP) for multicasting
• High availability, supporting Hot Standby Router Protocol (HSRP), Virtual Router Redundancy Protocol (VRRP), and Gateway Load Balancing Protocol (GLBP)
• MPLS features as supported by platform
• Generic routing encapsulation (GRE)
• IPv6
• IP Security (IPsec) (crypto map)
• Layer 2 Tunneling Protocol Version 3 (L2TPv3) tunnel termination
• Dynamic Host Configuration Protocol (DHCP) client and server
• Network Address Translation (NAT)
• Generic Traffic Shaping (GTS)
• Media Gateway Control Protocol (MGCP) bind
• IBM features
• Point-to-Point Protocol over Ethernet (PPPoE) client
• Bridging

MIBs Supported by the HWIC-1FE and HWIC-2FE

• ENTITY-MIB
• IF-MIB
• OLD-CISCO-CHASSIS-MIB
• RMON-MIB
• ETHERLIKE-MIB
• CISCO-ENT-ASSET-MIB
• CISCO-ENTITY-FRU-CONTROL-MIB

Agency Approvals

• UL 1950 (United States)
• CSA-C22.2 #950 (Canada)
• EN60950 (Europe)
• TUV GS (Germany)
• IEC 950 (International)

QoS Immunity

• EN300386
• EN55024 and CISPR24
• EN50082-1

Emissions

• FCC Part 15
• Class A ICES-003
• Class AEN55022
• Class A CISPR22
• Class AAS and NZS 3548
• Class AVCCI
• Class A EN 300386 EN61000-3-3 EN61000-3-2

Physical Specifications

Form Factor

• Singlewide HWIC form factor

Dimensions (W x D x H)

• 3.08 x 4.74 x 0.76 in.

Weight

• 1-Port: 0.14 lbs or 2.24 oz.
• 2-Port: 0.16 lbs or 2.56 oz.

Environmental Specifications

• Operating temperature: 32 to 104°F (0 to 40°C)
• Storage temperature: -4 to 149°F (-20 to 65°C)
• Relative humidity: 10 to 90%, noncondensing

Weight: 1 lb

Warranty: 1 Year DiscTech

Refurbished

1 Year DiscTech Warranty
