Cisco Nexus 92160YC-X 48 SFP+ 10 Gbps Downlink Ports 6 Uplink 40 - 100 Gigabit Speeds 2x Managed Ports L3 Switch

CISCO Part #/MPN: N9K-C92160YC-X

DiscTech Item #: CIS-N9K-C92160YC-X-BN-OE

$5,995.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$5,995.00

Interface Types: Ethernet RJ45, SFP

Electrical Interface: Ethernet 10Gigabit - 10Gbps

Bays/Ports/Slots: 48

U Height: 1U

Voltage: 110-240V Multi

Cisco Nexus 92160YC-X 48 SFP+ 10 Gbps Downlink Ports 6 Uplink 40 - 100 Gigabit Speeds 2x Managed Ports L3 Switch - Brand New

Cisco Nexus 92160YC-X 48 SFP+ 10 Gbps Downlink Ports 6 Uplink 40 - 100 Gigabit Speeds 2x Managed Ports L3 Switch

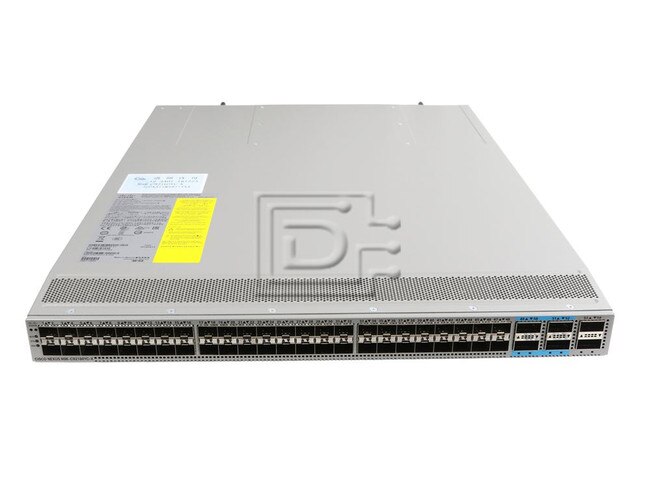

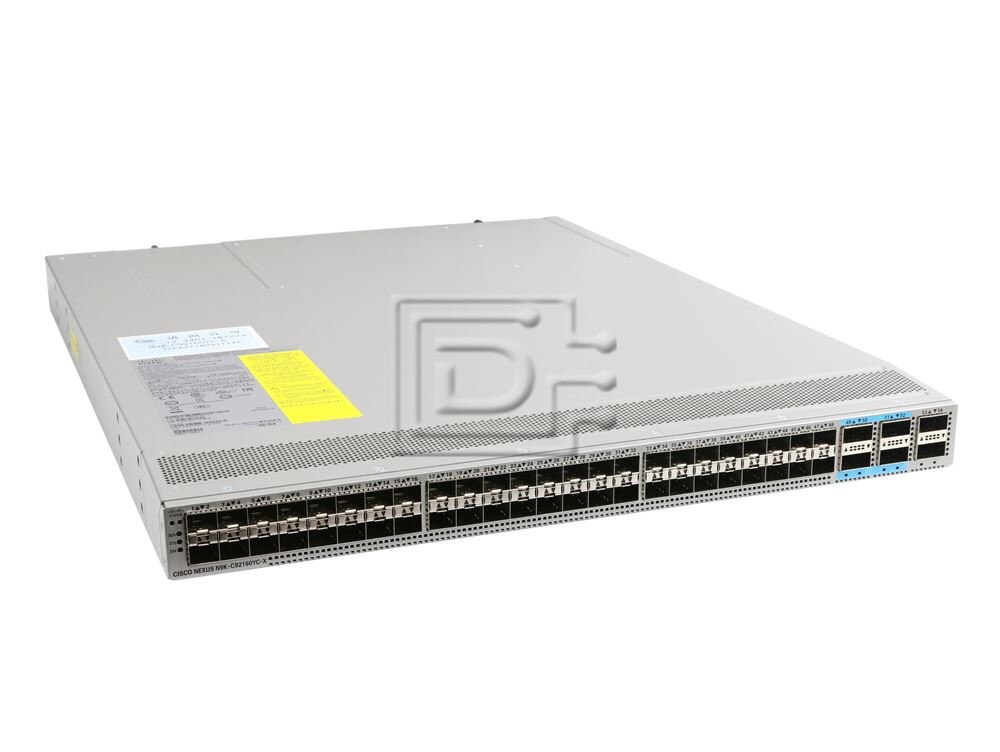

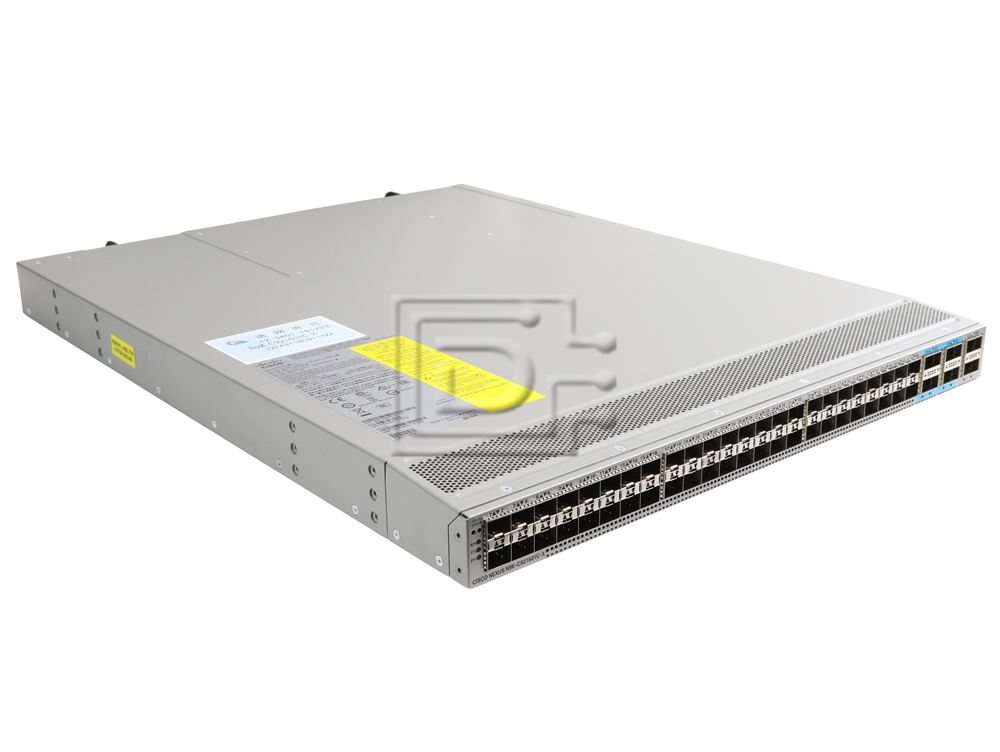

The Cisco Nexus 92160YCX switch is a 1 rack unit (RU) switch that has 48 SFP+ downlink ports supporting Gigabit speeds, six uplink ports supporting 40- or 100-Gigabit speeds, two network management ports (RJ-45 and SFP+), one RS-232 console port for setting the initial switch configuration, and one USB port for saving or loading switch configurations.

Main Features
  • X
  • Switch
  • L3
  • managed
  • 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+ (uplink) + 4 x 100 Gigabit QSFP
  • rack-mountable


    92160YC-X
    • 16GB RAM
    • 20MB Flash
    • 3.2Tbps Bandwidth
    • Rapid Per-VLAN Spanning Tree Plus instances: 507, Virtual Routing and Forwarding (VRF) entries: 16000, Virtual interfaces (VLANs): 4096, ACL entries (egress): 2000, Longest prefix match (LPM) entries (IPv4): 16000, Multiple Spanning Tree Protocol instances: 64, Longest prefix match (LPM) entries (IPv6): 20000, IGMP snooping entries: 32000, IPv4 routes (Multicast): 32000, Equal-Cost Multipathing (ECMP) ways: 64, ACL entries (ingress): 4000
    • 48x 10Gbps Ethernet SFP+ Downlink
    • 6x 40Gbps QSFP+ uplink
    • 4x 100Gbps QSFP
    • Layer 3
    • 96k entries for MAC Address table
    • Managed
    • CLI Protocol
    • 48 x 10GBase-T SFP+ downlink, 4 x 100Gbit LAN QSFP+ uplink, 1 x management SFP+, 1 x management RJ-45, 1 x USB, 6 x 40Gbit LAN QSFP+ uplink, 1 x serial (RS-232) RJ-45
    • Width :17.3 inch
    • Depth :22.5 inch
    • Height :1.7 inch
    • Weight :14.11 lbs

    Click here to view the manufacturer's item description/brochure

    Weight: 40 lb

    Warranty: 1 Year DiscTech

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
