CISCO Part #/MPN: WAE-674-K9
DiscTech Item #: CIS-WAE-674-K9-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: SAS Serial Attached SCSI, Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 4GB
Bays/Ports/Slots: 2
U Height: 2U
Voltage: 110-240V Multi

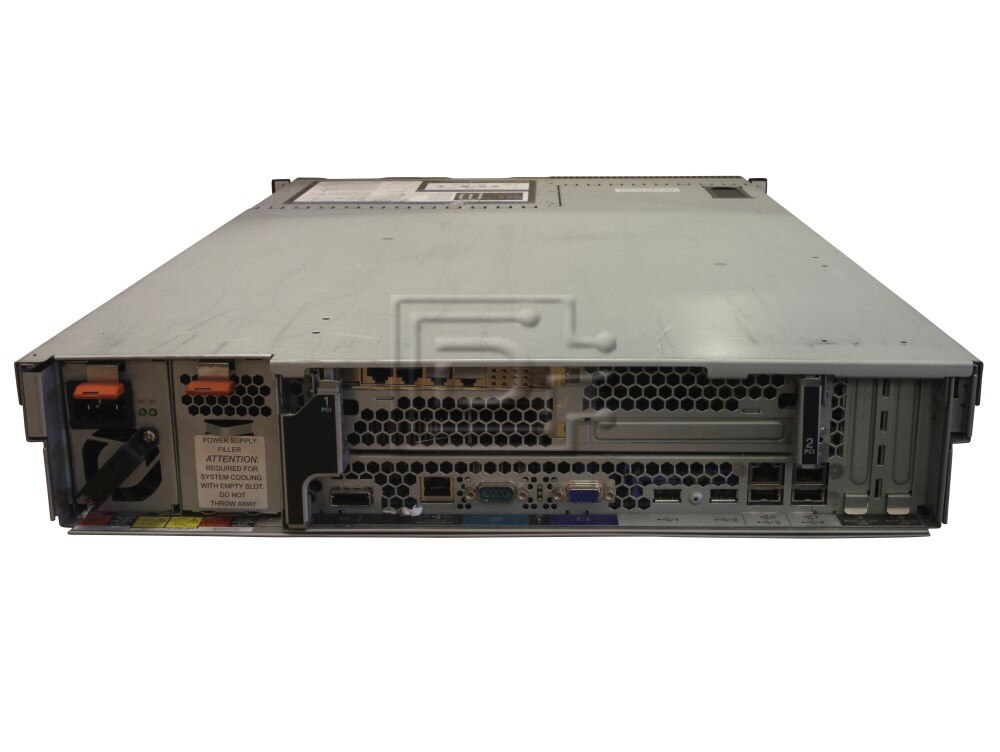

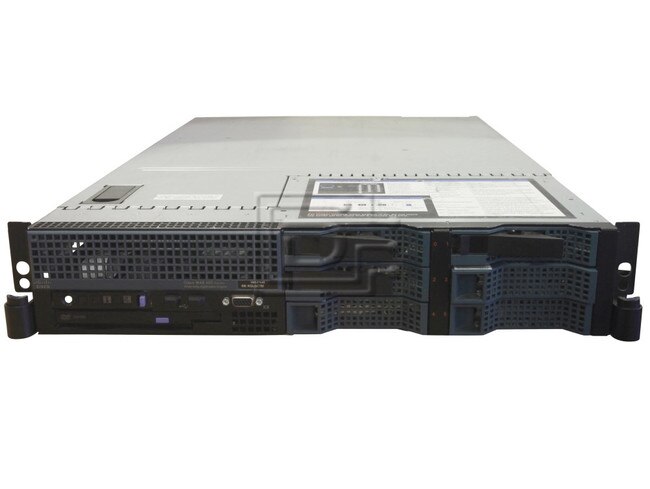

Cisco WAE-674-K9 600 Series 4GB RAM RAID-5 Wide Area Application Engine with 3x 300GB 15K SAS Hard Drives - Refurbished
Cisco WAE-674-K9 600 Series Wide Area Application Engine - 4GB DDR2-667 ECC RAM, RAID-5 capabilities, Intel Xeon E5335 processor, 8M Cache, 2.00GHZ, 1333MHz FSB.
Unit includes ...
- Cisco WAE-674-K9
- 3x IBM 43X0876 300GB 15K SAS hard drive kits
- 1x IBM 39Y7377 835W power supply
- 5x IBM 39M6803 cooling fans
- 2x IBM 46C7422 memory modules
Cisco Wide Area Application Engine
The Cisco® Wide Area Application Engine (WAE) platforms are a portfolio of powerful, scalable network appliances that host Cisco WAN optimization and application acceleration solutions that enable branch-office server consolidation and performance improvements for centralized applications and provide remote users with LAN-like access to applications, storage, and content across the WAN.
Product Overview
The Cisco WAE Appliances provide a unified platform for hosting Cisco application acceleration and WAN optimization solutions, including Cisco Wide Area Application Services (WAAS) Software and Cisco Application and Content Networking System (ACNS) Software.
Product Line
The Cisco WAE Appliances are designed to address varying customer needs, from very small branch offices to massive data center deployments, and offer the highest single-device and clustered-device scalability in the industry:
Hardware
- 4 or 8 GB RAM
- 600 GB storage
- Redundant, hot swappable power supplies as an upgrade option
- Hot-swappable HDD replacement supported with Cisco WAAS
Positioning
- Edge deployments at medium-sized and large enterprise branch offices
- Core deployments at small and medium-sized data centers.
| SPECIFICATIONS | |
|---|---|
| Standard Model | WAE-674-K9 |
| Cisco ACNS Software (Version (5.5.1) | Yes |
| Cisco ACNS CDM | Yes |
| Cisco ACNS Content Router | Yes |
| Usable Storage | 600GB |
| Baseline RAM | 4GB |
| Maximum HDD | 3 x 300GB HDD |
| Raid Support | RAID-5 |
| Network Interfaces | Two 10/100/1000BASE-T |
| Power |
|
| Rack Units | 2 |
| Optional: Support for 4-Port Network Interface Card (NIC) for Inline Cisco WAAS Deployment | Yes |
| Compact Flash Memory | 128MB |
| Height | 3.36 in (85.4 mm) |
| Width | 17.5 in (443.6 mm) |
| Depth | 27.64 in (702.0 mm) |
| Maximum Weight | 64 lb (29.03 kg) |
| Universal Input |
|
| OPERATING ENVIRONMENT | |
| Operating Temperature | 50 to 95°F (10 to 35°C) |
| Nonoperating Temperature | -40 to 140°F (-40 to 60°C) |
| Humidity | Nonoperating: 8 to 80% |
| Altitude | Maximum altitude: 7000ft (2133m) |
| Compliance | CE marking |
| Safety | |
| EMC | EN 55022 Class A with UTP cables |
Click here to view the manufacturer's item description/brochure
Weight: 50 lb
Warranty: 1 Year DiscTech
