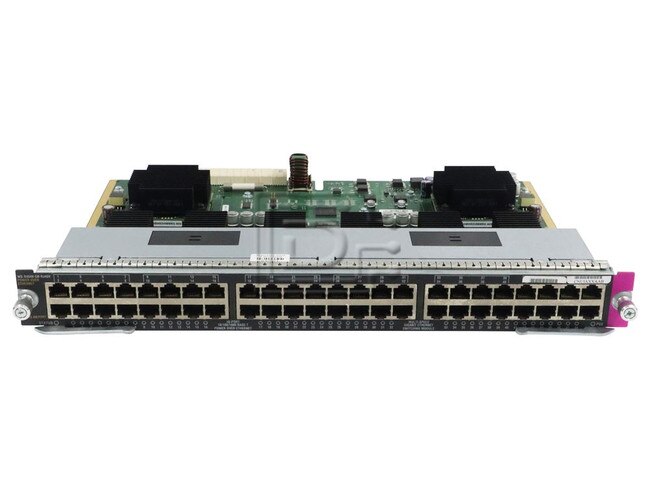

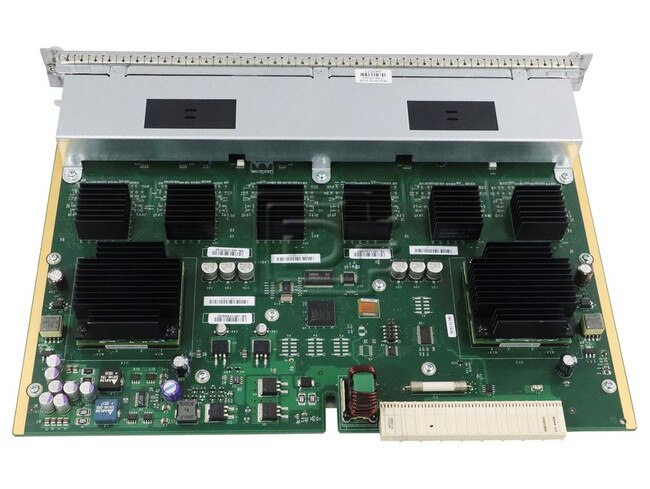

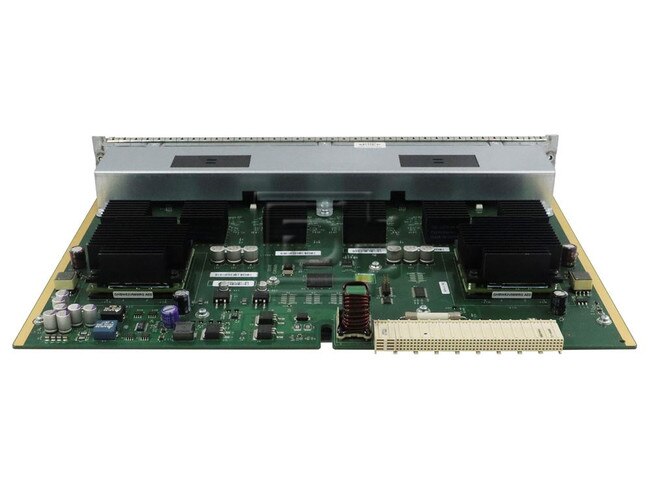

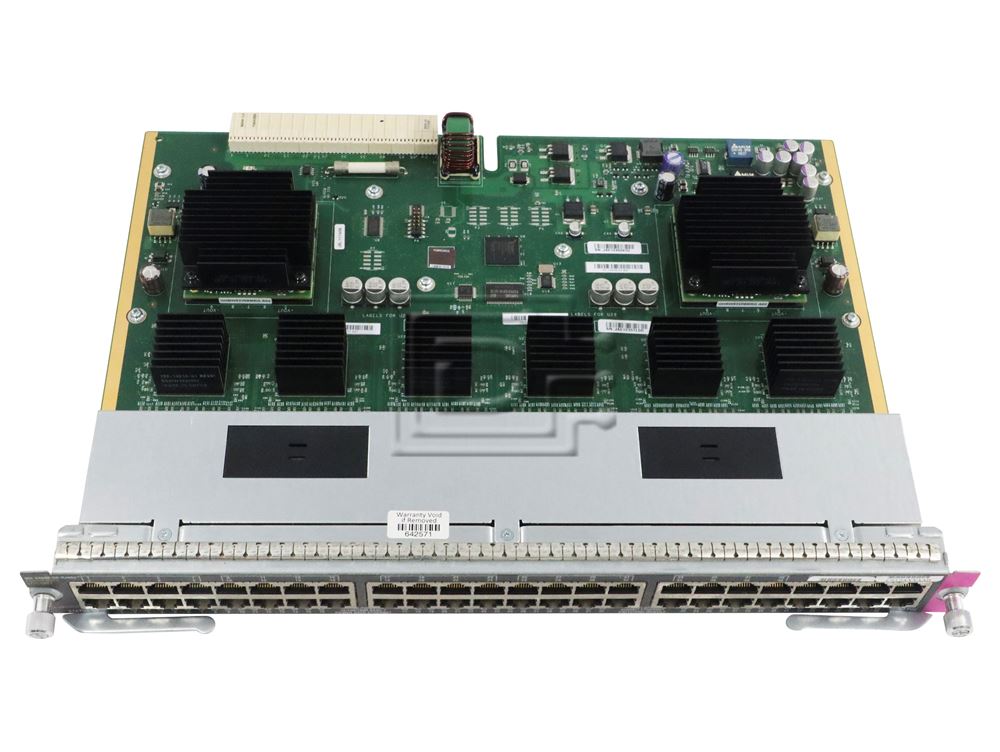

Cisco WS-X4548-GB-RJ45V 48-port 10/100/1000 Ethernet Module Line Card

CISCO Part #/MPN: WS-X4548-GB-RJ45V

DiscTech Item #: CIS-WS-X4548-GB-RJ45V-UP-OE


$199.00
$199.00

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 48

Cisco WS-X4548-GB-RJ45V  48-port 10/100/1000 Ethernet Module Line card with PoE - Used Pull

The Cisco® Catalyst® 4500 Series Switch expands Power-over-Ethernet (PoE) support. PoE, offers greater flexibility and mobility to users by delivering standards-based integrated power to increase network flexibility and usefulness with the support of new devices, services, and applications. IEEE 802.3af PoE compliance is provided in the Catalyst 4500 Series with the introduction of three new line cards and Cisco IOS® Software Release 12.2(18)EW and CatOS Software Release 8.3(1)GLX to meet the needs of enterprise and commercial customers. Cisco recommends transitioning to these new standards based linecards, especially if you are considering the existing Catalyst 4500 prestandard PoE module ( WS-X4148-RJ45V ) for deployment in your network.

Cisco PN: WS-X4548-GB-RJ45V / WS-X4548-GB-RJ45V=


Compatibility: Cisco Catalyst 4500

The WS-X4548-GB-RJ45V 48-port IEEE 802.3af-compliant PoE 10/100/1000 BASE-TX switching module has the following specifications:

Specification
Description

Module type

10/100/1000 BASE-TX Fast Ethernet switching module with IEEE 802.3af PoE

Port duplex mode

Half or full duplex mode

Port speed

10 100 1000 Mbps

Number of ports

48

Connector type

RJ-45

Cable type

UTP

Power over Ethernet

Up to 15.4 W per powered device on all 48 ports
(to a 312 W total on the Catalyst 4006)

Power regulation

Internal on the switching module


Click here to view the manufacturer's item description/brochure

Alternate MPNs: WS-X4548-GB-RJ45V=

Weight: 5 lb

Warranty: 1 Year DiscTech

Used Pull

1 Year DiscTech Warranty
