Conner Part #/MPN: CFA540S
DiscTech Item #: CON-CFA540S-RF-OE
- RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: <1GB
Speed: 4,500RPM (Not Used Anymore)
Interface Types: SCSI 50pin
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 5
Average Seek Time: 10.5
Electrical Interface: SCSI II - 5MBps 8-bit

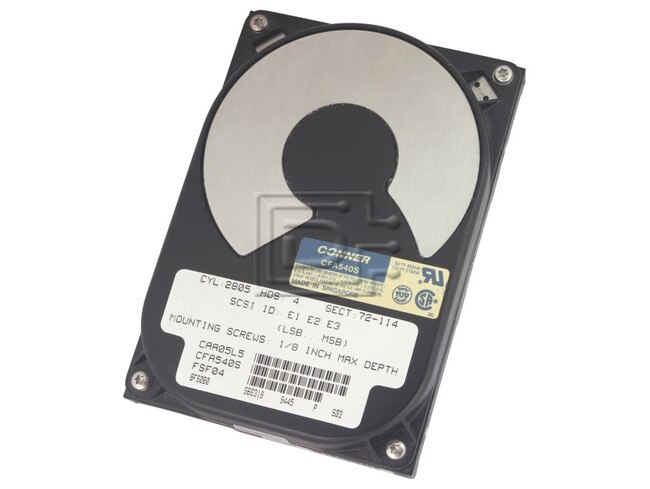

Conner CFA 540MB 4.5K SCSI II 50pin SE SCSI Hard Drive CFA540S - Refurbished
The drives provide the following features: - 256 KB segmentable cache buffer with adaptive cache management - Tagged Command Queuing with Seek Re-ordering and Write/Read Coalescing - Down-loadable Code through SCSI Interface - SCSI-2 Compatibility - 88 bit Reed-Solomon EDAC with on the fly error correction - Microprocessor-controlled diagnostic routines execute at start-up - Automatic Spindle Synchronization - Active Termination with removable Resistor Packs - Active Negation output drivers for greater interface reliability - High performance rotary voice coil actuator with embedded servo system - No thermal recalibration required to maintain performance levels - High Shock resistance - Automatic actuator latch against the inner stop upon power down with dedicated landing zone - Sealed HDA - 1,7 run length limited code - Programmable Block Size (512 or 1024 bytes)
| Formatted Capacity (MB=1,000,000): | 540 MB |
| Cylinders: | |
| Sectors: | |
| Heads: | |
| Disks: | |
| Buffer Size: | |
| Average Seek: | 10.5 ms |
| Single Track | 3 ms |
| Rotation Speed/Avg. Latency | 4500 rpm / 6.66 ms |
| Transfer Rate to/from. media | 27-46 MB/sec |
| Transfer Rate to/from buffer | 5 MB/sec |
| TPI (Tracks Per Inch) | 3258 |
| BPI (Bits Per Inch) | 62,500 |
| Size | 1.0" High x 4.0" Wide x 5.75" Depth |
| Weight | 1.3 lbs. |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
