Crucial CT500MX200SSD4 500GB M.2 NGFF SSD Drive

Crucial Part #/MPN: CT500MX200SSD4

DiscTech Item #: CRU-CT500MX200SSD4-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 500GB

Speed: Solid State Memory

Interface Types: SATA M.2 NGFF

Form Factor: M.2 x 80mm

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 555

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Consumer / Value

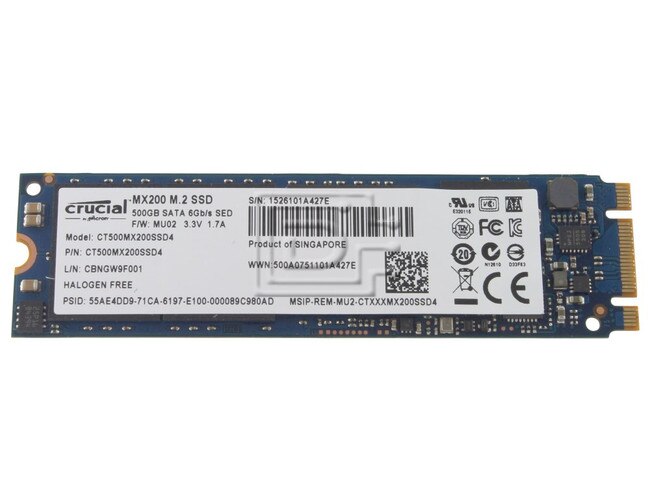

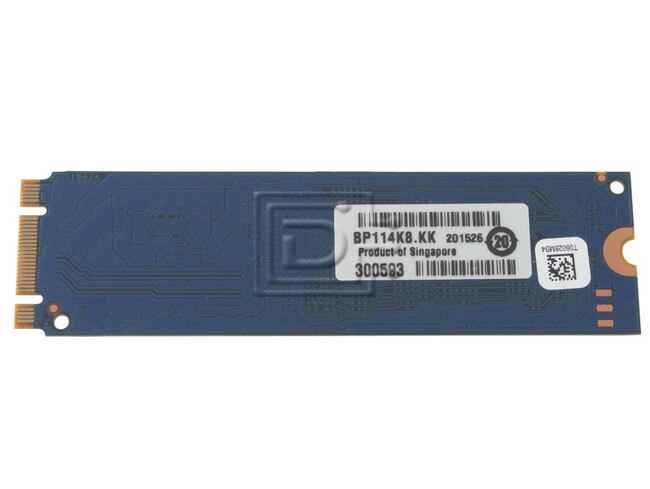

Crucial CT500MX200SSD4 MX200 500GB 6.0Gb/s SATA III M.2 80mm NGFF Type 2280SS (single sided) Thin Caseless MLC SSD Drive - Brand New

The Crucial MX200 delivers 550 MB/s sequential reads on both compressible and incompressible data, and outperforms a typical hard drive by 400 MB/s. Even better, the performance doesn’t let up, as the Crucial MX200 posts an endurance rating that’s up to 5 times greater than a typical client SSD

Our engineers created RAIN technology to protect your data at the component level, similar to how RAID is used with multiple hard drives. This technology increases the security and protection of your data to a level that’s rarely seen in consumer-class SSDs.

Keep personal files and sensitive information secure from hackers and thieves with AES 256-bit encryption– the same grade used by banks and hospitals. The Crucial MX200 meets or exceeds all industry encryption standards, including Microsoft® eDrive, IEEE-1667, and TCG Opal 2.0.

  • Dynamic Write Acceleration
  • Redundant Array of Independent NAND (RAIN)
  • Exclusive Data Defense
  • Adaptive Thermal Protection
  • Power Loss Protection
  • Data Path Protection
  • Active Garbage Collection
  • TRIM Support
  • Self Monitoring and Reporting Technology (SMART)
  • Error Correction Code (ECC)
  • AES 256-bit encryption
  • TCG Opal 2.0-compliant
  • IEEE-1667-compliant


This MLC Solid State Disk (SSD) is compatible with laptops and mobile devices that take NGFF integrated SSD drives.

Note: There is no protective casing around the PCB and NAND chips. This drive is designed to be installed in ultra thin laptops.

Form FactorM.2 2280 NGFF
Sequential Read MB/s555
Sequential Write MB/s500
Random Read IOPS100k
Random Write IOPS87k
Endurance160TB total bytes written (87GB per Day for 5 years)
MTTF1.5 million hours

Click here to view the manufacturer's item description/brochure

Weight: 0.5 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
