CyberPower Part #/MPN: RMCARD205
DiscTech Item #: CPS-RMCARD205-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 3-5 business daysSpecial Order - Ships in 3-5 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Fast - 100Mbps

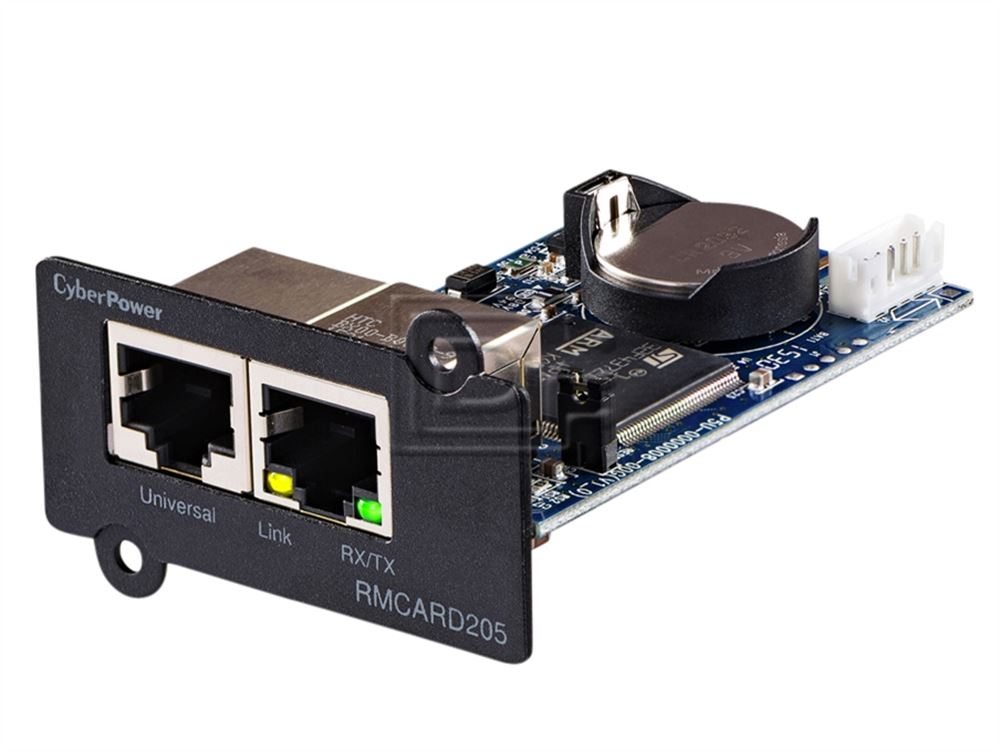

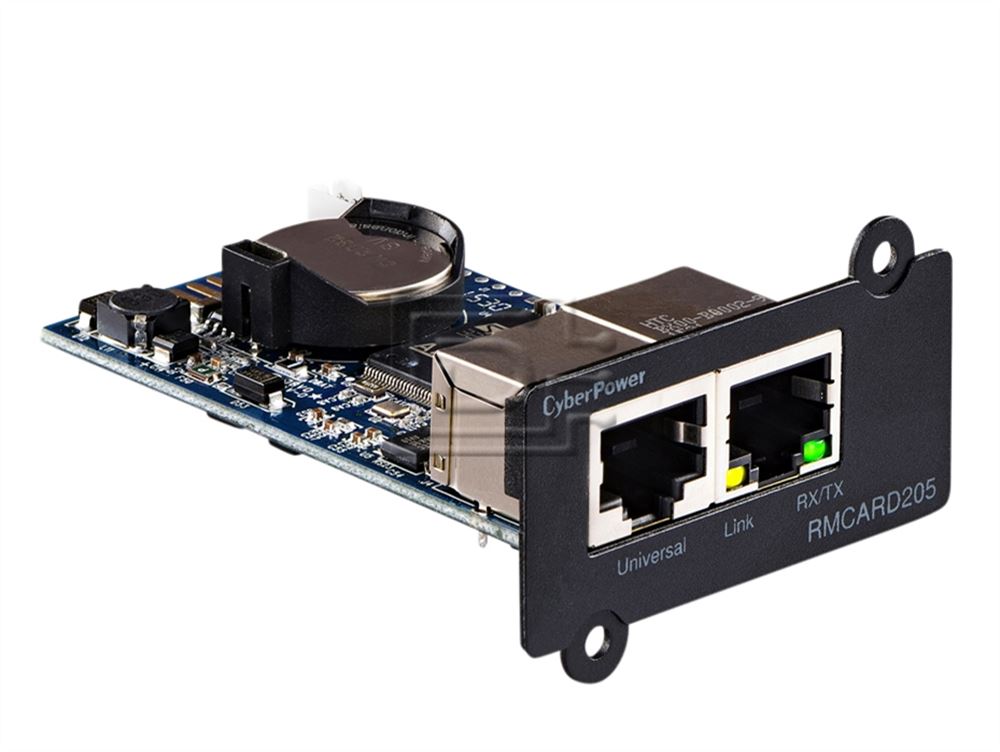

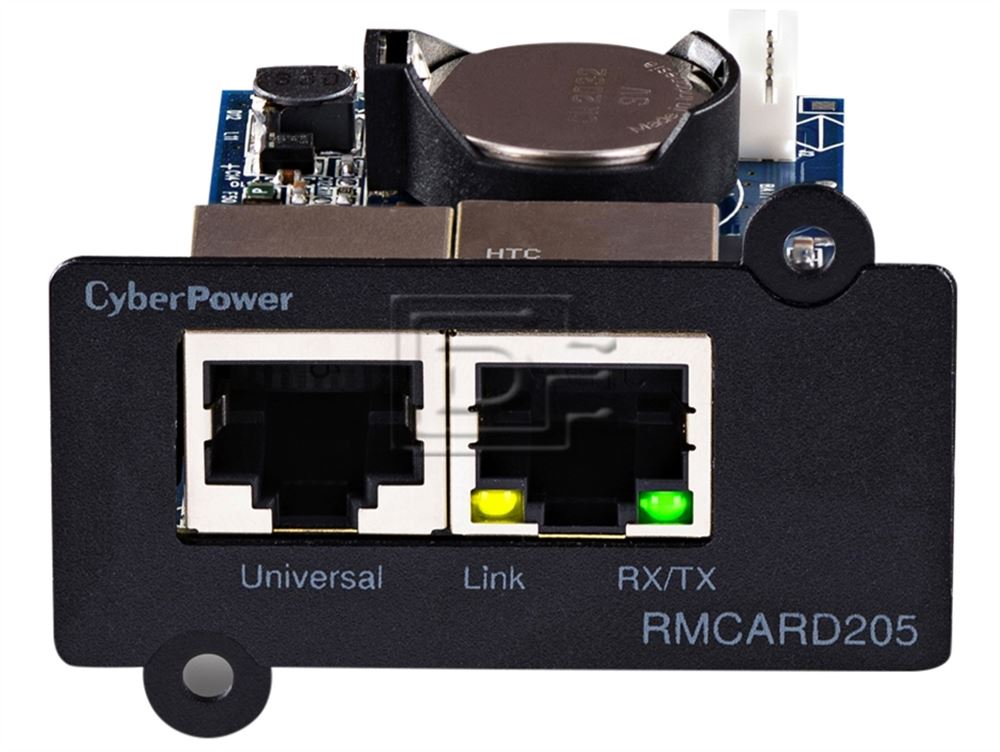

CyberPower RMCARD205 UPS & ATS PDU Remote Management Card - Brand New
CyberPower RMCARD205 UPS / Uninterruptible Power Supply & ATS / Automatic Transfer Switch PDU / Power Distribution Unit Remote Management Card - Brand New
RMCARD205
Hardware
Configure and remotely manage a UPS system or ATS PDU
Supported Protocols: TCP/IP, UDP, FTP, DHCP, DNS, SSH, Telnet, HTTP/HTTPS, SNMPv1/v3, IPv4/v6, NTP, SMTP, and Syslog
Remote management: Web browser, CLI, SNMP or NMS
Auto shutdown: Workstations, multiple servers
Auto shutdown clients: 50
Auto event notification: Email, SMS, SNMP Traps, Syslog
Remote scheduling: Shutdown, startup, reboot
Ethernet speeds: 10/100 Mbps
Environmental Sensor compatible: Yes
Upgradable firmware: Yes
Warranty: 3 year
Product Overview
A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD205 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
An optional environmental sensor (ENVIROSENSOR) can be connected to the RMCARD205 to monitor the ambient temperature and humidity of a server room, IT closet, or other critical environments. Administrators define temperature parameters in Fahrenheit or Celsius; thresholds can be configured to prompt the RMCARD205 to send a predefined notifications. The RMCARD205 comes with a three-year warranty.
Environmental Sensor Compatibility
The optional ENVIROSENSOR connects to the Universal port on the RMCARD205 to monitor ambient temperature and humidity. Notifications are enabled by default and alert thresholds can be easily customized to fit environmental control requirements.
Remote Management
Allows administrators to control and configure the UPS without being onsite via a standard web browser, command line interface (CLI), or network management system (NMS).
Built-In Automatic Shutdown
In conjunction with PowerPanel Business Edition Client, you can protect servers and workstations from data loss due to power failure.
Offsite Scheduling of UPS and ATS PDU Operation
Lets administrators conduct scheduled times for UPS and ATS PDU shutdown, startup, and reboot. Functionality includes event action management, event logging, and automatic event notification.
Automatic Event Notification
Provides immediate updates about power events via Email, SMS, SNMP Traps, or Syslog server.
Event Logging and Status Records
Traces the UPS and ATS PDU operational history, tracking events and input/output power status records.
Event Action Settings
Allows administrators to customize UPS actions in response to power and system events.
Upgradable Firmware
Keep the RMCARD205 up to date with the latest firmware version. New firmware releases include new functionality, feature enhancements, and bug fixes.
Upgradable UPS Firmware*
Maintain UPS firmware that manages features and functions up to date to. The UPS firmware upgrade is easy to do via the web management interface.
Three-Year Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
*Select UPS models only. Please contact your CyberPower Systems representative for information.
What’s In The Box
- CyberPower Remote Management Card
- RJ45/DB9 Serial Port Connection Cable
- Quick Start Guide
- Spare Jumper
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov..
CyberPower RMCARD205 Hardware | |
---|---|
Modelt# | RMCARD205 |
Specifications | |
Supported Protocols | |
Remote management | |
Auto shutdown | |
Auto shutdown clients | 50 |
Auto event notification | |
Remote scheduling | |
Ethernet Speeds | 10/100 Mbps |
Environmental Sensor Compatible | Yes |
Upgradable firmware | Yes |
General | |
Type | Network Management Card |
Network Port | Ethernet RJ-45 |
Data Link Protocol | |
LED Status Indicators | |
Unversal Port | Optional EVIROSENSOR |
Supported Protocols | |
HTTP | v1.1: RFC 2616 |
HTTPS | RFC 2818 |
SNMP | v1 |
MIB | |
SMTP | RFC 2821 |
SMTPS | RFC 3207 |
TLS | |
SSL | v3.0: RFC 6101 |
Telnet | RFC 854 |
SSH | |
FTP | RFC 959 |
DNS | RFC 1035 |
DHCP | RFC 2131 |
TCP/IP | |
RADIUS | RFC 2865 |
LDAP | v3: RFC 2251 |
LDAPS | v3: RFC 4513 |
SysLog | RFC 5424 |
NTP | RFC 958 |
Physical | |
Dimensions (WxHxD) | |
Weight | |
Environmental | |
Operating | Temperature |
Storage | Temperature |
Compatibility | |
Supported CyberPower Models | Select PR/OL/OR series UPS systems and ATS PDU with Expansion Slot |
Certifications | |
Safety | |
Environmental | RoHS Compliant |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
