Dell 01-SSC-6945 500 Mbps Unified Threat Management Firewall

Dell Part #/MPN: 01-SSC-6945

DiscTech Item #: DEL-01-SSC-6945-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Interface Types: USB 2.0, Ethernet RJ45

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 3

Dell 01-SSC-6945 SonicWall TZ 205 500 Mbps Unified Threat Management Firewall - Refurbished

Dell 01-SSC-6945 SonicWall TZ 205 500 Mbps UTM / Unified Threat Management Firewall

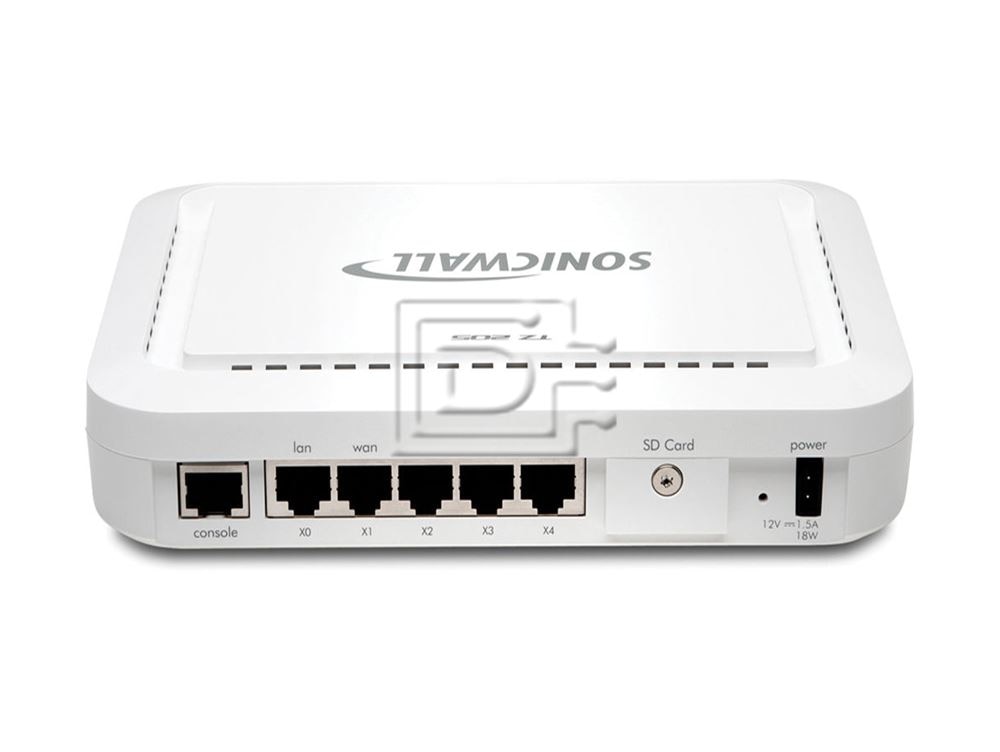

The Dell SonicWALL TZ 205 Security Firewall Appliance is a Unified Threat Management firewall that protects your network in a retail, small business, distribution, or a branch office environment. It integrates anti-malware, intrusion prevention, application control, and URL filtering. Powered by a dual processor, it delivers deep packet inspection without slowing down network performance. In terms of security, you can utilize Reassembly-Free Deep Packet inspections to keep track of malware and viruses on both inbound and outbound connections.

The TZ 205 monitors applications to provide maximum bandwidth for critical tasks, while throttling down non-productive ones. With SSL and IPsec VPN, remote users can securely connect to your network with or without client-based access. In addition to VPN capabilities, the TZ 205 features a Gigabit WAN port for establishing a wired connection to your modem and four LAN Ethernet 10/100/1000 ports for networking with servers, Wireless-N access points, and anything else that's Ethernet-based.

Intrusion Prevention

  • Signature-based scanning - tightly integrated, signature-based intrusion prevention scans packet payloads for vulnerabilities and exploits that target critical internal systems
  • Automatic signature updates - Dell SonicWALL's Research Team continuously updates and deploys an extensive list of IPS signatures that take immediate effect and do not require reboots or any other interruption in service
  • Outbound threat prevention - the ability to inspect both inbound and outbound traffic ensures that the network will not unwittingly be used in Distributed Denial of Service attacks and will prevent any Command and Control Botnet communication
  • Intra-zone IPS protection - intrusion prevention can be deployed between internal security zones to protect sensitive servers and to prevent internal attacks


  • IPSec VPN for site- to-site connectivity - high-performance IPSec VPN allows the firewall to connect remote branch offices to a central location
  • SSL VPN or IPSec client remote access - utilize clientless SSL VPN technology or an easy-to-manage IPSec client for easy access to email, files, computers, intranet sites, and applications from a variety of platforms
  • Redundant VPN gateway - when using multiple WANs, a primary and secondary VPN can be configured to allow seamless automatic failover and failback of all VPN sessions
  • Route-based VPN - the ability to perform dynamic routing over VPN links ensures continuous uptime in the event of a temporary VPN tunnel failure by seamlessly re-routing traffic between endpoints through alternate routes
  • Clean VPN - Dell SonicWALL Clean VPN both secures the integrity of VPN access and decontaminates malicious threats before they can enter the corporate network

Gateway Threat Prevention

  • Gateway anti-malware - Dell SonicWALL's RFDPI engine scans all ports and protocols for viruses without file size or stream length limitation. SonicLabs Researchers constantly provide updated threat protection, providing faster response times and threat prevention
  • Reassembly-Free Deep Packet Inspection (RFDPI) - this keeps track of malware regardless of the order or inspection timing with which the packets arrive. It allows for extremely low latency while eliminating file and stream size limitations. Additionally, it provides greater performance and security than outdated proxy designs that reassemble contents using sockets bolted to traditional anti-virus programs and are plagued with inefficiencies and the overhead of memory thrashing leading to high latency, low performance and size limitations
  • Cloud anti-virus - using the built-in RFDI engine, Dell SonicWALL can leverage the power of the cloud to provide the most comprehensive set of anti-malware signatures available, while minimizing latency or delay. The Dell SonicWALL Cloud Anti-Virus Service provides millions of additional malware signatures for inspection of executable files using the most up-to-date information available
  • Bi-directional Inspection - RFDPI can be performed on both inbound and outbound connections to provide protection in all network traffic directions
  • 24x7 signature updates - the SonicLabs Research Team creates and updates signature databases that are propagated automatically to the firewalls in the field, with those signatures taking immediate effect without any reboot or service interruption required

Firewall and Networking

  • Stateful packet inspection - all network traffic is inspected, analyzed, and brought into compliance with firewall access policies
  • DOS attack protection - SYN Flood protection provides defense against DOS attacks using both layer 3 SYN proxy and layer 2 SYN blacklisting technologies
  • Flexible deployment - can be deployed in traditional NAT and Layer 2 Bridge modes
  • Policy-based routing - create routes based on protocol to direct traffic to a preferred WAN connection with the ability to fail back to a secondary WAN in the event of an outage
  • High availability - supports Active/Passive failover to ensure increased reliability by protecting against hardware or software faults
  • WAN load balancing - load balance up to four WAN interfaces using Round Robin, Spillover, or Percentage based methods
  • WAN acceleration - decreases latency and increases transfer speeds between remote sites for even higher network efficiency gains


  • Advanced QoS - guarantee critical communications with 802.1p and DSCP tagging and remapping of VoIP traffic on the network
  • DPI of VoIP traffic - predefined signatures detect and block VoIP specific threats
  • H.323 gatekeeper and SIP proxy support - block spam calls by requiring that all incoming calls are authorized and authenticated by H.323 gatekeeper or SIP proxy

Management and Monitoring

  • Web GUI - an intuitive web-based interface allows quick and convenient configuration in addition to management through Dell SonicWALL Global Management System (GMS) or the CLI
  • SNMP - provides the ability to protectively monitor and respond to threats and alerts
  • Centralized policy management - with Dell SonicWALL GMS, monitor, configure, and report on multiple Dell SonicWALL appliances from a single intuitive interface and customize your security environment to suit your individual policies

Application Intelligence and Control

  • Application control - identify and control applications or individual components of an application based on RFDPI technology instead of relying on well-known ports and protocols
  • Application bandwidth management - allocate bandwidth to critical applications while throttling unproductive application traffic for an efficient and productive network
  • Custom application identification - create and configure custom application identification based on traffic parameters or on patterns unique to an application in its network communications
  • Application signature database - a continuously expanding database of over 3,500 application signatures ensures that administrators are able to control the usage of all the latest applications on their network at a category or individual level
  • User activity tracking - user identification is seamlessly integrated with Microsoft Active Directory and other authentication systems enabling tracking and reporting of individual user identification

TZ 205 Series
Model Number01-SSC-6945
SonicOS versionSonicOS 5.8.1 and later
Stateful throughput500 Mbps
IPS throughput80 Mbps
GAV throughput60 Mbps
UTM throughput40 Mbps
Maximum connections12,000
Maximum UTM/DPI connections12,000
New connections/sec1,500
Nodes supportedUnrestricted
Denial of service attack protection22 classes of DoS, DDoS and scanning attacks
SonicPoints supported2
3DES/AES throughput100 Mbps
Site-to-site VPN tunnels10
Bundled GVC licenses (maximum)2 (10)
Bundled SSL VPN licenses (maximum)1 (10)
Encryption/Authentication/DH GroupDES, 3DES, AES (128, 142, 256-bit), MD5, SHA-1/DH Group 1, 2, 5, 14
Virtual assist bundled (maximum)1 (30-day trial)
Key exchangeIKE, Manual Key, Certificates (X.509), L2TP over IPSec
Certificate supportVerisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for Dell SonicWALL-to-Dell SonicWALL VPN, SCEP
VPN featuresDead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supportedMicrosoft Windows XP, Vista 32/64-bit, Windows 7 32/64-bit
SSL VPN platformsMicrosoft Windows XP/Vista 32/64-bit/Windows 7, Mac OSX 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect platform supportedApple iOS 4.2 or higher, Google Android 4.0 or higher
Security services
Deep Packet Inspection servicesGateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Intelligence and Control (TZ 215 only)
Content Filtering Service (CFS)HTTP URL, HTTPS IP, keyword and content scanning, ActiveX, Java Applet, and cookie blocking bandwidth management on filtering categories, allow/forbid lists
Enforced Client Anti-Virus and Anti-SpywareMcAfee
Comprehensive Anti-Spam ServiceSupported
Application Intelligence and ControlApplication control
IP address assignmentStatic, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
VLANS10, PortShield
DHCPInternal server, relay
RoutingOSPF, RIP v1/v2, static routes, policy-based routing, multicast
AuthenticationXAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
Local user database150 users
VoIPFull H.323v1-5, SIP, gatekeeper support, outbound bandwidth management, VoIP over WLAN, deep inspection security, full interoperability with most VoIP gateway and communications devices
Zone security Yes
Object-based/group-based management Yes
DDNS Dynamic DNS providers include:,, and
Management and monitoring Local CLI, Web GUI (HTTP, HTTPS), SNMP v2; Global management with Dell SonicWALL GMS
Logging and reporting Analyzer, Scrutinizer, GMS, Local Log, Syslog, Solera Networks, NetFlow v5/v9 (TZ 215), IPFIX with Extensions (TZ 215), Real-time Visualization (TZ 215 only)
Hardware failover Active/Passive
Anti-spam RBL support, Allowed/Blocked Lists, Optional Dell SonicWALL Comprehensive Anti-Spam Service
Load balancing Yes, Outgoing and Incoming
WAN acceleration support Yes, with Dell SonicWALL WXA appliances
Built-in wireless LAN
Standards802.11a/b/g/n (3x3)
Wireless security standards(WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS)
Virtual Access Points (VAPs)Up to 8
AntennasTriple: 2 external detachable, 1 internal
Radio power–802.11b/802.11g/802.11n15.5 dBm max/18 dBm max/17 dBM @ 6 Mbps, 13 dBM @ 54 Mbps
Radio power–802.11a/802.11b/802.11g/802.11n15.5 dBm max/18 dBm max/17 dBM @ 6 Mbps, 13 dBM @ 54 Mbps
Radio power–802.11n (2.4GHz)/802.11n (5.0GHz)19 dBm MCS 0, 11 dBm MCS 15/17 dBm MCS 0, 12 dBm MCS 15
Radio receive sensitivity–
-95 dBm MCS 0, -81 dBm MCS 15/-90 dBm @ 11Mbps/
-91 dBm @ 6Mbps, -74 dBm @ 54 Mbps
Radio receive sensitivity–
802.11n (2.4GHz)/802.11n (5.0GHz)
-89 dBm MCS 0, -70 dBm MCS 15/
-95 dBm MCS 0, -76 dBm MCS 15
Hardware built-in wireless LAN
Interfaces(5) 10/100/1000 copper gigabit, 1 USB, 1 console
Flash memory/RAM32 MB/256 MB
3G wireless/modemSupported with approved adapters
USB ports1
Power input100 to 240 VAC, 50-60 Hz, 1 A
Max power consumption 6.4W/10.5W
Total heat dissipation21.9 BTU/35.8 BTU
CertificationsVPNC, ICSA Firewall 4.1
Certifications pendingEAL4+, FIPS 140-2 Level 2, IPv6 Phase 1, IPv6 Phase 2
Form factor and dimensions 5.555 x 1.42 x 7.48 in
(14.1 x 3.6 x 19 cm)
Weight0.75 lbs/0.34 kg
0.84 lbs/0.38 kg
Major regulatory complianceFCC Class A, CES Class A, CE, C-Tick, VCCI, Compliance MIC, NOM, UL, cUL, TUV/GS, CB, NOM, WEEE, RoHS
Environment/humidity40-105° F, 0-40° C/ 5-95% non-condensing
MTBF28 years/15 years
