Toshiba Part #/MPN: KPM5XVUG480G
DiscTech Item #: KIO-KPM5XVUG480G-C9-OE-DEL
- Certified 95Condition Levels Explained
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:8Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 480GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 2100/2100
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Mixed Use
Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620

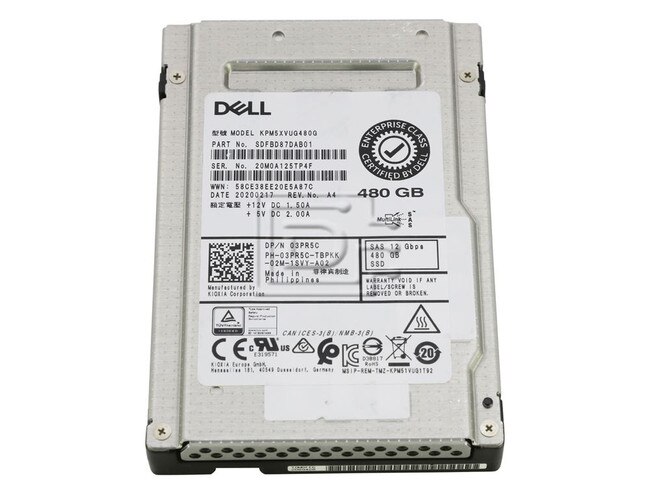

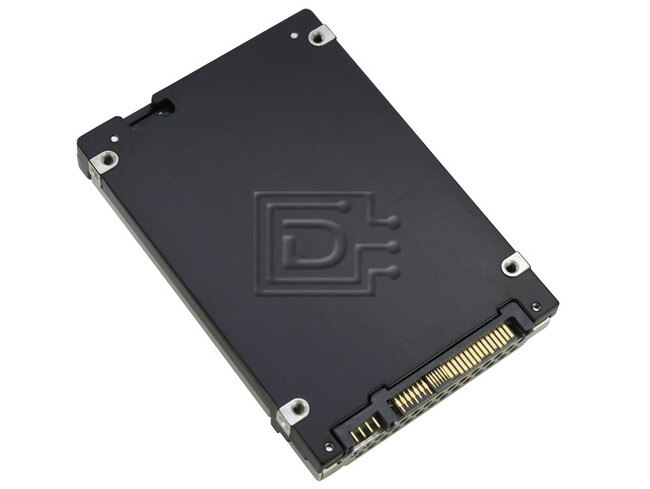

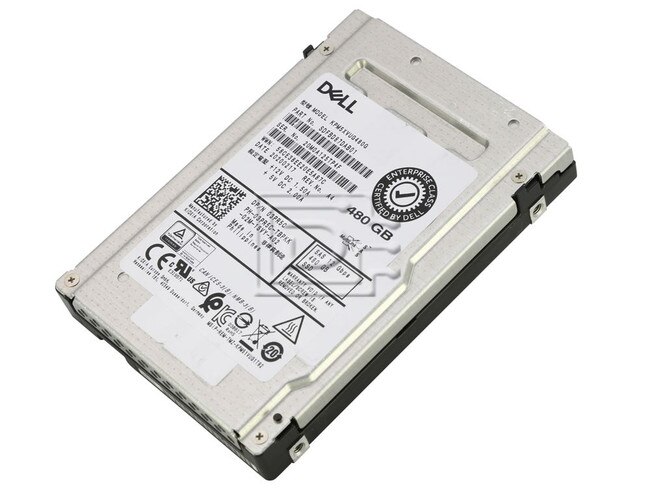

Dell 3PR5C / KIOXIA Toshiba KPM5XVUG480G SDFBD87DAB01 480GB 2.5 12Gbps Mixed Use 3 DWPD TLC SAS SSD - Certified 95
Dell 3PR5C / KIOXIA Toshiba KPM5XVUG480G SDFBD87DAB01 480GB 2.5 12Gbps Mixed Use 3 DWPD TLC SAS SSD - Certified 95
SSD
PM5-V 12.0 Gbit/s enterprise SAS SSD is optimized for Mixed Use Endurance applications, including web services, data warehousing, media streaming and video on demand. The Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 3 DWPD (Drive Write Per Day) with capacities up to 15.36 TB.
Key Features
- 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
- Capacities from 480 GB to 15.36 TB
- T10 Multi-Stream Write support
- Up to 385 K random read IOPS (4 KiB) in dual port mode
- 2.5 inch form factor, 15 mm Z-height
- 3 DWPD with 100 % Random Write Workload
- Power loss protection and end-to-end data protection, including T10 DIF
- Pin-3 power disable support
- Sanitize Instant Erase (SIE) option
- Self-Encrypting (SED) option
- Self-Encrypting (SED), FIPS 140-2 validated option
Key Applications
- Media streaming
- Data warehousing
- Web servers
- Video on demand (VOD)
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
| Enterprise Mixed Use Endurance SSD | |
|---|---|
| Model Number | KPM5XVUG480G |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | BiCS FLASH TLC |
| Formatted Capacity | 480GB |
| Sustained 64KiB Sequential Read | 2,100 MiB/s |
| Sustained 64KiB Sequential Write | 2,100 MiB/s |
| Sustained 4KiB Random Read | 370,000 IOPS |
| Sustained 4KiB Random Write | 55,000 IOPS |
| Reliability | |
| MTTF | 2,500,000 hours |
| DWPD | 3 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Operating) | 3.2W Typ. |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Enviromental | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 3PR5C 03PR5C SDFBD87DAB01
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Certified 95
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
