Toshiba Part #/MPN: PX04SRB048
DiscTech Item #: TOS-PX04SRB048-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 480GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 1900/850
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

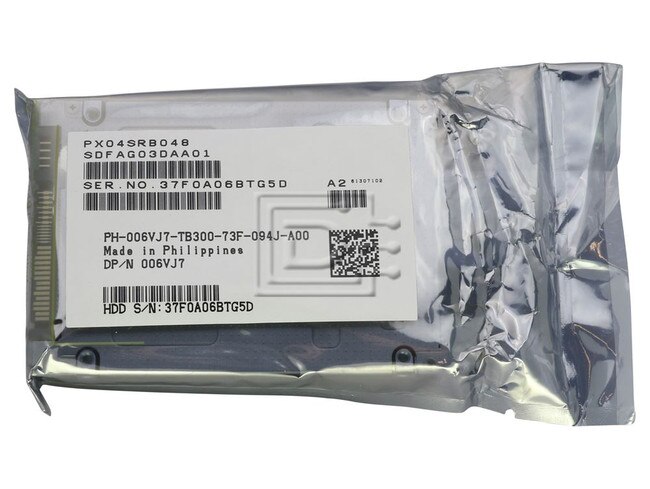

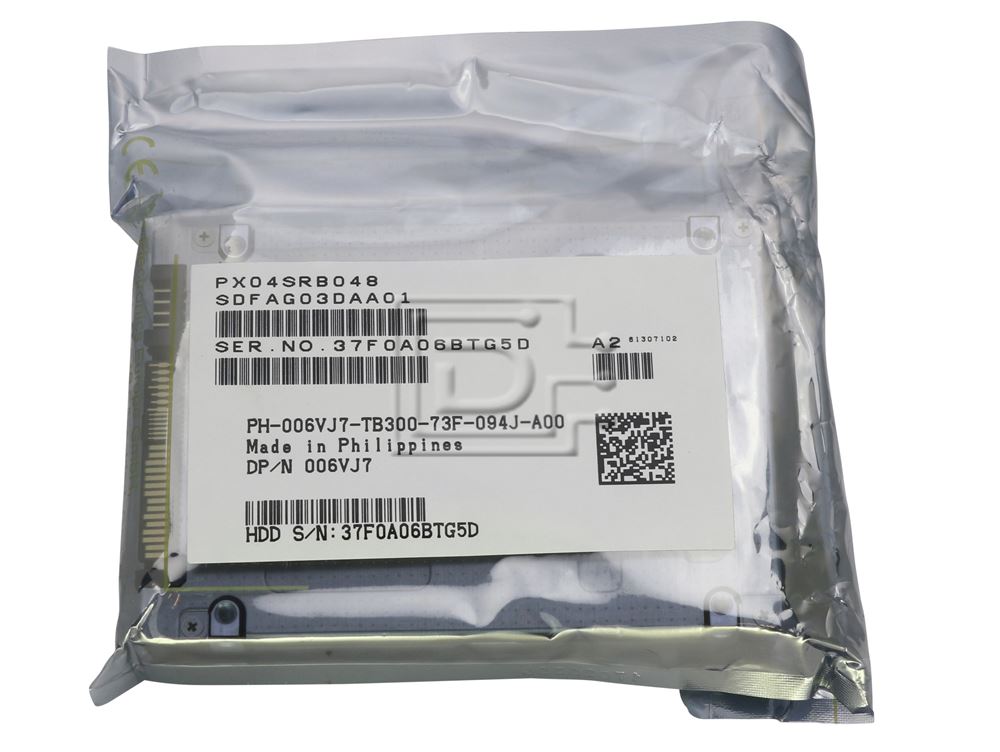

Dell 06VJ7 / Toshiba PX04SRB048 480GB 12Gbps eMLC Read Intensive 1-DWPD SAS SSD - Brand New
DP/N: 06VJ7 006VJ7
Enterprise Read Intensive SSD
The PX04SRB is 270k IOPS random read, 12.0 Gbit/s SAS SSD to offer massive 3.84TB capacity. It is optimized for read-intensive applications requiring 1 or less DWPD (Drive Writes Per Day).
The family delivers unique a customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.
Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
The Enterprise Read Intensive SSD series delivers features and performance for enterprise and web-based workloads.
Key Features
- Up to 3.84TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- 270k IOPS random read
- 1 DWPD with 100% Random Workload
- Improved Read/Write Bandwidth and Random IOPS
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Self-Encrypting (SED) Option
Key Application
- Video on Demand (VOD)
- Streaming Media
- Data Warehousing
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
Basic Specification | |
---|---|
Intel Model Number | PX04SRB048 |
Interface | SAS-3.0 |
Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
Memory Type | MLC |
Formatted Capacity | 480GB |
Sustained 64KiB Sequential Read | 1,900 MiB/s |
Sustained 64KiB Sequential Write | 850 MiB/s |
Sustained 4KiB Random Read | 270,000 IOPS |
Sustained 4KiB Random Write | 22,000 IOPS |
Reliability | |
MTTF | 2,000,000 hours |
DWPD | 1 |
Power Requirements | |
Supply Voltage | 5 V ±7 % , 12 V ±7 % |
Power Consumption (Ready) | 3.2 W Typ. |
Dimension | |
Height | 15.0 mm +0 , -0.5 mm |
Width | 69.85 ±0.25 mm |
Length | 100.45 mm Max. |
Weight | 150 g Max |
Environmental Specifications | |
Temperature (Operating) | 0 to 55 °C |
Relative Humidity (Operating) | 5 to 95 % R.H. |
Vibration (Operating) | 21.27 m/s {2.17 Grms} (5 to 800 Hz) |
Shock (Operating) | 9,800 m/s {1,000 G} (0.5 ms duration) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 06VJ7 006VJ7
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
