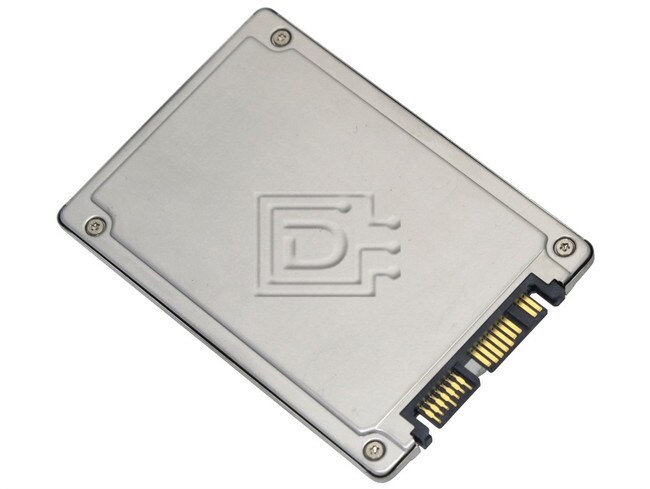

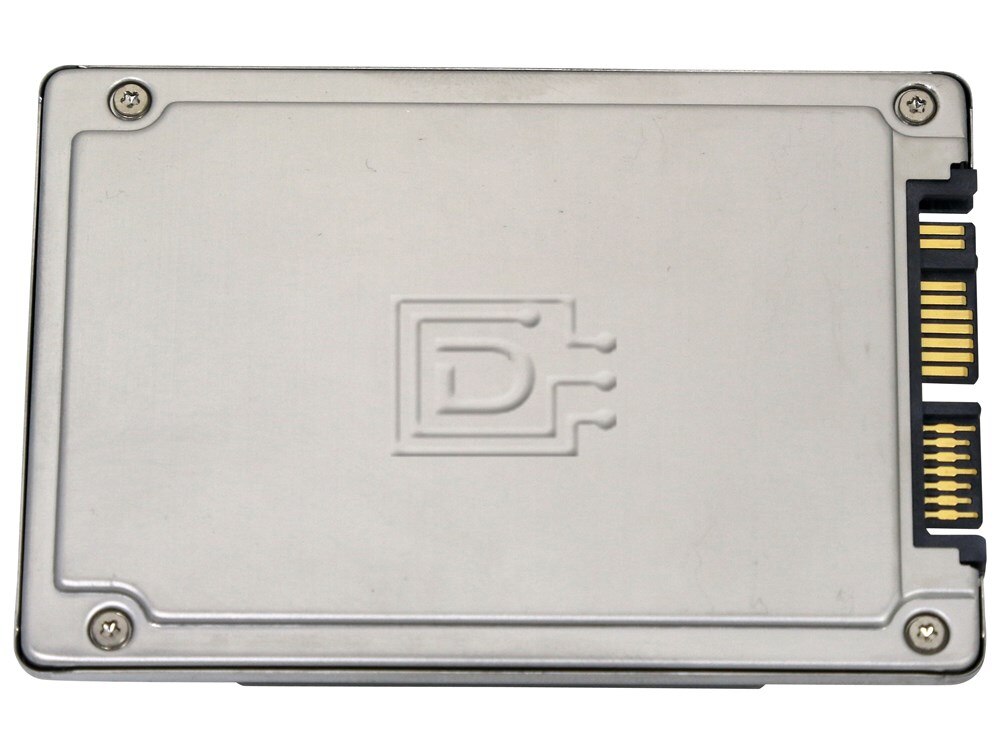

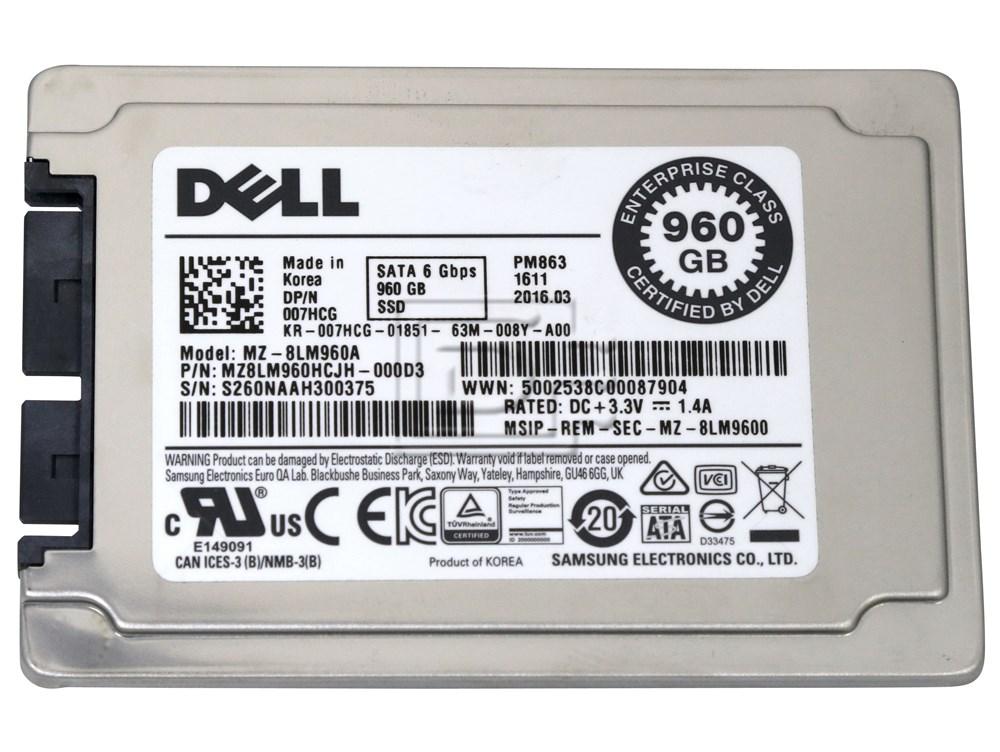

Dell 07HCG / 007HCG Samsung PM863 MZ-8LM960A 960GB 1.8in Micro SATA Enterprise SSD


DiscTech Item #: SAM-MZ-8LM960A-C9-OE-DEL


Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: SATA, SATA 1.8in Micro for ultra mobile applications

Form Factor: 1.8inx5mm

Sector Size: 512 / 512e

Sustained Throughput: 540MB/s Read and 480MB/s Write

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Dell 07HCG / Samsung PM863 MZ-8LM960A 1.8in Micro SATA 960GB SSD 6Gb/s SATA Solid State Drive - Certified 95%

Samsung Enterprise Solid State Drives (SSDs) are being used increasingly as data storage media in computing, communication, and multimedia devices. Most SSDs use NAND Flash memory as the storage media, which is capable of retaining data without an external power supply. A typical SSD consists of two main components: the data storage device and a controller for the storage device that acts as an interface between the SSD and the host system. The SSD controller manages the interfaces from both the host side and the device side, which includes mapping bad data blocks, caching read/write data, and error checking and correction (ECC); and the controller's built-in ROM contains the firmware needed to control the drive. An SSD is an example of an embedded system, and needs a Real-Time OS (RTOS) for its operation. Several open source and proprietary firmware solutions are available for SSD controllers

The primary advantage of using Samsung SSDs is their lack of moving parts, resulting in extremely short startup and shutdown/standby times. SSDs offer superior reliability compared to traditional Hard Disk Drives (HDDs). Advances in semiconductor flash memory technologies have enabled the development of SSDs that are equal in capacities to HDDs and can be used as direct replacements. SSDs also prove to be highly cost effective in-use due to their much lower power consumption and maintenance costs. As the world leader in semiconductor memory technology, Samsung offers a comprehensive range of SSDs for deployment in a wide range of devices across every industry segment.

The maximum capacity of the PM863 has improved over four times that of the previous generation PM853T to almost 3,840 GB compared to 960 GB. Random read/write performance has also greatly improved. The 4 KB random read/write performance was 90 K IOPS/14 K IOPS maximum to the PM863 reaching up to 99 K IOPS/18 K IOPS.

In addition, the PM863 provides the following same powerful functions as the previous generation PM853T
  •  Power-loss Protection. Protects from loss of data due to sudden power disconnections by using a tantalum capacitor build into the PM863 to safely and accurately copy and store user data written to the DRAM (the volatile memory in the SSD) to the NAND flash memory
  • End-to-end Protection. Safeguards user data in the PM863 along the entire data transfer path, from the host interface to the NAND flash memory, by duplicating the Cyclical Redundancy Check (CRC) and Error Check and Correct (ECC) at each section of the path to ensure accuracy and safety at all time.
  • Dynamic Thermal Throttling. Monitors the temperature of the SSD automatically and, if the SSD rises above safe levels, it forcibly delay I/O processing until the temperature of the SSD drops to normal levels, ensuring the safe use of expensive servers.
1.8" Micro SATA SSD

Alt MP/N: 007HCG 07HCG MZ-8LM960A MZ8LM960HCJH-000D3 PM863 MZ8LM960A

Model NumberMZ-8LM960A
Form Factor1.8 inch
InterfaceSerial ATA 6.0 Gbps
Density 960GB
Voltage+5V ± 5%
Sequntial Read (128KB)540 MB/s
Sequential Write (128KB)480 MB/s
Random Read IOPS (4KB)99 KIOPS
Random Write IOPS (4KB)18 KIOPS

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 007HCG 07HCG MZ-8LM960A MZ8LM960HCJH-000D3 PM863 MZ8LM960A

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Certified 95

Condition Levels Explained

These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
