Dell Compellent 960GB 2.5 Read Intensive SAS Hard Drive
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:24Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 960GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description

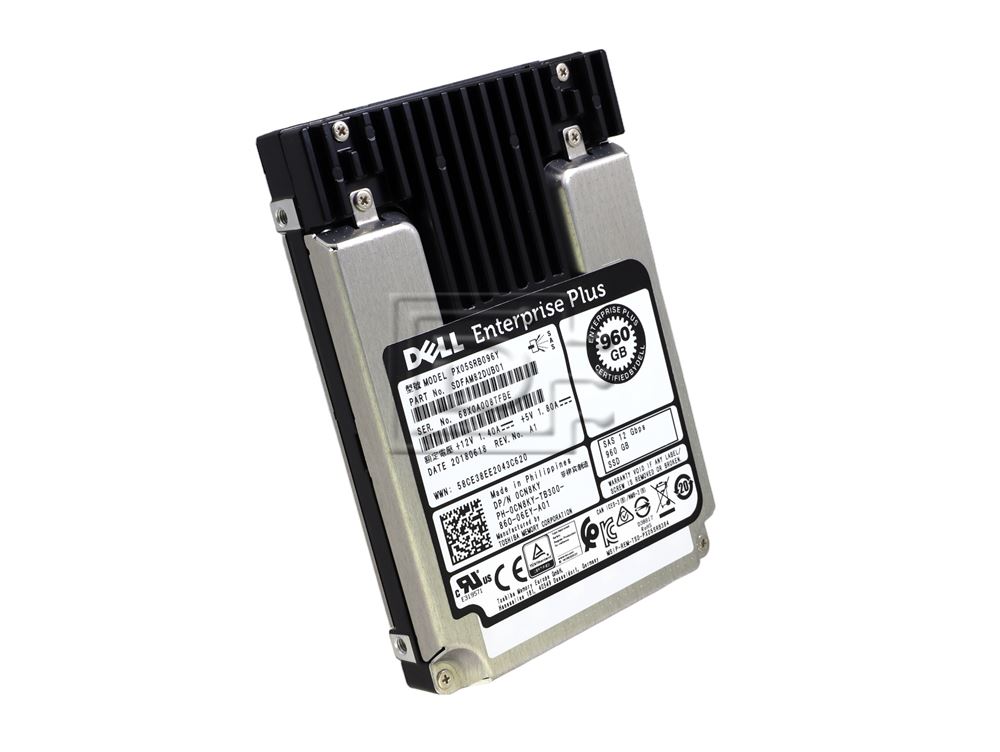

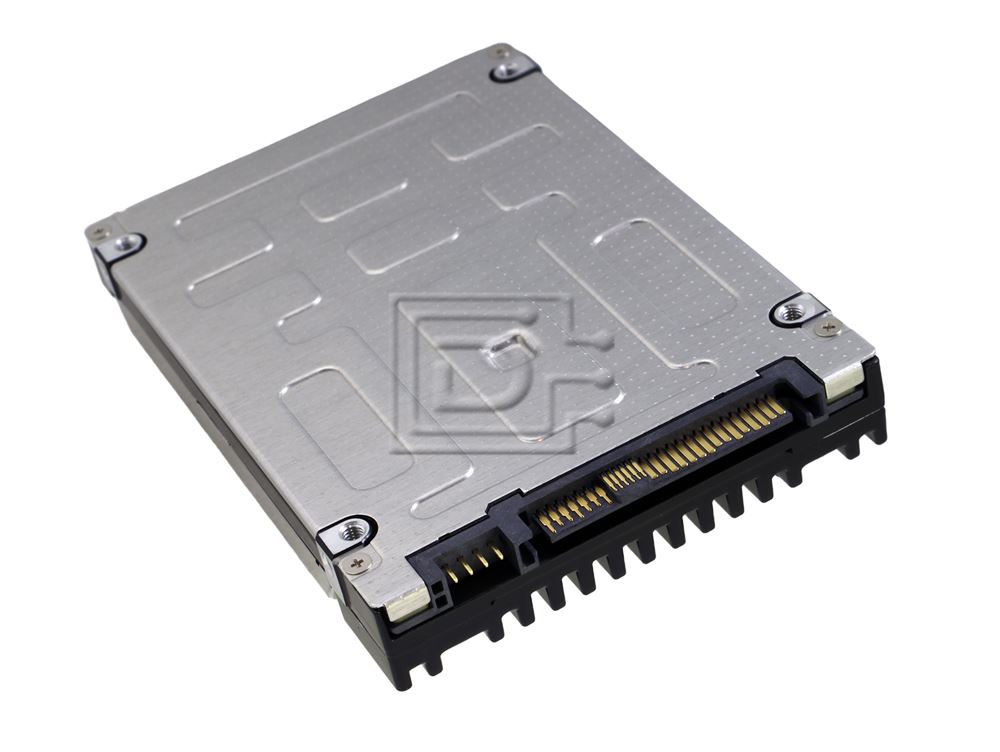

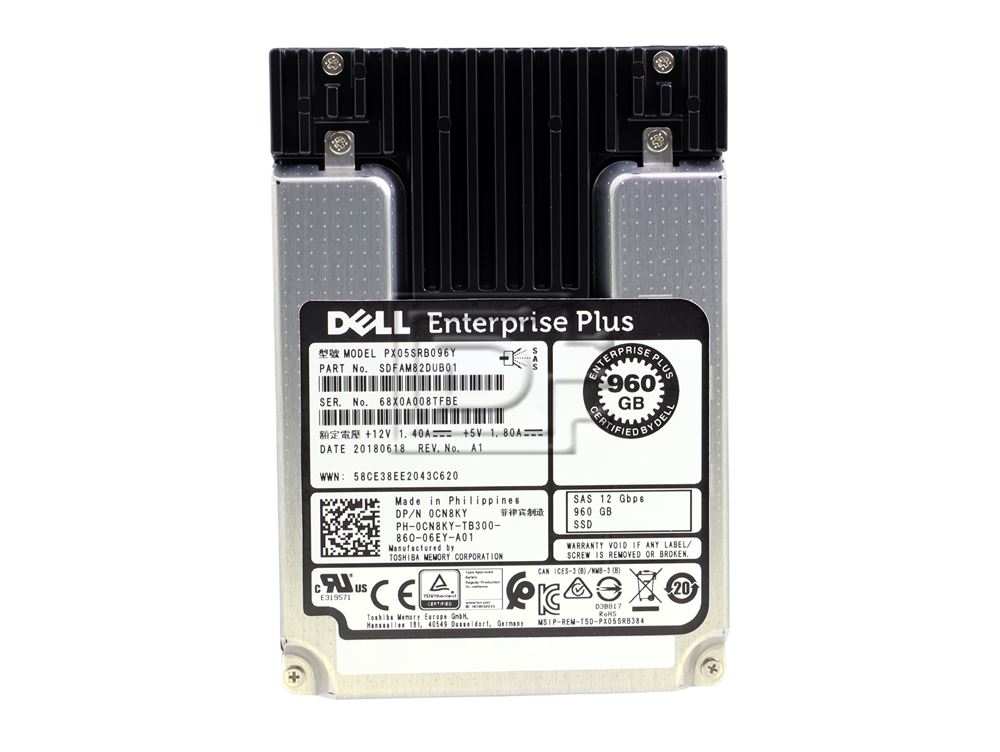

Dell Compellent CN8KY 960GB 2.5 12Gbps Read Intensive SAS with 07D4F6 bracket - Brand New
Dell Compellent CN8KY 960GB 2.5 12Gbps Read Intensive SAS with 07D4F6 bracket / Enterprise Solid State Disk Drive - Brand New
Enterprise Read Intensive SSD
Designed for read intensive application workloads including web servers, data warehousing, media streaming, and VOD and offers large capacities up 3.84TB with 12 Gbps SAS interface.
270K IOPS sustained random read performance and 1,400 - 1,800 MB/s sequential read performance helps read-intensive application workloads to realize superior results and assists organization in minimizing total cost of ownership while maintaining high performance, reliability, and endurance for maximum scalability.
Optimized for application demanding 1 Drive Writes Per Day and is equipped with unique customer tunable features allowing for maximum performance or power efficiency.
The Enterprise Read Intensive SSD series delivers features and performance for enterprise and web-based workloads.
Key Features
- Up to 960GB Storage Capacity
- 12.0 Gbps SAS Interface
- 270K IOPS random read (4K) performance
- Power-Loss-Protection and End-to End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Sanitize Instant Erase (SIE) Option
- Self-Encrypting (SED) Option
- Self-Encrypting (SED), FIPS Certified Option
- Multi-Level Cell
Applications
- Data Warehousing
- Web Servers
- Media Streaming
- Video on Demand (VOD)
Compatibility
This 2.5" SAS drive is compatible with:
15th Generation: R250, R350, R450, R550, R550P, R650, R650xs, R6515, R6525, R750, R750xa, R750xs, R7515, R7525, T150, T350, T550
14th Generation: R240, R340, R440, R540, R640, R6415, R740, R740xd, R740xd2, R7415, R7425, R840, R940, R940xa
Dell Compellent SCv3020 storage arrays
Specifications
| Enterprise Read Intensive SSD | |
|---|---|
| Basic Specifications | |
| Reliability | |
| Power Requirements | |
| Dimensions | |
| Environmental | |
| Model Number | 0CN8KY |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbps |
| Memory Type | MLC |
| Formatted Capacity | 960GB |
| Sustained 64KiB Sequential Read | 1,800 MiB/s |
| Sustained 64KiB Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read | 270,000 IOPS |
| Sustained 4KiB Random Write | 25,000 IOPS |
| MTTF | 2,000,000 hours |
| DWPD | 1 |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Operating) | 3.2W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max. |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. (No condensation) |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: PX05SRB096Y
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
