Dell Compellent V53VM / 93R5Y 960GB SAS RI eSSD

Dell Equallogic Compellent Part #/MPN: V53VM

DiscTech Item #: DEC-V53VM-BN-OE


$500.00
$500.00

Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 1900/850

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Wattage/VA: 3W

Voltage: 12V

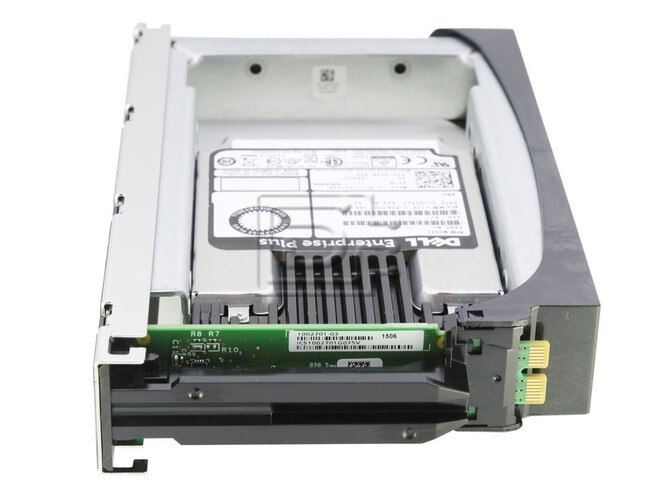

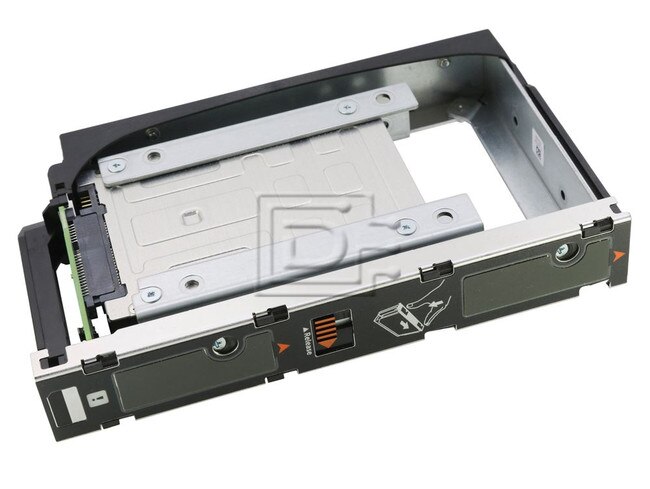

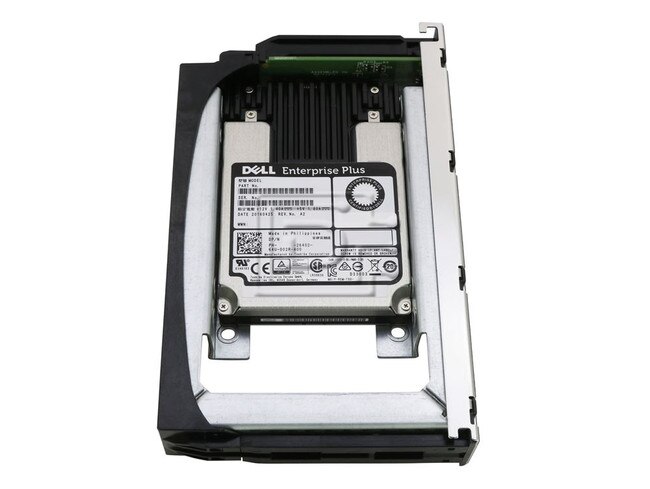

Dell Compellent 0V53VM / V53VM / 093R5Y / 93R5Y 960GB 3.5" 12Gbps Read Intensive 1-DWPD MLC SAS Solid State Drive with HGV5J tray KYR5R bracket and P1F8J interposer - Brand New

Dell Compellent 0V53VM / V53VM / 093R5Y / 93R5Y / Toshiba PX04SRB096 / SDFAG02DUA01 960GB 3.5" LFF 12.0 Gb/s RI / Read Intensive 1 Drive Writes Per Day Multi-Level Cell SAS / Serial Attached SCSI eSSD / Enterprise Solid State Disk Drive with HGV5J tray KYR5R bracket and P1F8J interposer - Brand New

Enterprise Read Intensive SSD

The PX04SRB is 270k IOPS random read, 12.0 Gbit/s SAS SSD to offer massive 3.84TB capacity. It is optimized for read-intensive applications requiring 1 or less DWPD (Drive Writes Per Day).

The family delivers unique a customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.

Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

The Enterprise Read Intensive SSD series delivers features and performance for enterprise and web-based workloads.

Key Features

  • Up to 3.84TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
  • 270k IOPS random read
  • 1 DWPD with 100% Random Workload
  • Improved Read/Write Bandwidth and Random IOPS
  • Power-Loss-Protection and End-to-End Data Protection including T10 DIF
  • Pin-3 Power Disable Support
  • Self-Encrypting (SED) Option



Key Applications

  • Video on Demand (VOD)
  • Streaming Media
  • Data Warehousing




Compatibility:

This 3.5" SAS / SATA caddy is compatible with the following Dell SC Compellent systems supporting 3.5" hot swappable disks:

Dell Compellent SCv2080 / SC280 / SC180 Storage arrays and Enclosures

Enterprise Read Intensive SSD
Model Number0V53VM
093R5Y
Basic Specifications
InterfaceSAS-3.0
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeMLC
Formatted Capacity960GB
Sustained 64KiB Sequential Read1,900 MiB/s
Sustained 64KiB Sequential Write850 MiB/s
Sustained 4KiB Random Read270,000 IOPS
Sustained 4KiB Random Write22,000 IOPS
Reliability
MTTF2,000,000 hours
DWPD1
Power Requirements
Supply Voltage5 V ±7 % , 12 V ±7 %
Power Consumption (Operating)3.2W Typ.
Dimensions
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight150 g Max.
Enviromental
Temperature (Operating)0 to 55 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)9.8 km/s {1,000 G} (0.5 msec)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0V53VM 093R5Y 93R5Y

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
