Dell 1610HD Network Projector

Dell Part #/MPN: 1610HD

DiscTech Item #: DEL-1610HD-BN-OE

  • Special Order - Call for Lead Time
    Special Order - Call for Lead Time

    This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Interface Types: Ethernet RJ45, HDMI, S-Video

Electrical Interface: HDMI 1.4 - 10Gbps

Wattage/VA: 280W

Voltage: 110-240V Multi

Resolution: 1280x800

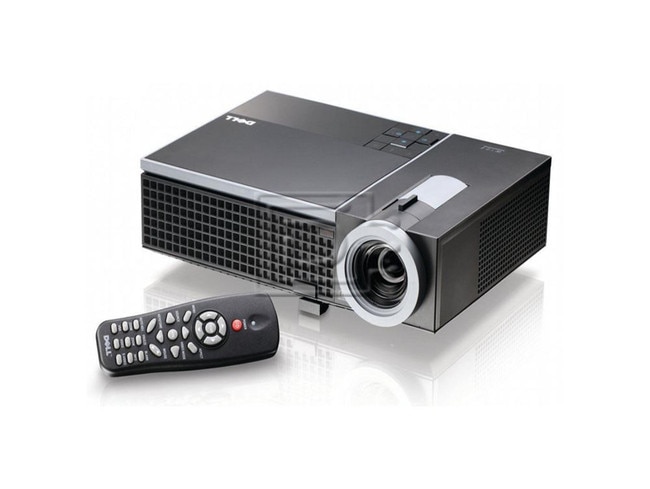

Dell 1610HD Value Series Multimedia Projector - Brand New

Dell 1610HD Value Series Multimedia Projector - Brand New

Perfect for Education, Small/Medium Businesses, and Network Administrators

Value You Can See
The high-definition-ready Dell 1610HD Value Series Projector offers advanced features and network manageability at a price that respects your budget.

Images Leap From the Screen
From classrooms to boardrooms, the Dell 1610HD Standard Series projector delivers brilliant value that you can literally see.

  • Exceptional Brightness & Contrast: 3,500 ANSI lumens (max) brightness and high 2100:1 typical (full on/full off) contrast ratio help to ensure that your presentations retain their impact in a wide variety of rooms and ambient-light conditions.
  • Riveting Resolution: WXGA (1280 x 800) native resolution with native 16:10 aspect ratio offers superb image quality with up to 30 percent more pixels than XGA (1024 x 768)1 and high-definition viewing at 720p.
  • Dazzling Colors: Equipped with DLP® and BrilliantColor™ technology, the 1610HD Standard Series projector will amaze audiences with deep, dazzling colors and sharp image quality.
  • Big-Picture View: A maximum diagonal projection screen size of 362" (9.19 m) from 32.81 ft (10 m) away helps ensure that all your ideas play on a grand stage.

Easy to Manage & Control
From built-in wired networking to flexible setup and maintenance, the Dell 1610HD Standard Series projector puts control in the hands of presenters and administrators alike.

  • Remote Management: Using RJ45 connectivity, administrators can remotely control power (on/off), perform maintenance, update firmware and set up email alerts.
  • Flexible Connectivity: The 1610HD Standard Series projector offers multiple connectivity options to enhance multimedia presentations, including a high-definition multimedia interface (HDMI) connector, a microphone port and dual VGA — in connections that help enable seamless transitions between presenters.
  • Closed-Captioning: The 1510X supports closed captioning through the S-Video / Composite video port that allows users
    • with hearing disabilities to read the audio portion of select video and TV programs as on-screen text.
    • Versatile Setup: Desktop and ceiling-mount (front and rear projection) options offer enhanced versatility during projector setup.

    Thoughtful Design Features
    The Dell 1610HD Standard Series projector offers thoughtful design features and comprehensive support options that make it easy to enjoy a low total cost of ownership.

    • Power-Saving Design: The EU energy-related products (ErP)-compliant 1610HD consumes less than 0.5W of electricity in standby mode.
    • Long Lamp Life: Enjoy added cost savings with a long lamp life of up to 3,000 hours (Normal Mode) or up to 4,000 hours (Eco Mode)
    • Built-In Security: Password protection and a security-cable slot (security cable sold separately) help guard against mischief and thwart any unauthorized access to the projector.

Dell Network Projector – 1610HD
Brightness3500 ANSI Lumens (Max.)
Contrast Ratio2100:1 Typical (Full On / Full Off)
ResolutionWXGA (1280 x 800)
Uniformity85% Typical (Japan Standard - JBMA)
Projection LensF-Stop: F/2.4~2.66
Image Size92.20 ~ 919.48 cm (36.3" ~ 362") (diagonal)
Projection Distance1.2m ~ 10m
Set Up3D - Enabled
LampLife Cycle
  • Up to 3000-hour Normal Mode
  • Up to 4000-hour Eco-Mode
  • Type
  • Philips 225W User-Replaceable
  • Diagonal Screen Size36.3” ~ 362” (0.92m ~ 9.19m)
    Crestron Room view CompatibleYes
    Keystone CorrectionVertical: +40° / -35°
    Horizontal: N/A
    Audio and SpeakersMultimedia Audio: 8W Speaker

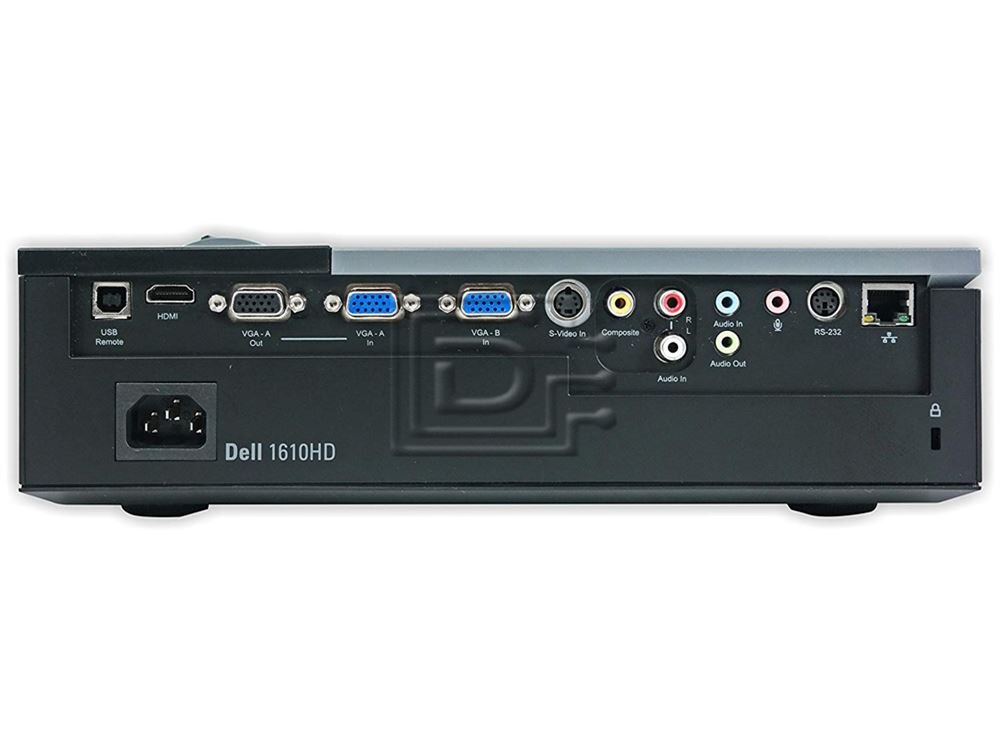

    ConnectivityPower: AC power input socket
    Computer Input: two D-sub for analog/RGB component, HDTV input signals
    Computer Output: one 15-pin D-sub
    Video Input: one composite video RCA and one S-video
    USB Input: one USB slave for remote support and firmware upgrade
    Audio input: one phone jack (Diameter 3.5mm) and one parir of RCA connector; one microphone input
    HDMI Input: one HDMI 1.3 (HDCP compliant)
    RS232: One mini-DIN RS232 for wired remote projector control from PC
    Video CompatibilityS-Video/Composite Video: NTSC [J, M, 4.43, supports Closed Captioning (CC1~CC4)], PAL (B, D, G, H, I, M, N, Nc, 60), SECAM (B, D, G, K, K1, L) Component Video (via VGA) & HDMI (HDCP Compliant) - 480i/p, 576i/p, 720p, 1080i/p PC (VGA, HDMI): Refer to 3.10 Computer Compatibility Modes
    Dimensions (W x D x H)29.65 x 20.2 x 8.79 cm ± 1 mm (11.68" x 7.96" x 3.46" ± 0.04")
    Weight5.2 lbs (2.36kg)
    Universal AC 100-240V 50-60Hz with PFC input
    Power Consumption Operational:
    Normal mode: 287W ± 10% @ 110Vac (network on)
    Eco mode: 219W ± 10% @ 110Vac (network on)
    Power saving mode: ≤15W (network on, fan speed at min)
    Standby mode: ≤0.5W (network & VGA OUT off)
    Noise Outout:
    35 dB(A) Normal Mode
    32 dB(A) Eco-Mode
    EnvironmentalOperating temperature:
    5°C - 35°C (41°F - 95°F)
    80% (maximum)

    Storage temperature:
    0°C - 60°C (32°F - 140°F)

    90% (maximum)

    Shipping Temperature:
    -20°C - 60°C (-4°F - 140°F)
    90% (maximum)
    What is in boxPower Cable
    VGA Cable
    Carrying case
    CD User’s Guide
    Remote Control with 2 AAA Batteries
    Quick Setup guide & Product Information guide

    Click here to view the manufacturer's item description/brochure

    Weight: 14 lb

    Brand New

    Condition Levels Explained

    The product is brand new.
