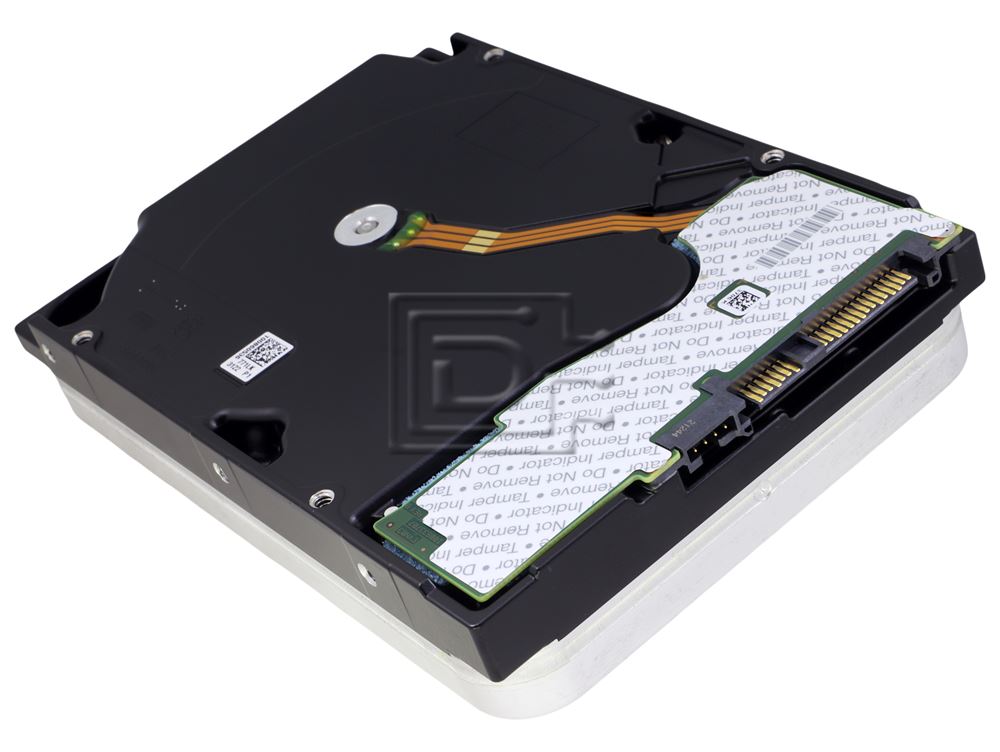

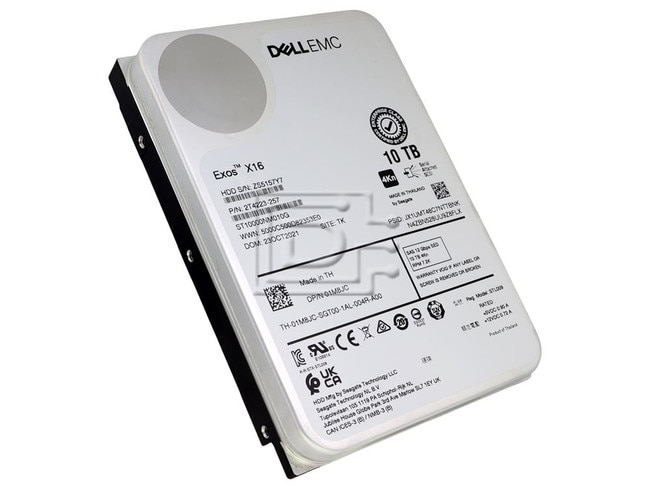

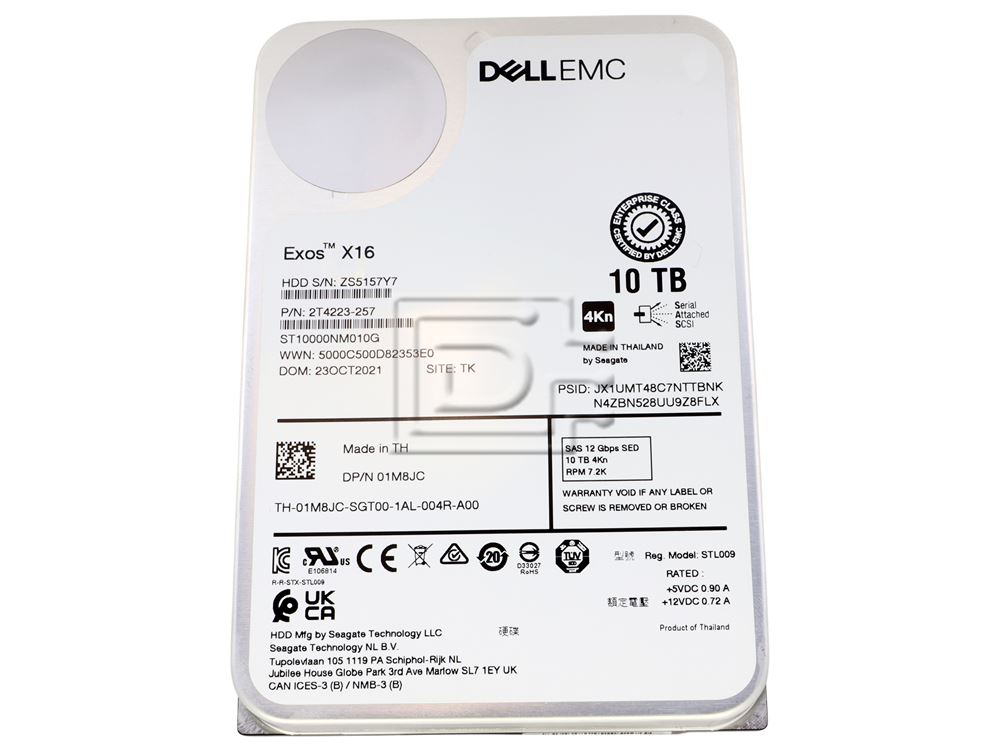

Dell 1M8JC 10TB 4Kn SED-FIPS SAS 12Gbps 3.5" LFF 7.2K RPM Hard Drive Seagate ST10000NM010G
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:8Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 10TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 256MB |
Description
Dell Enterprise Plus 1M8JC Seagate ST10000NM010G 10TB 3.5" LFF 12Gbps 7.2K RPM Enterprise 4Kn SED-FIPS SAS Hard Drive - Brand New
Dell 1M8JC / Seagate ST10000NM010G 10TB / 10000GB 3.5" LFF / Large Form Factor 12.0 Gb/s 7200 RPM Enterprise 4Kn / 4K Native SED / Self Encrypting FIPS / Federal Information Processing Standards SAS / Serial Attached SCSI HDD / Hard Drive - Brand New Enterprise Plus OEM
Maximum Storage Capacity for Highest Rack Space Efficiency
- 10TB per drive 1 for 25% more petabytes per rack
- Industry's lowest power and weight for optimum data center TCO
- Forged, wrought-aluminum base and a helium sealed-drive design with uniform density and no porosity
- Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
- Digital environmental sensors for measuring internal humidity, pressure and temperature, helping to ensure high reliability, performance and quality
- Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
- Proven enterprise-class reliability backed by 2.5M-hr MTBF
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
DPN: 1M8JC / 01M8JC
Compatibility
This drive is compatible with any server that accepts 3.5inx1.0in SAS Drive.
Specifications
| Specifications | |
|---|---|
| Features | |
| Reliability/Data Integrity | |
| Performance | |
| Power Consumption | |
| Environmental | |
| Physical | |
| Capacity | 10TB/10,000GB |
| SED-FIPS/Common Criteria Model (4Kn) | ST10000NM010G |
| Helium Sealed-Drive Design With Wide Weld | Yes |
| Digital Environmental Sensors | Yes |
| Protection Information (T10 DIF) | Yes |
| SuperParity | Yes |
| PowerChoice™ Power/Performance Technology | Yes |
| Low Halogen/Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| Mean Time Between Failures (MTBF, hours) | 2.5 Million |
| Reliabilility Rating @ Full 24x7 Operation (AFR) | 0.35% |
| Non-recoverable Read Errors per Bits Read, Max | 1 sector per 10E15 |
| Power-On Hours | 8760 |
| 512e Sector Size (Bytes per Sector) | 512, 520, 528 |
| 4Kn Sector Size (Bytes per Sector) | 4096, 4160, |
| Spin Speed(RPM) | 7200RPM |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s) | 254MB/s |
| Random Read/Write 4K QD16 WCD (IOPS) | 170, 370 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| Rotational Vibration @ 1500Hz (rad/s) | 12.5 |
| Idle A (W) Averge | 5.5W |
| Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% | 9.0 |
| Max Operating Power, Random Read 4K/16Q (W) | 9.4 |
| Power Supply Requirements | +12 V and +5 V |
| Temperature, Operating (°C) | 5°C – 60°C |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 2.27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 70/40Gs |
| Shock, Nonoperating, 1ms/2ms (Gs) | 250 |
| Height (mm/in, max) | 26.11mm/1.028in |
| Width (mm/in, max) | 101.85mm/4.010in |
| Depth (mm/in, max) | 147.0mm/5.787in |
| Weight (g/lb) | 650g/1.433lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1M8JC 01M8JC
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
