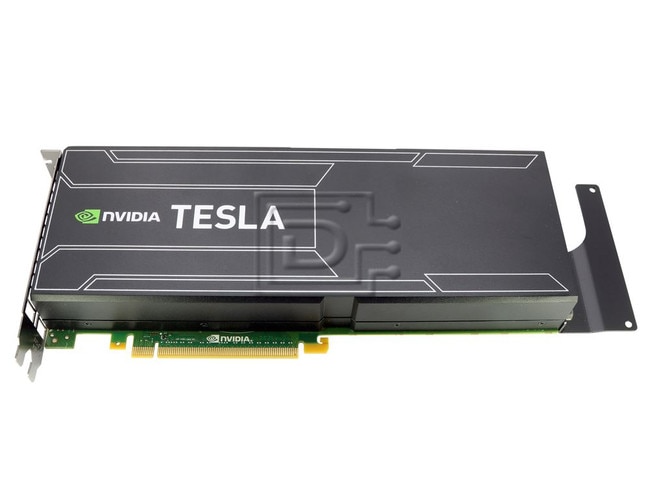

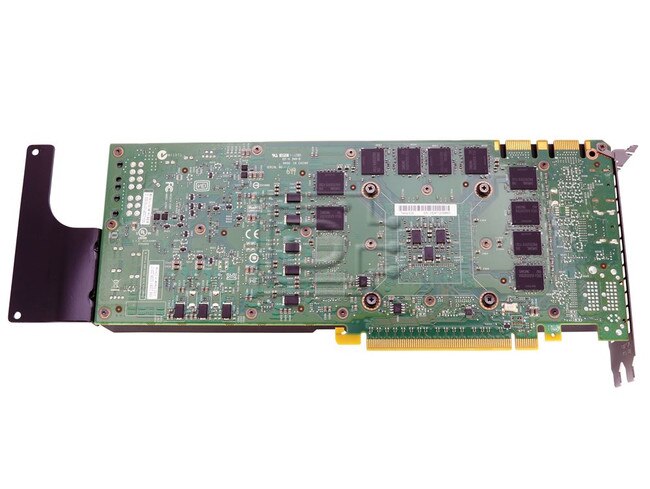

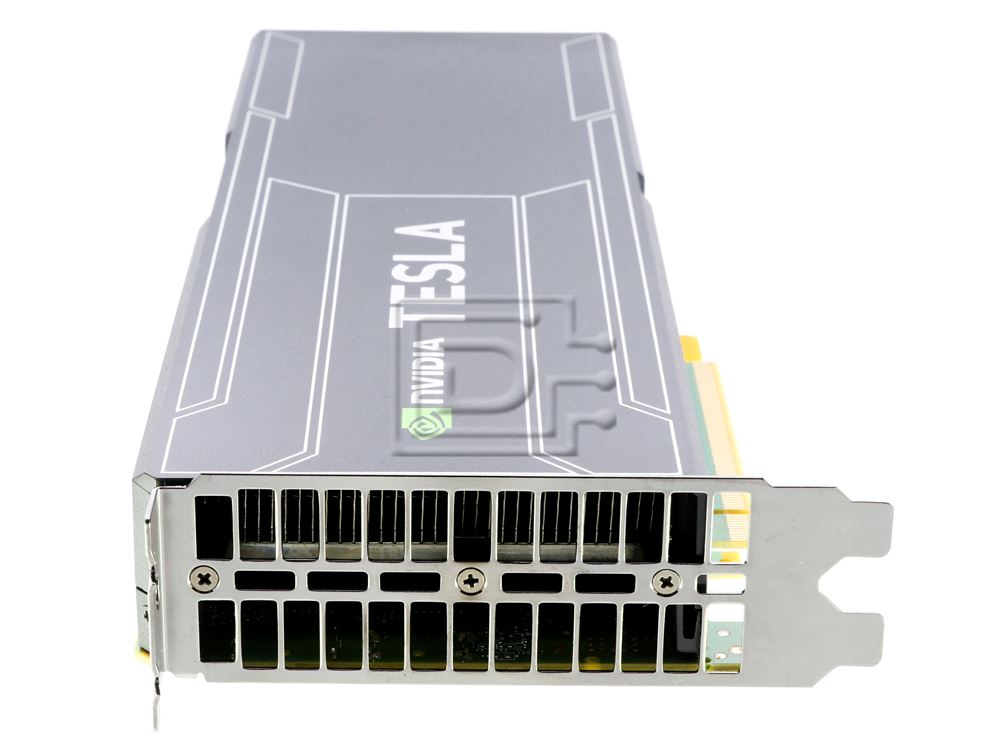

Dell 1NTYF / NVIDIA Tesla K20 900-22081-0110-000 5GB GDDR5 PCIe GPU Accelerator Graphic Card

NVIDIA Part #/MPN: K20

DiscTech Item #: NVI-K20-RF-OE-DEL


Item is currently out of stock

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Item is currently out of stock

Interface Types: PCIe

Dell 1NTYF / NVIDIA Tesla K20 900-22081-0110-000 5GB GDDR5 PCIe GPU Accelerator Graphic Card - Refurbished

Dell 1NTYF / NVIDIA Tesla K20 900-22081-0110-000 5GB GDDR5 PCIe GPU Accelerator Graphic Card - Refurbished

Alt PN: 20 900-22081-0110-000, NVD-20 900-22081-0110-000, 1NTYF, 01NTYF


NVIDIA Tesla K-series GPU Accelerators are based on the NVIDIA Kepler compute architecture and powered by CUDA - the world’s most pervasive parallel computing model. The innovative Kepler compute architecture design includes innovative technologies like Dynamic parallelism and Hyper-Q for boosted computing performance, higher power efficiency and record application speeds. The Tesla K20 GPU Accelerator is designed to be the performance leader in double precision applications and broader supercomputing market with up to 1.17 teraflops peak double precision performance. Try the NVIDIA Tesla K20 GPU accelerator and speed up your application by up to 10X.

  • SMX DESIGN - SMX (streaming multiprocessor) design delivers up to 3x more performance per watt compared to the SM in Fermi*. It also delivers one petaflop of computing in just ten server racks. (*Based on DGEMM performance: Tesla M2090 = 410 gigaflops, Tesla K20 (expected) > 1000 gigaflops)
  • DYNAMIC PARALLELISM CAPABILITY - Dynamic Parallelism capability enables GPU threads to automatically spawn new threads. By adapting to the data without going back to the CPU, it greatly simplifies parallel programming. Plus it enables GPU acceleration of a broader set of popular algorithms, like adaptive mesh refinement (AMR), fast multipole method (FMM), and multigrid methods.
  • HYPER-Q - Hyper-Q feature enables multiple CPU cores to simultaneously utilize the CUDA cores on a single Kepler GPU. This dramatically increases GPU utilization, slashes CPU idle times, and advances programmability—ideal for cluster applications that use MPI.
  • ECC MEMORY ERROR PROTECTION - Meets a critical requirement for computing accuracy and reliability in data centers and supercomputing centers. Both external and internal memories are ECC protected in Tesla K20 and K20X.
  • L1 AND L2 CACHES - Accelerates algorithms such as physics solvers, ray-tracing, and sparse matrix multiplication where data addresses are not known beforehand.
  • ASYNCHRONOUS TRANSFER WITH DUAL DMA ENGINES - Turbocharges system performance by transferring data over the PCIe bus while the computing cores are crunching other data.
Model Number900-22081-0110-000
Alt Model Number1NTYF
General Information
ManufacturerNVIDIA Corporation
Product NameTesla K20 Graphic Card
Technical Information
SMX Engine
Dynamic Parallelism
CUDA Technology
GPU Boost
Processor & Chipset
Chipset ManufacturerNVIDIA
Chipset LineTesla
Chipset ModelK20
Number of GPUs1
GPU Clock706 MHz
Number of Stream Processors2496
Standard Memory5 GB
Memory Speed2600 MHz
Memory TechnologyGDDR5
Bus Width320 bit
Physical Characteristics
Cooler TypePassive Heat Sink
System RequirementsOperating System(s):
  • Linux
  • Windows
  • Platform SupportedPC

    ROHS Compliant

    Alternate MPNs: 1NTYF 01NTYF 900-22081-0110-000

    Weight: 3 lb

    Warranty: 1 Year DiscTech
