Dell 2314T Touch Monitor

Dell Part #/MPN: 2314T

DiscTech Item #: DEL-2314T-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: USB 2.0, USB 3.0 3.1 3.2, DisplayPort, DMS-59, HDMI, VGA

Electrical Interface: USB 3.2 G1x1 - 5Gbps

Resolution: 1920x1080

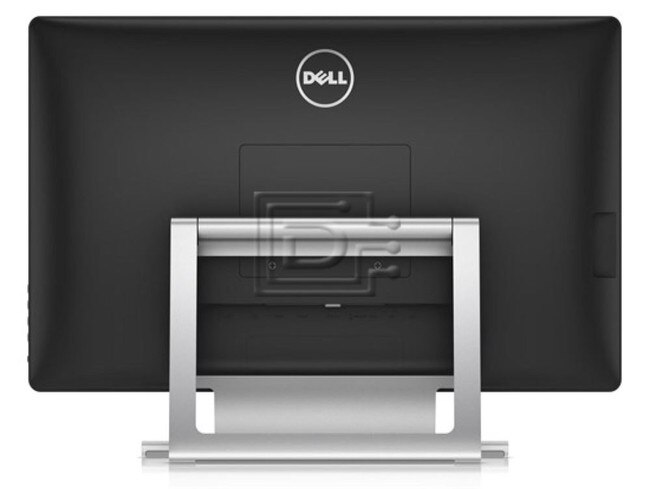

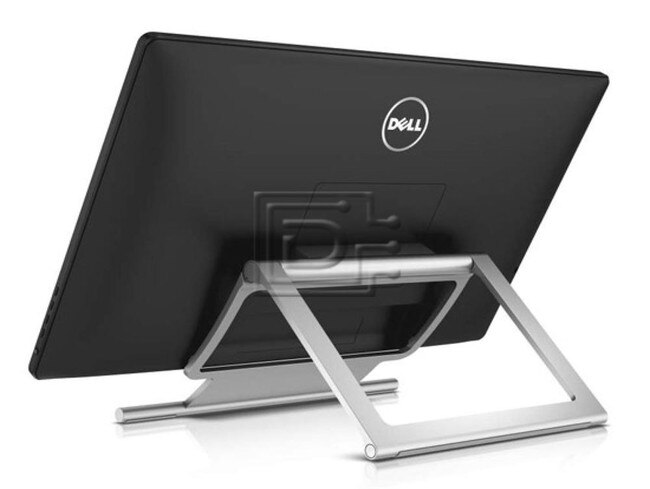

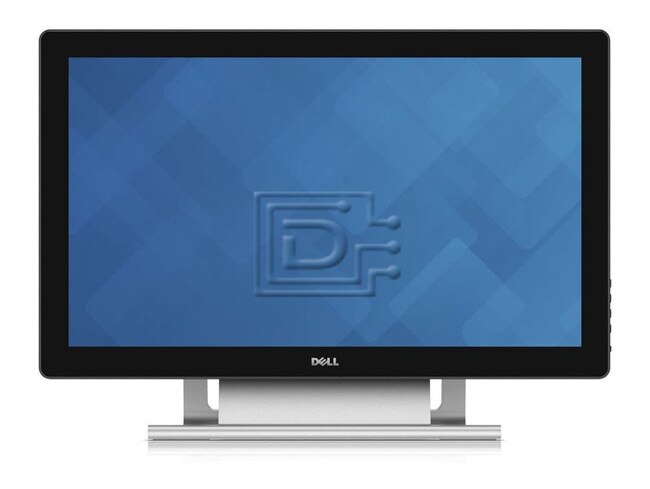

Dell 2314T / P2314T 23-Inch Touch Monitor - Brand New

Dell 2314T / P2314T 23" Touch Monitor - Brand New

A boldly reimagined touch experience
Superb picture quality with natural and intuitive touch, myriad connectivity options and guarantees to back them up.

Engaging touch experience
Work smart and keep your content at your fingertips with your Dell touch monitor optimised for Windows 8.

  • Enjoy two-handed control with an enhanced touch experience that recognises 10 touch-points at once, enabling fast, efficient application and game control across the smooth, edge-to-edge glass.
  • Screen quality comes to life with the amazing clarity and pin-sharp details of Full HD 1920 x 1080 resolution; the excellent picture quality, with deep blacks and bright whites, from an 8 milion:1 dynamic contrast ratio; clean, fluid motion from a fast 8ms (grey-to-grey) response time; and up to 270 cd/m² brightness.
  • Boost collaboration and usability with the ultra-wide 178°/178° viewing angle while gaining optimal application and game control as well as viewing comfort with the adjustable stand.

Seamless connectivity
Transform your smartphone and tablet devices into glorious, widescreen colour while charging them at the same time through the MHL port when you display your smartphone/tablet content directly on the P2314T touch monitor. Plus, the integrated VGA, USB, DP and HDMI ports enable efficient connectivity to a whole range of peripheral devices.

VESA compatibility
Explore optional VESA-compatible mounting choices, including the Dell Single Monitor Arm (MSA14) or a wall-mounting kit (both options sold separately), for enhanced viewing flexibility.

Great for home and office
Ideal for work and play, your P2314T is designed for entertainment and browsing the internet on your XPS system at home, or for multimedia applications and team projects at the office on such Dell systems as Latitude or OptiPlex as well as handheld mobile devices.
For instance, connect your smartphone or tablet to the monitor through the MHL port so the rest of your workgroup can gather together to see the latest app you've created on a big 27-inch screen with an ultra-wide viewing angle.

Energy-conscious design
With 17W normal-operation power consumption (typical) and less than 0.5W in active-off mode, the P2314T can help keep energy costs down. In addition, the PowerNap feature enables you to either dim the monitor to the minimum brightness level or put it into sleep mode when it is not in use.

You can maximise the versatility and performance of your P2314T with extras like a single monitor arm and a wireless keyboard and mouse combo. You’ll find just what you need at

  • Dell Single Monitor Arm (MSA14)
    Enjoy great viewing flexibility and adjust your monitor any way you want.
  • Dell Wireless Keyboard and Mouse (KM632)
    Free yourself from cable clutter with a wireless keyboard and mouse combo.

Dell 23 Touch Monitor: P2314T
Part#2314T / P2314T
Diagonally Viewable Size58.4 cm (23”)
Horizontal509.18 mm (20.05”)
Vertical286.42 mm (11.28”)
Maximum Resolution1920 x 1080 at 60 Hz
Aspect Ratio16:9
Pixel Pitch0.265 mm
Brightness270 cd/m(typical)
Color SupportColor Gamut (typical): 83%(CIE 1976)
Color Depth: 16.7 million colors
Contrast Ratio1,000:1 (typical)
8 million:1 (Dynamic Contrast Ratio)
Max Viewing Angle: (typical)(178° vertical / 178° horizontal)
Response Time: (typical8ms (gray to gray)
Panel TypeIn-plane switching
Panel BacklightLED
Touch technologyProjected capacitive system
Sensor Stack Thickness0.5 mm
Cover Glass Thickness1.1 mm
Touch methodFingers and thin gloves
Touch Point10 touch-points
Response time<10 ms
Supporting OSWindows 8 Certified
Tiltup to 60°
Flat Panel Mount InterfaceVESA Mount 100mm x 100mm (Wall Mount sold seperately)
Connectors (P2314T)DisplayPort 1.2
USB upstream port (for touch enablement)
USB 2.0 / 3.0 downstream port
Audio line-out
SecuritySecurity Lock Slot
HeightWith Stand (Extended ~ Compressed)
412.70 mm ~ 216.40 mm (16.25" ~ 8.52")
Without Stand (Extended)
348.10 mm (13.70”)
WidthWith Stand
569.90 mm (22.44”)
Without Stand
569.90 mm (22.44”)
DepthWith Stand (Extended ~ Compressed),br>421.30 mm ~ 80.90 mm (16.59” ~ 3.19”)
Without Stand
42.20 mm (1.66”)
WeightWith Packaging
8.98 kg (19.76 lbs)
Without Packaging
7.10 kg (15.62 lbs)
Monitor Only (Without Stand)
4.82 kg (10.60 lbs)
PowerAC Input voltage/frequency/Current (typical)
100 VAC to 240 VAC / 50 Hz or 60 Hz + 3 Hz / 1.5 A (max)
Consumption (normal operation, typical)
17 W
Consumption (Active-off mode)
<0.5 W
What’s In The BoxMonitor with stand
Power cable
Power adapter
HDMI cable
USB 3.0 cable( enables touch screen function on the monitor)
Screen cleaning cloth
Velcro strap
Quick start guide
Drivers and documentation media
Product and safety information guide

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: P2314T
